Ecliptek发布轻薄型的无源SMD晶振编码曝光EA5070MA24-16.000M

返回列表 来源:统一电子 查看手机网址
扫一扫!Ecliptek发布轻薄型的无源SMD晶振编码曝光EA5070MA24-16.000M扫一扫!
浏览:- 发布日期:2023-04-27 14:51:27【

Ecliptek发布轻薄型的无源SMD晶振编码曝光EA5070MA24-16.000M,这是一家专注于向市场提供高质量频率元器件产品的品牌制造商,公司的主要目标是通过无与伦比的客户服务以及对客户,员工长期承诺稳步发展的企业,同时,ECLIPTEK晶振公司致力于保护环境,作为负责任的企业公民。Ecliptek一直在努力解决电子行业的RoHS和无pb合规问题。我们的目标是逐步消除不兼容产品的使用,为我们的客户提供符合要求的替代产品,以及发布的生命周期的结束,从而提供足够的时间来批准兼容的产品。

EA5070 11Ecliptek发布轻薄型的无源SMD晶振编码曝光EA5070MA24-16.000M,Ecliptek公司将不断提高质量管理体系的有效性,及时向我们的内部和外部客户提供无缺陷的SMD晶振产品和服务。Ecliptek已经实施了中国对危险物质(RoHS)的限制措施,以回应国际社会对铅(铅)和其他有害物质在电子部件和组件制造中所使用的有害物质的担忧。

Part Number Cut/Mode Package Description Frequency Stability Operating Temperature Range
EA5070KA20-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070KA22-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070KA24-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070KA27-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070KA30-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070KAS-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm 0°C to +70°C
EA5070LA12-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA14-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA16-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA18-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA20-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA22-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA24-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA27-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LA30-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070LAS-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -20°C to +70°C
EA5070MA12-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA14-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA16-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA18-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA20-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA22-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA24-16.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA27-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MA30-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070MAS-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±15ppm -40°C to +85°C
EA5070KA12-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA14-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA16-6.000M AT-Cut Fundamental  Ecliptek 无源SMD晶振 Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA18-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA20-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA22-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA24-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA27-6.000M AT-Cut Fundamental   Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KA30-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070KAS-6.000M AT-Cut Fundamental   Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm 0°C to +70°C
EA5070LA12-6.000M AT-Cut Fundamental   Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA14-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA16-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA18-6.000M AT-Cut Fundamental   Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA20-6.000M AT-Cut Fundamental  Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA22-6.000M AT-Cut Fundamental Ecliptek SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA24-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA27-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LA30-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070LAS-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -20°C to +70°C
EA5070MA12-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -40°C to +85°C
EA5070MA14-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -40°C to +85°C
EA5070MA16-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -40°C to +85°C
EA5070MA18-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -40°C to +85°C
EA5070MA20-6.000M AT-Cut Fundamental SMD Ceramic 5.0mm x 7.0mm ±10ppm -40°C to +85°C

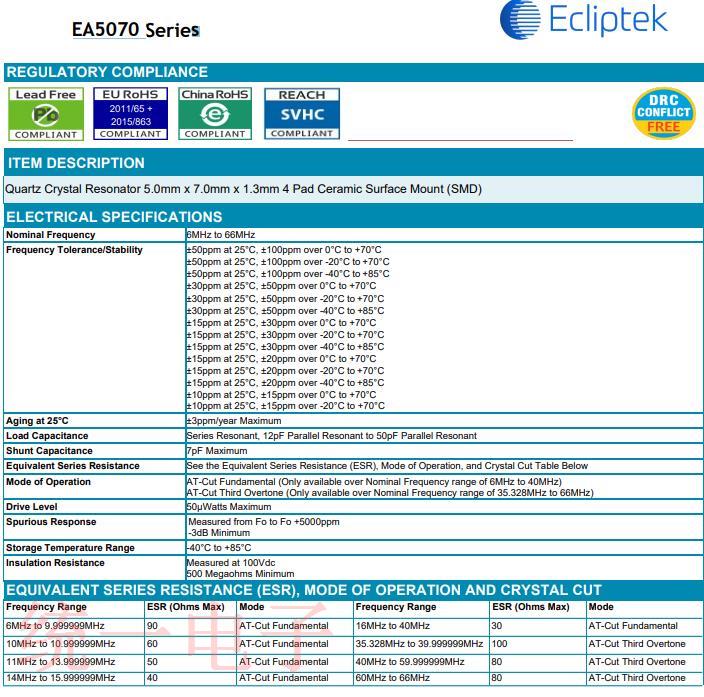

伴随着电子产品的推陈出新,越来越智能化必然成为未来的大趋势,为了满足当下的市场需求,Ecliptek结合自身的产品线和市场需求,推出了编码EA5070MA24-16.000M,型号EA5070,SMD晶振,石英晶体谐振器5.0mm x 7.0mm x 1.3mm 4衬垫陶瓷表面安装(SMD),频率为16MHZ,采用先进生产技术匠心制作而成,比较适合用于无线网络,智能家居,无线设备等领域.
