石英晶体ABS07-32.768KHZ-7-1-T是物联网设备应用的解决方案

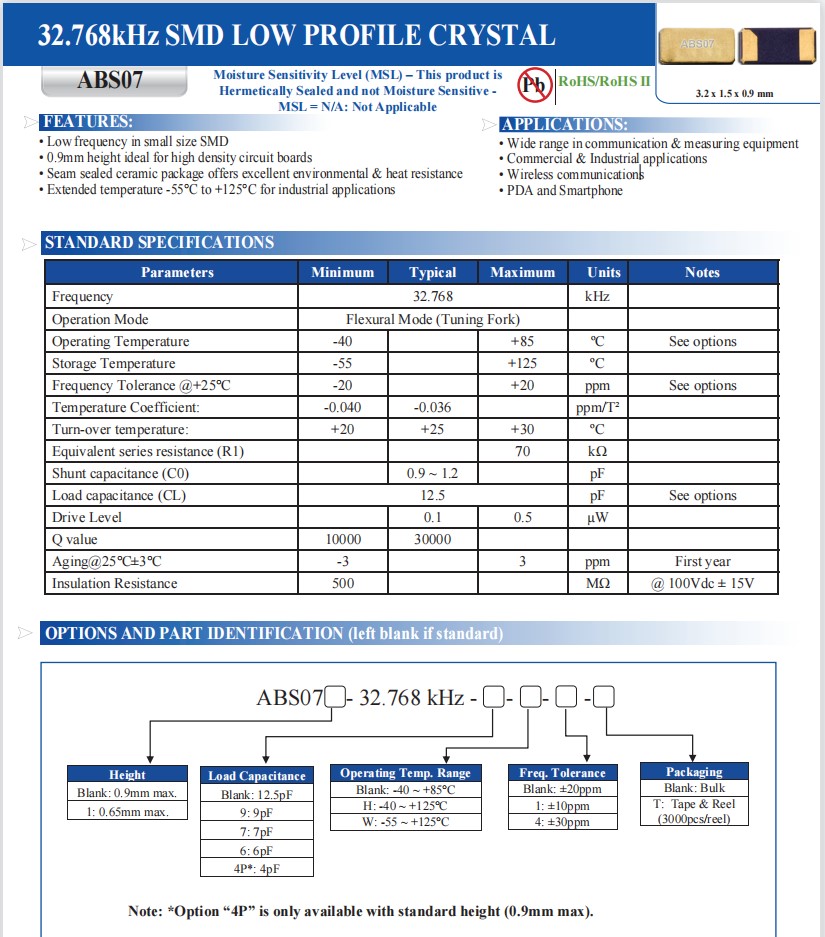

Abracon晶振ABS07系列是一款小体积尺寸3.2x1.5x0.9毫米音叉石英晶体，一直是广泛应用于从工业和医疗电子产品到消费物联网设备的工厂解决方案。随着下一代MCU的广泛使用，对低电镀负载(低至4.0pF)版本的ABS07的需求越来越大。与此同时，业界不断将最终产品设计小型化的趋势已经让位于对2.0x1.2x0.6mm音叉晶振的需求，这种需求以Abracon的ABS06系列产品为代表。特别是Abracon的ABS06-107在4.0pF电镀负载下引起了广泛的兴趣。它是低电镀负载与优化等效串联电阻(ESR)性能的独特组合，非常适合节能型gorilla芯片。
石英晶体ABS07-32.768KHZ-7-1-T是物联网设备应用的解决方案，Abracon总部位于德克萨斯州奥斯汀市外，通过提供创新的高性能频率控制和时序、电感和连接以及RF和天线解决方案，帮助全球客户设计下一代产品。Abracon晶振专注于技术专长、卓越服务，并通过全球分销网络提供可靠的电子元件，从而加快客户的上市时间。Abracon以服务、质量和技术知识为公司的核心，在数据通信、运输、工业、医疗、航空航天、国防等市场中推动创新的互联技术。
然而，1.6x1.0x0.5mm ABS05系列可以轻松取代当前设计中更大尺寸的ABS06和ABS07系列谐振器，而不会牺牲性能要求或增加额外的设计压力。它还可以进一步减少新设计中消耗的表面积。ABS05器件采用最先进的调谐技术，有效振荡器环路负载电容为4.0pF，设置容差为20ppm和25ppm。此外，ESR经过优化，最大阈值保持在90kω，与最新的节能MCU和其它gorilla芯片组配合使用时，能够稳定工作。此外，由于最近的供应链问题，设计师可能希望在他们的设计中考虑一个全面的、无所不包的土地模式。这种方法支持在同一布局内使用ABS07、ABS06或ABS05封装来满足设计要求，从而提供了设计灵活性。应用程序：物联网，产业的，卫生保健，智能卡，超薄设备，可穿戴设备，便携式设备。石英晶体ABS07-32.768KHZ-7-1-T是物联网设备应用的解决方案
| 原厂编码 | 品牌 | 型号 | 系列 | 频率 | 包装/封装 |
| ABS07-32.768KHZ-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | 石英晶体 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon晶振 | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon晶振 | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon晶振 | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon晶振 | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T |
艾博康晶振 |
ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon晶振 | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon晶振 | ABS07L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T |
Abracon晶振 |
ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon晶振 | ABS06L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon晶振 | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon晶振 | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon晶振 | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon晶振 | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon晶振 | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | 贴片晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
