QTC25,QTC2533.0000FBT3I30R,2520mm,33M,Quarztechnik车载晶振

频率：33.000MHz

尺寸：2.5x2.0x0.6mm

QTC25,QTC2533.0000FBT3I30R,2520mm,33M,Quarztechnik车载晶振，德国进口晶振，Quarztechnik晶振，夸克晶振，型号：QTC25，编码为：QTC2533.0000FBT3I30R，频率为：33.000MHz，小体积晶振尺寸：2.5x2.0x0.6mm超小型封装，四脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振，SMD晶振，陶瓷封装和金属盖确保高可靠性，带金属盖的接缝密封陶瓷封装确保了高精度和可靠性，工作温度范围：-40℃至+85℃。具有具有紧密的公差和稳定性，超小型，轻薄型，高精度，高性能，高品质，高质量，高可靠性，耐热及耐环境特点。2520晶振，适用于：小型薄型设备，可穿戴设备，高密度应用，汽车电子，调制解调器、通信设备，测试设备，PMCIA，无线应用，无线蓝牙，智能家居，数码电子等。

订购热线：0755-2783-7683

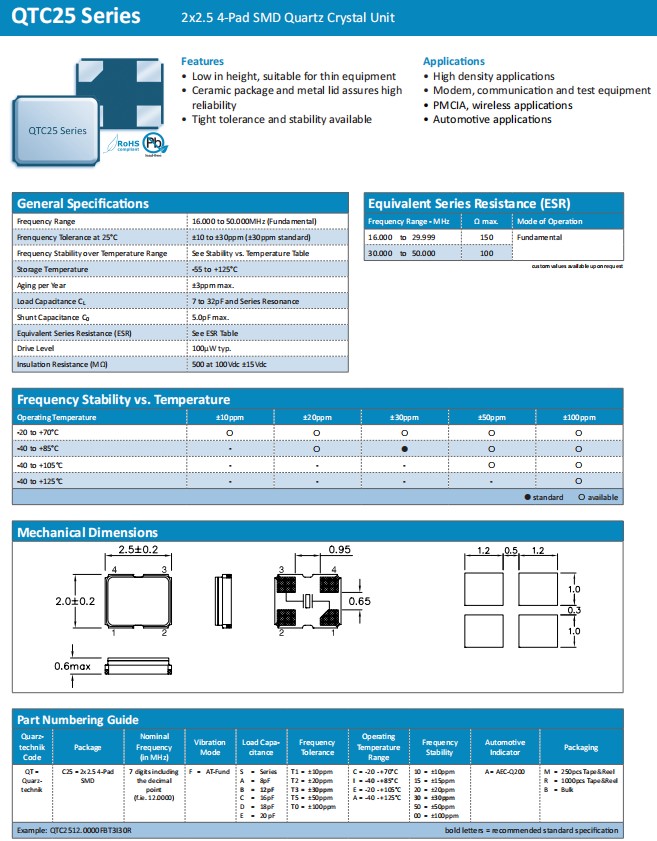

QTC25,QTC2533.0000FBT3I30R,2520mm,33M,Quarztechnik车载晶振, 参数表

Frequency Range

33.000MHz

Frenquency Tolerance at 25°C

±10 to ±30ppm (±30ppm standard)

Frequency Stability over Temperature Range

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Aging per Year

±3ppm max.

Load Capacitance CL

7 to 32pF and Series Resonance

Shunt Capacitance C0

5.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

100μW typ.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

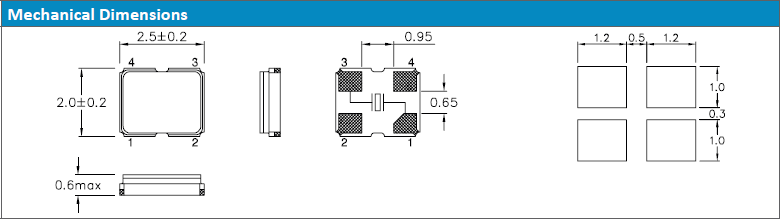

QTC25,QTC2533.0000FBT3I30R,2520mm,33M,Quarztechnik车载晶振, 尺寸图

QTC25,QTC2533.0000FBT3I30R,2520mm,33M,Quarztechnik车载晶振

产品特点：

外形尺寸：2.5x2.0x0.6mm

频率范围：16MHz~50MHz贴片晶振

高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性
应用程序
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用
汽车应用

晶振编码	频率	负载电容	精度	稳定性	工作温度范围
QTC7A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A10.0000FDT1I20M	10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.31818FDT1I20M	14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A19.6608FDT1I20M	19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A20.0000FDT1I20M	20.0 MHz石英晶振	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.2880FDT1I20M	12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A15.3600FDT1I20M	15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A18.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A24.5760FDT1I20M	24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A30.0000FDT1I20M	30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A40.0000FDT1I20M	40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A48.0000FDT1I20M	48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3216.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3218.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3220.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3224.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3225.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3227.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
