X1G0054910008,VG7050EFN差分晶振,EPSON寻呼机6G晶振

频率：100.000000 MHz

尺寸：7.0x5.0mm

X1G0054910008,VG7050EFN差分晶振,EPSON寻呼机6G晶振，日本进口晶振，EPSON爱普生株式会社，型号：VG7050EFN，编码为：X1G0054910008，频率为：100.000000 MHz，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，VCXO晶体振荡器，LV-PECL输出差分晶体振荡器，有源晶振，石英晶振，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低相位噪声，低电平等特点，能够轻易识别网络信号以及精确的处理双极信号。VG7050EFN贴片晶振被广泛应用于：通讯设备晶振、无线网络，蓝牙模块，物联网，机顶盒、光端机、安防设备、6G路由器，交换机、仪器仪表、光纤通信，GPS全球定位系统，寻呼机，移动电话等应用。

订购热线：0755-2783-7683

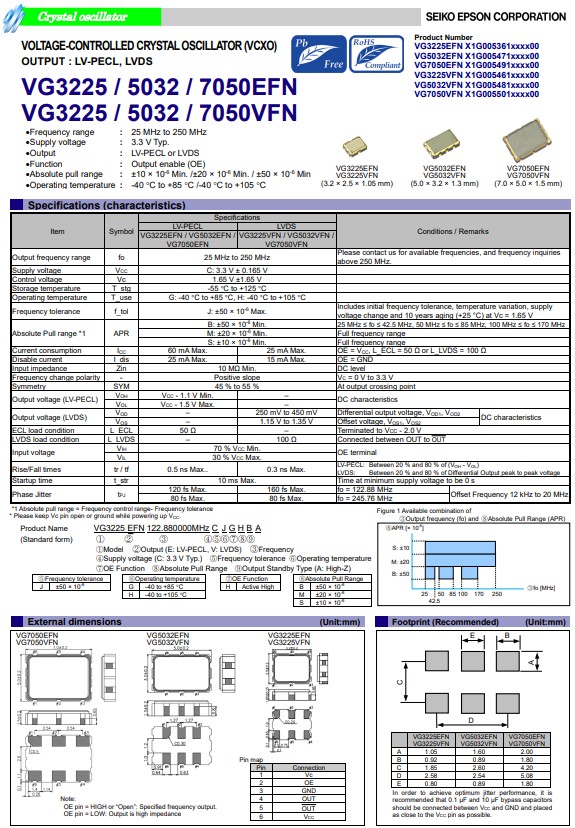

X1G0054910008,VG7050EFN差分晶振,EPSON寻呼机6G晶振 参数表

项目	Item	Symbol	LV-PECL	LVDS	Conditions / Remarks
			VG3225EFN / VG5032EFN /	VG3225VFN / VG5032VFN /
			VG7050EFN	VG7050VFN
Output frequency range		fo	25 MHz to 250 MHz		Please contact us for available frequencies, and frequency inquiries above 250 MHz.
Supply voltage		VCC	C: 3.3 V ± 0.165 V
Control voltage		Vc	1.65 V ±1.65 V
Storage temperature		T_stg	-55 °C to +125 °C
Operating temperature		T_use	G: -40 °C to +85 °C, H: -40 °C to +105 °C
Frequency tolerance		f_tol	J: ±50 × 10-6 Max.		Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging (+25 °C) at Vc = 1.65 V
			B: ±50 × 10-6 Min.		25 MHz ≤ fo ≤ 42.5 MHz, 50 MHz ≤ fo ≤ 85 MHz, 100 MHz ≤ fo ≤ 170 MHz
Absolute Pull range *1		APR	M: ±20 × 10-6 Min.		Full frequency range
			S: ±10 × 10-6 Min.		Full frequency range
Current consumption		ICC	60 mA Max.	25 mA Max.	OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω
Disable current		I_dis	25 mA Max.	15 mA Max.	OE = GND
Input impedance		Zin	10 MΩ Min.		DC level
Frequency change polarity		-	Positive slope		VC = 0 V to 3.3 V
Symmetry		SYM	45 % to 55 %		At output crossing point
Output voltage (LV-PECL)		VOH	VCC - 1.1 V Min.	–	DC characteristics
		VOL	VCC - 1.5 V Max.	–
Output voltage (LVDS)		VOD	–	250 mV to 450 mV	Differential output voltage, VOD1, VOD2		DC characteristics
		VOS	–	1.15 V to 1.35 V	Offset voltage, VOS1, VOS2
ECL load condition		L_ECL	50 Ω	–	Terminated to VCC - 2.0 V
LVDS load condition		L_LVDS	–	100 Ω	Connected between OUT to OUT
Input voltage		VIH	70 % VCC Min.		OE terminal
		VIL	30 % VCC Max.
Rise/Fall times		tr / tf	0.5 ns Max..	0.3 ns Max.	LV-PECL: Between 20 % and 80 % of (VOH - VOL)
					LVDS: Between 20 % and 80 % of Differential Output peak to peak voltage
Startup time		t_str	10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter		tPJ	120 fs Max.	160 fs Max.	fo = 122.88 MHz	Offset Frequency 12 kHz to 20 MHz
			80 fs Max.	80 fs Max.	fo = 245.76 MHz

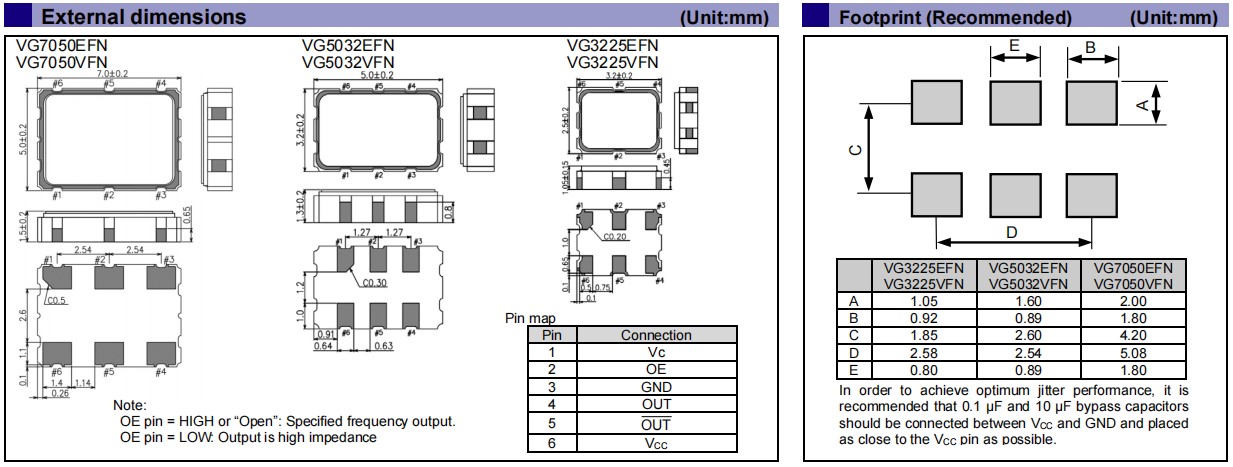

X1G0054910008,VG7050EFN差分晶振,EPSON寻呼机6G晶振 尺寸图

X1G0054910008,VG7050EFN差分晶振,EPSON寻呼机6G晶振

科技发展对差分晶振的使用日益增多，各大晶振品牌纷纷推出差分晶体振荡器，比如我们所熟悉的KDS晶振，京瓷晶振，NDK晶振，爱普生晶振，IDT晶振等知名品牌.我们都知道差分晶振除了有普通晶振有的功能外，最大的不同就是输出的方式是差分信号.

那么差分晶振的输出是什么意思呢？差分晶振输出是指输出差分信号使用2种相位彼此完全相反的信号，从而消除了共模噪声，并产生一个更高性能的系统.这种方式可输送高频，并具有抗噪音强，低抖动等特征.常见的差分输出为LVDS、HCSL、LV-PECL输出。

晶振编码	型号	频率	尺寸	输出	电压
X1G0045411003	VG7050EAN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045411005	VG7050EAN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045411007	VG7050EAN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045411009	VG7050EAN	156.250000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611003	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611005	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611007	VG7050ECN	622.080000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0054910002	VG7050EFN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910008	VG7050EFN	100.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910009	VG7050EFN	104.000000 MHz	5070石英晶振	LV-PECL	3.135 to 3.465 V
X1G0054910011	VG7050EFN	120.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910012	VG7050EFN	122.880000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910013	VG7050EFN	125.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910014	VG7050EFN	148.351600 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910015	VG7050EFN	148.351648 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910016	VG7050EFN	148.500000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910018	VG7050EFN	155.520000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910021	VG7050EFN	156.250000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910023	VG7050EFN	130.031746 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910030	VG7050EFN	160.000000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910601	VG7050EFN	204.800000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
X1G0054910603	VG7050EFN	245.760000 MHz	7.00 x 5.00 x 1.50 mm	LV-PECL	3.135 to 3.465 V
