HCSL差分晶体振荡器,NP3225SC-120.000MHz-NSC5082A,NDK以太网6G晶振
频率：120.000MHz
尺寸：3.2x2.5mm

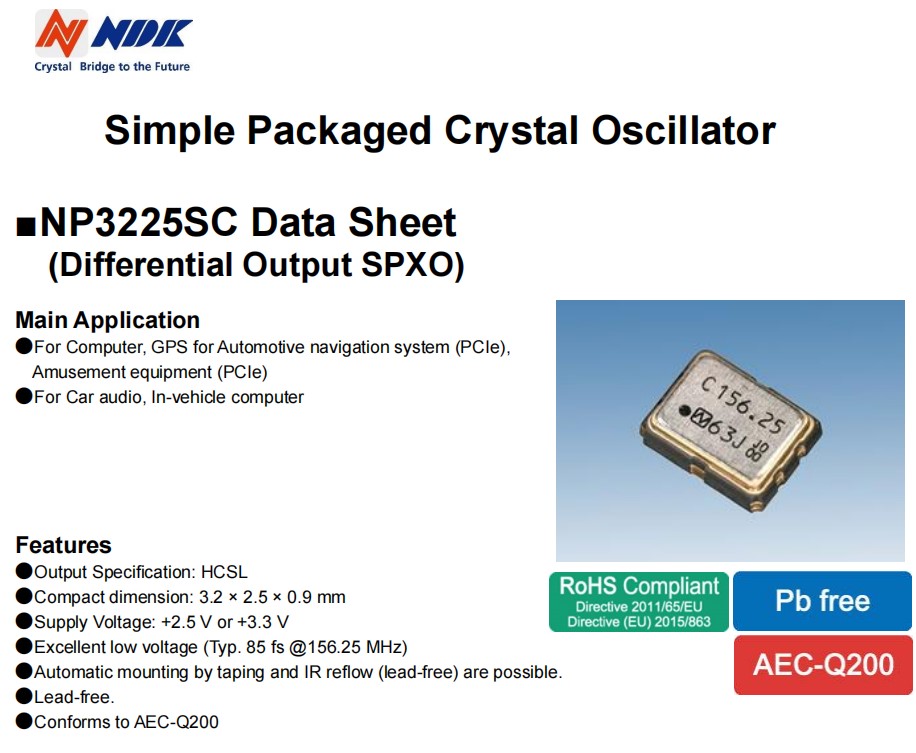

HCSL差分晶体振荡器,NP3225SC-120.000MHz-NSC5082A,NDK以太网6G晶振，日本进口晶振，日本电波工业株式会社，NDK晶振型号：NP3225SC，编码为：NP3225SC-120.000MHz-NSC5082A，频率：120.000MHz，小体积晶振尺寸3.2x2.5mm封装，六脚贴片晶振，HCSL输出差分晶振，SPXO晶体振荡器，电源电压：+2.5V或+3.3V，极好的低电压（典型值：85 fs@156.25 MHz），可以通过胶带和IR回流（无铅）进行自动安装。无铅。符合AEC-Q200。有源晶振，石英晶体振荡器，电源电压3.3V，具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低损耗，低相位噪声等特点。3225晶振应用于：用于计算机、用于汽车导航系统（PCIe）的GPS、娱乐设备（PCIe），车载音频、车载电脑，光纤通道，服务器、存储、路由器/交换机、以太网，安防设备等应用。

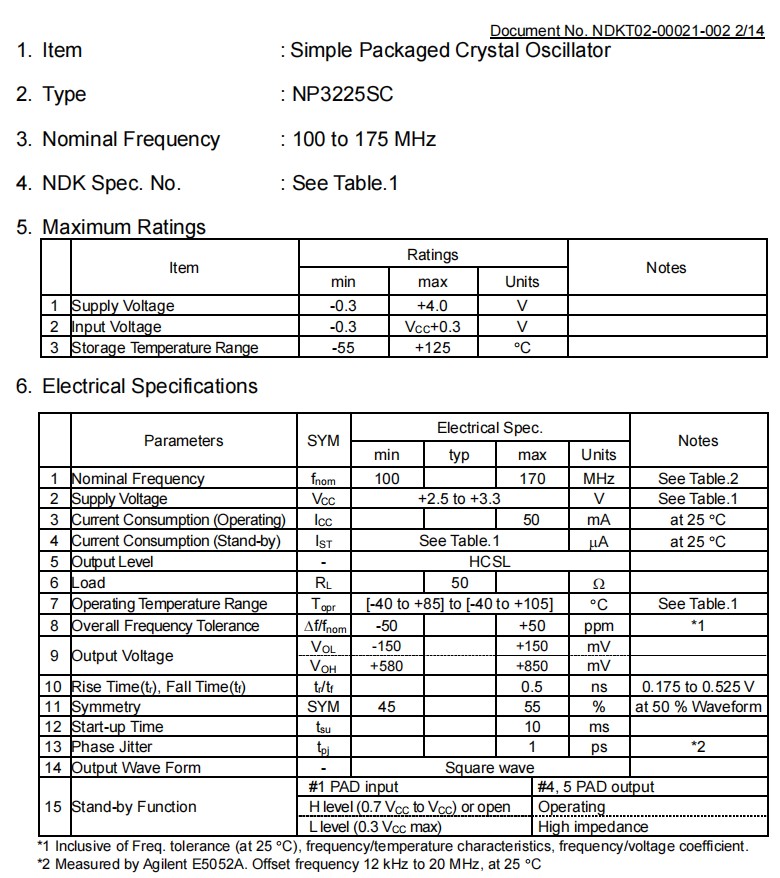

HCSL差分晶体振荡器,NP3225SC-120.000MHz-NSC5082A,NDK以太网6G晶振 参数表
Item
Symbol
NP3225SC
Unit
Nominal frequency range
fnom
120.000MHz
MHz
Package size (L×W×H)
-
3.2×2.5×0.9
mm
Supply voltage
Vcc
+2.5 to +3.3
V
Current consumption
ICC
Max. 50
mA
Stand-by current
IST
Max. 15
Max. 30
μA
Output specification
-
HCSL
-
Load
RL
50
Ω
Storage temperature range
Tstr
-55 to +125
℃
Operating temperature range
Topr
-40 to +85
-40 to +105
℃
Overall frequency tolerance
Δf/fnom
Max. ±50
ppm
Output voltage
VOL
-150 to +150
V
Output voltage
VOH
+580 to +850
V
Rise (tr), fall (tf) time (0.175 to 0.525 V)
tr/tf
Max. 0.5
ns
Symmetry (at 50 % Waveform)
SYM
45 to 55
%
Start-up time
tsu
Max. 10
ms
Phase jitter
tpj
Max. 1
ps
Specification number （Vcc=2.5V±5%）
-
NSC5082A
NSC5191A
-
Specification number （Vcc=3.3V±10%）
-
NSC5345B
NSC5346B
-

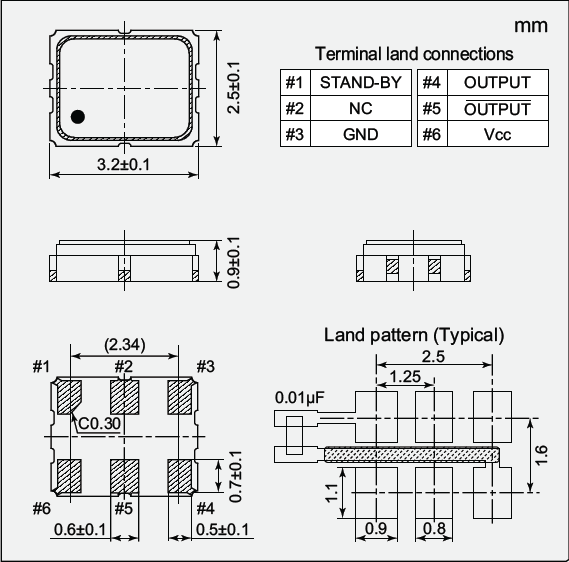

HCSL差分晶体振荡器,NP3225SC-120.000MHz-NSC5082A,NDK以太网6G晶振 尺寸图
HCSL差分晶体振荡器,NP3225SC-120.000MHz-NSC5082A,NDK以太网6G晶振
随着汽车电子的发展，各大进口晶振品牌纷纷看向智能汽车车载系统市场，日本进口晶振NDK品牌以及KDS品牌相继推出了超小体积晶体振荡器以应对智能汽车发展，NDK晶体元器件将进一步致力于小型，高稳定，高精度晶体元器件的开发。为现有的应用程序以及生活新蓝图开拓广阔前景。NDK晶振在KHZ，MHZ,以及GHZ上都有重大突破，使得NDK晶体元器件已以23%的市场占有率位于业界第一.
| 进口有源晶振 | 品牌 | 型号 | 频率 | 电压 | 尺寸 |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | 32.768kHz | 1.8V | 4-SMD, No Lead |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | 32.768kHz | 3.3V | 4-SMD, No Lead |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 4-SMD, No Lead |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 4-SMD, No Lead |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | 32.768kHz | 2.5V | 4-SMD, No Lead |
| NZ2520SB-2.750000MHZ | NDK晶振 | NZ2520SB | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-7.600000MHZ | NDK晶振 | NZ2520SB | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-5.000000MHZ | NDK晶振 | NZ2520SB | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-10.000000MHZ | NDK晶振 | NZ2520SB | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-19.200MHZ | NDK晶振 | NZ2520SB | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-20.000000MHZ | NDK晶振 | NZ2520SB | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-22.000000MHZ | NDK晶振 | NZ2520SB | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-25.600MHZ | NDK晶振 | NZ2520SB | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-38.900MHZ | NDK晶振 | NZ2520SB | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-40.000000MHZ | NDK晶振 | NZ2520SB | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-41.360MHZ | NDK晶振 | NZ2520SB | 41.36MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-44.000000MHZ | NDK晶振 | NZ2520SB | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 贴片晶振 |
| 2775W-2.176 | NDK晶振 | 2775W | 2.176MHz | 5V | 4-SMD, No Lead |
| 2765E-2.457600MHZ | NDK晶振 | 2765E | 2.4576MHz | 3.3V | 4-SMD, No Lead |
| 2765E-16.666700MHZ | NDK晶振 | 2765E | 16.6667MHz | 3.3V | 4-SMD, No Lead |
| 2765E-25.000000MHZ | NDK晶振 | 2765E | 25MHz | 3.3V | 4-SMD, No Lead |
| 2765E-33.333300MHZ | NDK晶振 | 2765E | 33.3333MHz | 3.3V | 4-SMD, No Lead |
| 2765E-40.000000MHZ | NDK晶振 | 2765E | 40MHz | 3.3V | 4-SMD, No Lead |
| 2765E-50.000000MHZ | NDK晶振 | 2765E | 50MHz | 3.3V | 4-SMD, No Lead |
| 2765E-66.000000MHZ | NDK晶振 | 2765E | 66MHz | 3.3V | 4-SMD, No Lead |
| 2765E-66.667000MHZ | NDK晶振 | 2765E | 66.667MHz | 3.3V | 4-SMD, No Lead |
| 2765E-80.000000MHZ | NDK晶振 | 2765E | 80MHz | 3.3V | 4-SMD, No Lead |
| NZ2520SA-2.750000MHZ | NDK晶振 | NZ2520SA | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-5.000000MHZ | NDK晶振 | NZ2520SA | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-7.600000MHZ | NDK晶振 | NZ2520SA | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-10.000000MHZ | NDK晶振 | NZ2520SA | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-20.000000MHZ | NDK晶振 | NZ2520SA | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-22.000000MHZ | NDK晶振 | NZ2520SA | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-40.000000MHZ | NDK晶振 | NZ2520SA | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-44.000000MHZ | NDK晶振 | NZ2520SA | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SA-19.200MHZ | NDK晶振 | NZ2520SA | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-25.600MHZ | NDK晶振 | NZ2520SA | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-38.900MHZ | NDK晶振 | NZ2520SA | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-41.360MHZ | NDK晶振 | NZ2520SA | 41.36MHz | 3V | 4-SMD, No Lead |
