LVDS低功耗晶振,NP2520SB-125.000MHz-NSC5301B,NDK6G兼容设备应用
频率：125.000MHz
尺寸：2.5x2.0x0.8mm
LVDS低功耗晶振,NP2520SB-125.000MHz-NSC5301B,NDK6G兼容设备应用，日本电波工业株式NDK晶振，型号为：NP2520SB，编码为：NP2520SB-125.000MHz-NSC5301B，频率为：125.000MHz，小体积晶振尺寸为2.5x2.0x0.8mm，晶体振荡器（SPXO），是一款LVDS输出差分晶体振荡器，六脚贴片晶振，进口有源晶振，电源电压2.5V，3.3V，工作温度范围：-40℃至+85℃，优秀的低电压(最大值100 fs @156.25 MHz)，具有超小型，轻薄型，低抖动，低功耗，低损耗，低耗能，低相位噪声，低电源电压，满足产品低消耗电流的特点。该2520晶振应用于：移动通讯设备，工业控制，消费电子，智能安防，物联网，无线网络，蓝牙模块，物联网，安防设备、路由器/交换机、仪器仪表，数码电子等应用。
LVDS低功耗晶振,NP2520SB-125.000MHz-NSC5301B,NDK6G兼容设备应用 参数表
Parameters
SYM
NP2520SB
Notes
min
typ
max
Units
Nominal Frequency
fnom
125.000
MHz
Supply Voltage
VCC
+2.5 to +3.3
V
See Table.1
Current Consumption (Operating)
ICC
40
mA
at 25 。C
Current Consumption (Stand-by)
IST
30
μA
at 25 。C
Output Level
LVDS
Load Capacitance
RL
100
Ω
Out-Complementary Out
Operating Temperature Range
Topr
-40
+85
。C
Overall Frequency Tolerance
Δf/fnom
-50
+50
ppm
*1
Output Voltage
VOD
+0.247
+0.454
V
ΔVOD
50
mV
VOS
+1.125
+1.375
V
ΔVOS
50
mV
Rise Time(tr), Fall Time(tf)
tr/tf
0.4
ns
20 % to 80 % Waveform
Symmetry
SYM
45
55
%
at 50 % waveform
Start-up Time
tsu
10
ms
Phase Jitter
tpj
100
fs
*2
Output Wave Form
-
Square wave
Stand-by Function
#1 PAD input
#4, 5 PAD output
H level (0.7 VCC to VCC) or open
Operating
L level (0.3 VCC max)
High impedance

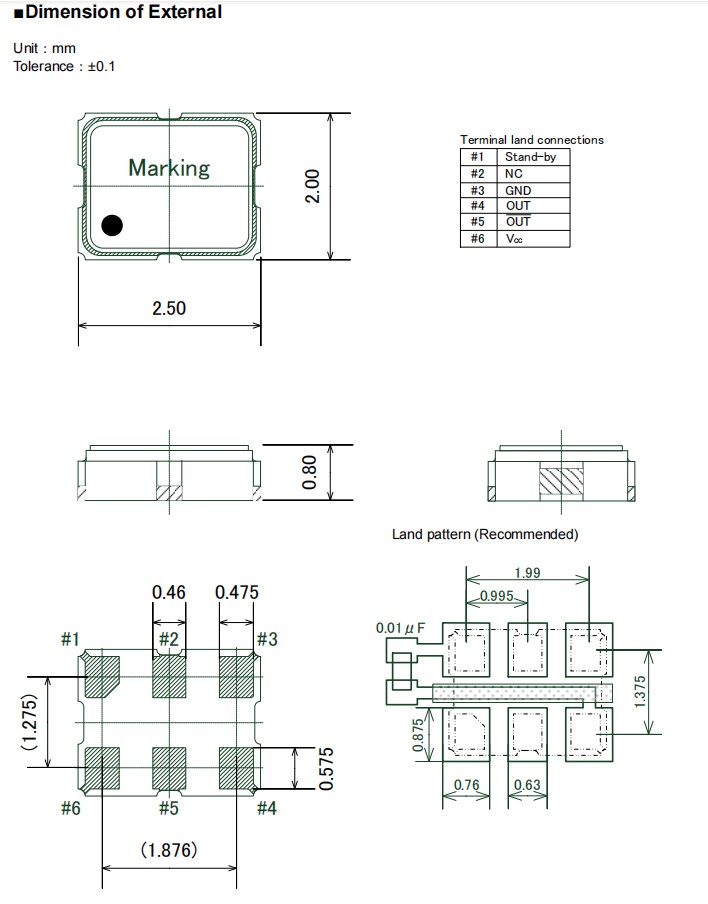

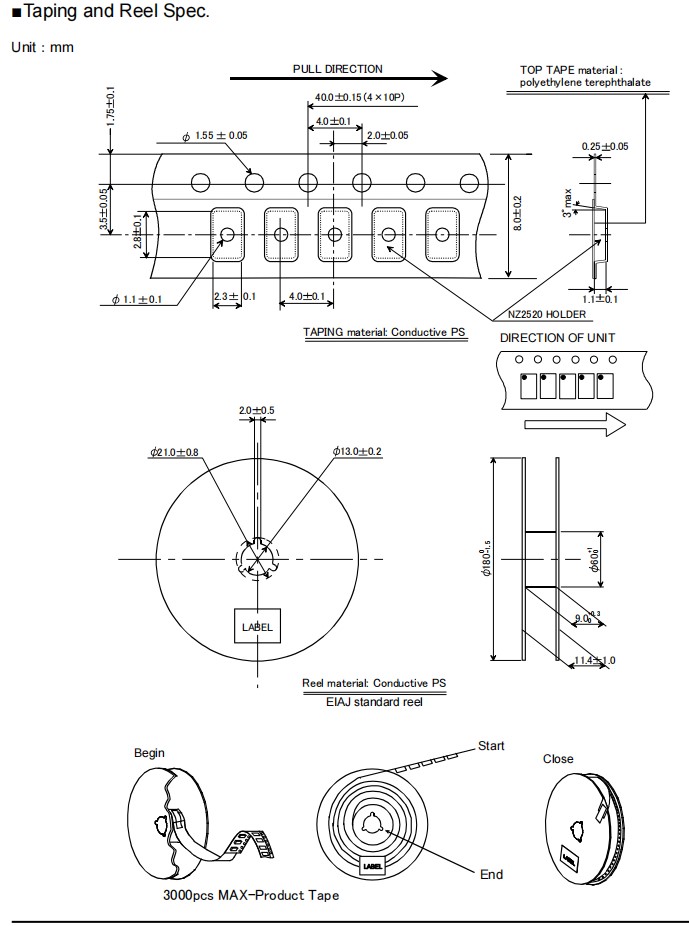

LVDS低功耗晶振,NP2520SB-125.000MHz-NSC5301B,NDK6G兼容设备应用 尺寸图

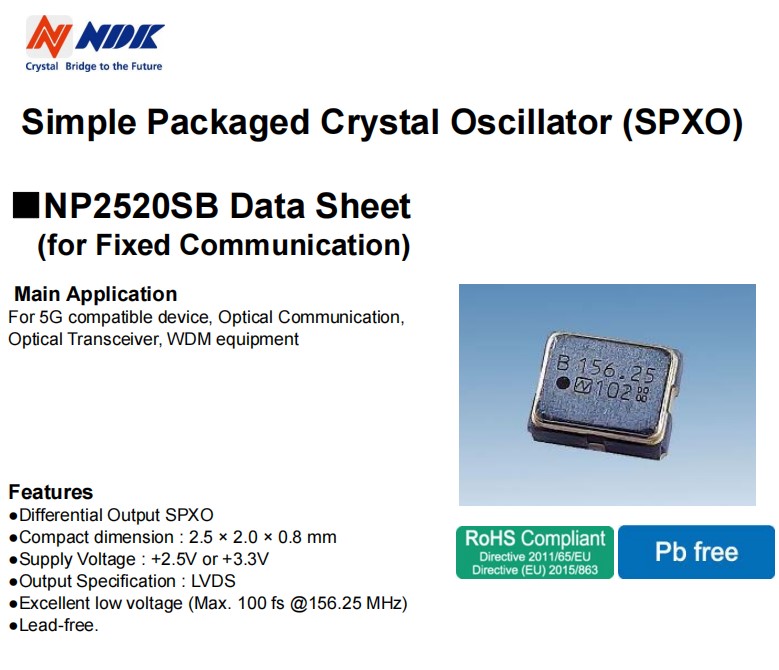

LVDS低功耗晶振,NP2520SB-125.000MHz-NSC5301B,NDK6G兼容设备应用
特点：
●差分输出SPXO
●紧凑尺寸：2.5×2.0×0.8毫米
●电源电压：+2.5V或+3.3V
●输出规格：LVDS晶振
●出色的低电压（最高100 fs@156.25 MHz）
●无铅
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性.
| 晶振编码 | 品牌 | 型号 | 频率 | 电压 | 尺寸 |
| NZ2520SB-32.768KHZ-NSA3534C | NDK晶振 | NZ2520S | 32.768kHz | 1.8V | 4-SMD, No Lead |
| NT2016SA-26.000000MHZ-NBG2 | NDK晶振 | NT2016SA | 26MHz | 1.8V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3536C | NDK晶振 | NZ2520S | 32.768kHz | 3.3V | 4-SMD, No Lead |
| NT3225SA-13.000000MHZ | NDK晶振 | NT3225SA | 13MHz | 3V | 4-SMD, No Lead |
| NT3225SA-19.680000MHZ | NDK晶振 | NT3225SA | 19.68MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ | NDK晶振 | NT3225SA | 26MHz | 3V | 4-SMD, No Lead |
| NT2016SA-16.368000 MHZ-NTG1 | NDK晶振 | NT2016SA | 16.368MHz | 2.5V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT3225SA-19.2M-DJA3002B | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NT2520SA-26.000000MHZ-A1 | NDK晶振 | NT2520SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SB-32.768KHZ-NSA3535C | NDK晶振 | NZ2520S | 32.768kHz | 2.5V | 4-SMD, No Lead |
| NZ2520SB-2.750000MHZ | NDK晶振 | NZ2520SB | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-7.600000MHZ | NDK晶振 | NZ2520SB | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-5.000000MHZ | NDK晶振 | NZ2520SB | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-10.000000MHZ | NDK晶振 | NZ2520SB | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-19.200MHZ石英晶振 | NDK晶振 | NZ2520SB | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-20.000000MHZ | NDK晶振 | NZ2520SB | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-22.000000MHZ | NDK晶振 | NZ2520SB | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-25.600MHZ | NDK晶振 | NZ2520SB | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-38.900MHZ | NDK晶振 | NZ2520SB | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-40.000000MHZ | NDK晶振 | NZ2520SB | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-41.360MHZ | NDK晶振 | NZ2520SB | 41.36MHz | 3V | 4-SMD, No Lead |
| NZ2520SB-44.000000MHZ | NDK晶振 | NZ2520SB | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G5 | NDK晶振 | NT3225SA | 26MHz | 2.4V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G7 | NDK晶振 | NT3225SA | 26MHz | 2.7V | 4-SMD, No Lead |
| NT3225SA-26.000000MHZ-G8 | NDK晶振 | NT3225SA | 26MHz | 2.75V | 4-SMD, No Lead |
| NT3225SA-19.200000MHZ-T3 | NDK晶振 | NT3225SA | 19.2MHz | 2.8V | 4-SMD, No Lead |
| NZ2520SA-2.750000MHZ | NDK晶振 | NZ2520SA | 2.75MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-5.000000MHZ | NDK晶振 | NZ2520SA | 5MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-7.600000MHZ | NDK晶振 | NZ2520SA | 7.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-10.000000MHZ | NDK晶振 | NZ2520SA | 10MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-20.000000MHZ | NDK晶振 | NZ2520SA | 20MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-22.000000MHZ | NDK晶振 | NZ2520SA | 22MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-40.000000MHZ | NDK晶振 | NZ2520SA | 40MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-44.000000MHZ | NDK晶振 | NZ2520SA | 44MHz | 3V | 4-SMD, No Lead |
| NT3225SA-52.000000MHZ-S1 | NDK晶振 | NT3225SA | 52MHz | 2.4V | 4-SMD, No Lead |
| NZ2520SA-19.200MHZ | NDK晶振 | NZ2520SA | 19.2MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-25.600MHZ | NDK晶振 | NZ2520SA | 25.6MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-38.900MHZ | NDK晶振 | NZ2520SA | 38.9MHz | 3V | 4-SMD, No Lead |
| NZ2520SA-41.360MHZ | NDK晶振 | NZ2520SA | 41.36MHz | 3V | 4-SMD, No Lead |
