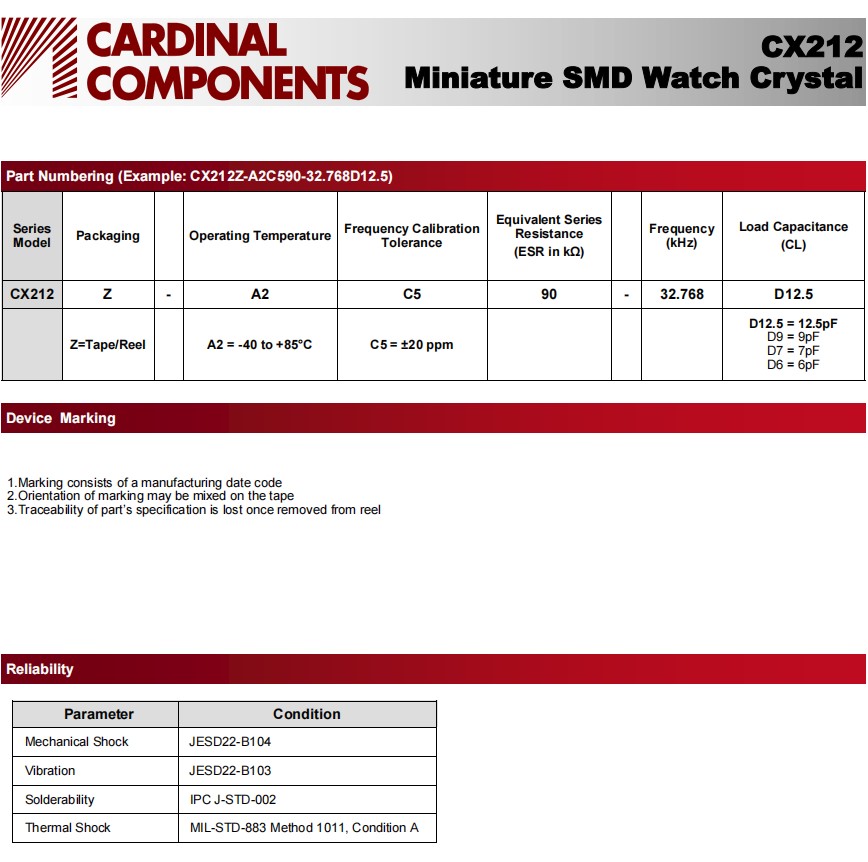

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体

频率：32.768KHz

尺寸：2.0x1.2x0.6mm

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX212系列晶振，编码为：CX212Z-A2C590-32.768D12.5，频率为：32.768K晶振，小体积晶振尺寸：2.0x1.2x0.6mm封装，两脚贴片晶振，石英晶体，2012晶振，手表晶体，SMD晶振，无源晶振，石英晶体谐振器，微型低剖面表面贴装水晶表，包装是自动表面安装的理想选择，组装和回流实践，磁带和卷轴包装。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。石英晶振，被广泛应用于：钟表电子，时钟晶振，仪器仪表设备，智能手机，平板电脑，通讯设备，无线蓝牙，智能门锁，智能水电表，计时器晶振，数字显示，电视机等应用。

订购热线：0755-2783-7683

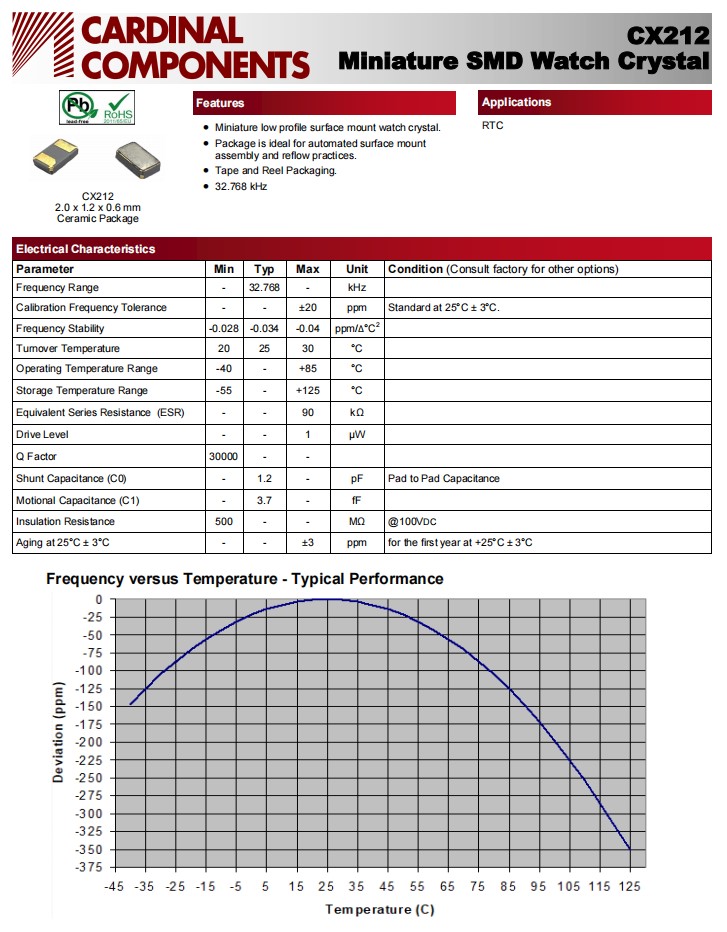

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体 参数表

Parameter	Min	Typ	Max	Unit	Condition (Consult factory for other options)
Frequency Range	-	32.768	-	kHz
Calibration Frequency Tolerance	-	-	±20	ppm	Standard at 25°C ± 3°C.
Frequency Stability	-0.028	-0.034	-0.04	ppm/Δ°C2
Turnover Temperature	20	25	30	°C
Operating Temperature Range	-40	-	+85	°C
Storage Temperature Range	-55	-	+125	°C
Equivalent Series Resistance (ESR)	-	-	90	kΩ
Drive Level	-	-	1	µW
Q Factor	30000	-	-
Shunt Capacitance (C0)	-	1.2	-	pF	Pad to Pad Capacitance
Motional Capacitance (C1)	-	3.7	-	fF
Insulation Resistance	500	-	-	MΩ	@100VDC
Aging at 25°C ± 3°C	-	-	±3	ppm	for the first year at +25°C ± 3°C

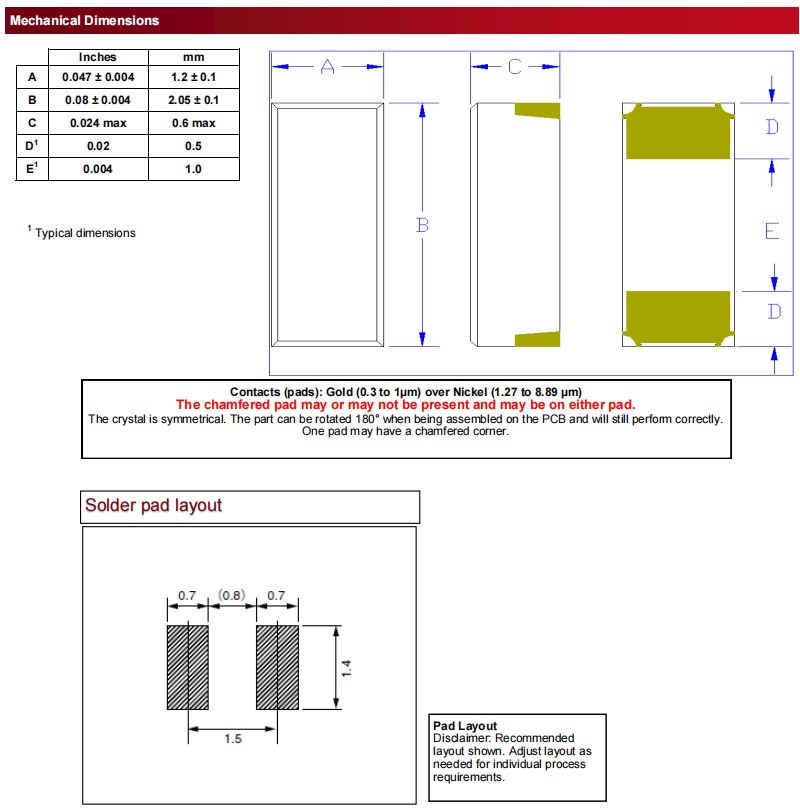

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体 尺寸图
