lora模块低功耗晶振供应ECS-2520MVQ-250-BN-TR

返回列表 来源:统一电子 查看手机网址
扫一扫!lora模块低功耗晶振供应ECS-2520MVQ-250-BN-TR扫一扫!
浏览:- 发布日期:2022-10-24 15:01:35【
ECS晶振ECS-2520MVQ多伏振荡器系列符合AEC-Q200标准的MultiVolt™ SMD石英晶体振荡器允许客户在多种设计中使用相同的器件。MVQ系列符合AEC-Q200标准的低功耗、固定频率、低抖动、MulitVolt™ SMD晶体振荡器采用2.5x2.0mm封装。MultiVolt™ 功能允许客户将同一设备用于具有不同电源电压的多种设计,从而降低了资格要求和库存。ECS-2520MVQ贴片晶振是一款微型SMD HCMOS振荡器,具有MultiVolt能力为1.6V至3.6V的2.5×2.0×0.8毫米陶瓷封装四脚贴片晶振,非常适合LoRa WAN、lora模块,低功耗/便携式、工业和汽车应用。

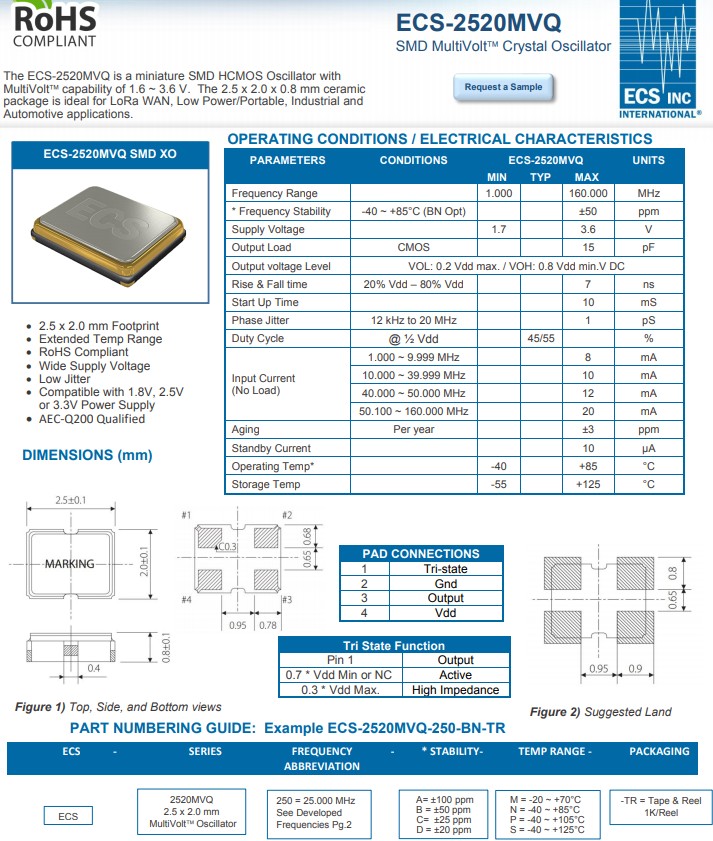

lora模块低功耗晶振供应ECS-2520MVQ-250-BN-TR

ECS-2520MVQ

零件号 频率 频率
稳定性
工作
温度
ECS-2520MVQ-080-CN-TR 8兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-120-BP-TR 12兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-160-CN-TR 16兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-240-BP-TR 24兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-250-CN-TR 25兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-250-BP-TR 25兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-250-BS-TR 25兆赫 ±50ppm -40°C ~ +125°C
ECS-2520MVQ-260-CN-TR 26兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-260-BP-TR 26兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-320-CN-TR 32兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-480-CN-TR 48兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-480-BP-TR 48兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-500-CN-TR 50兆赫 ±25ppm -40°C ~ +85°C
ECS-2520MVQ-500-BP-TR 50兆赫 ±50ppm -40°C ~ +105°C
ECS-2520MVQ-1000-BN-TR 100兆赫 ±50ppm -40°C ~ +85°C
ECS-2520MVQ-1250-BN-TR 125兆赫 ±50ppm -40°C ~ +85°C
原厂代码 品牌 型号 频率 工作温度
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-500-FN-TR ECS Crystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS Crystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-100-FN-TR ECS晶振 ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-120-FN-TR ECS Crystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-160-FN-TR ECS Crystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-240-FN-TR ECS Crystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-250-FN-TR ECS Crystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-260-FN-TR ECS Crystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S18-320-FN-TR ECS Crystal ECS-2520S 32MHz -40°C ~ 85°C
lora模块低功耗晶振供应ECS-2520MVQ-250-BN-TR

ECS-2520MVQ多伏振荡器系列特征:
MulitVolt™ 兼容1.8V、2.5V或3.3V电源电压
低抖动:1pS
符合AEC-Q200标准有源晶振
BP选项:±50ppm,-40℃至+105℃
CN选项:±25ppm,-40℃至+85℃
符合RoHS 2和REACH标准
MSL 1,铅饰面金
可用的常用频率:8MHz、12MHz、16MHz、24MHz、25MHz、26MHz、32MHz、48MHz、50MHz、100MHz、125MHz

应用于:汽车,工业应用,物联网,婴儿床,导航,医疗(非生命维持),移动设备,无线设备,通用微处理器
