加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振
频率：40MHz
尺寸：3.2x2.5mm
加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振，台湾HELE加高晶振，型号：HSX321S，编码为：X3S040000FA1H，频率为：40MHz，小体积晶振尺寸：3.2x2.5mm封装，SMD石英晶体，四脚贴片晶振，石英晶体谐振器，贴片石英晶振，无源晶振，无铅环保晶振。工作温度范围选项：-30℃至+85℃，-40℃至 +105℃，-40℃至+125℃。具有超小型，轻薄型，高性能晶振，高精度晶振，高品质晶振，耐热及耐环境特点。3225晶振被广泛应用于：汽车电子晶振，车载控制器，无线蓝牙模块，移动通讯，智能手机，平板电脑，医疗设备，安防设备，数码电子，智能家居等应用。
订购热线：0755-2783-7683
加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振，台湾HELE加高晶振，型号：HSX321S，编码为：X3S040000FA1H，频率为：40MHz，小体积晶振尺寸：3.2x2.5mm封装，SMD石英晶体，四脚贴片晶振，石英晶体谐振器，贴片石英晶振，无源晶振，无铅环保晶振。工作温度范围选项：-30℃至+85℃，-40℃至 +105℃，-40℃至+125℃。具有超小型，轻薄型，高性能晶振，高精度晶振，高品质晶振，耐热及耐环境特点。3225晶振被广泛应用于：汽车电子晶振，车载控制器，无线蓝牙模块，移动通讯，智能手机，平板电脑，医疗设备，安防设备，数码电子，智能家居等应用。

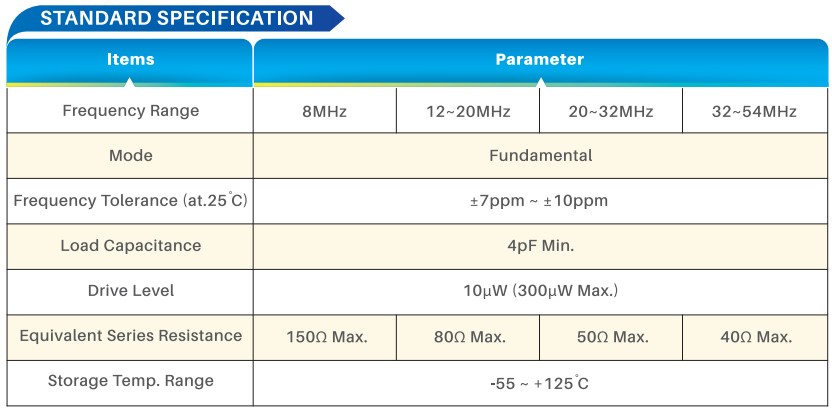

加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振 参数表

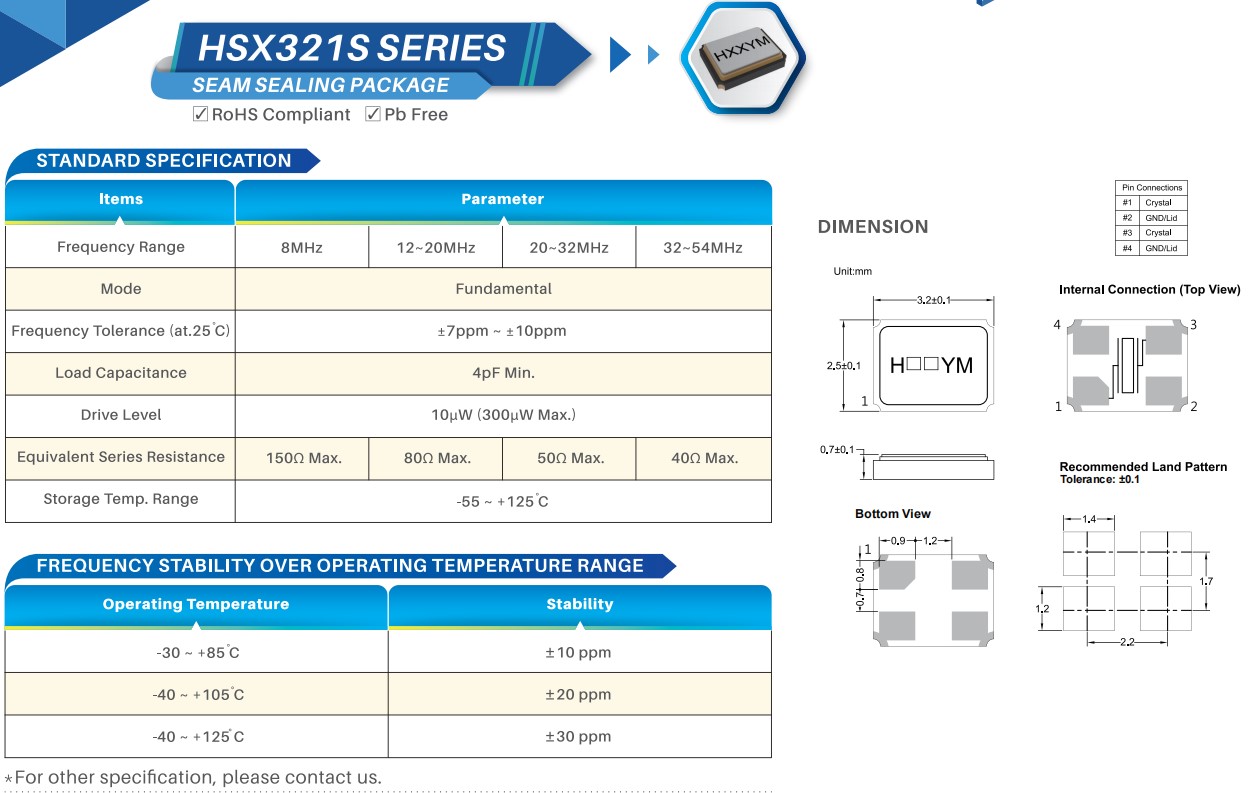

加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振 尺寸图
加高HSX321S轻薄型晶振,X3S040000FA1H,导航仪6G晶振
小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。
| 晶振编码 | 型号 | 品牌 | 描述 |
| X3S027000BA1H-U | HSX321S | HELE加高 | HSX321S/27MHZ/10PF/10PPM/10PPM@- |
| X3S024000B91H-HS | HSX321S | HELE加高 | HSX321S/24MHZ/9PF/10PPM/15PPM@-4 |
| X3S027120BA1H-X | HSX321S | HELE加高 | HSX321S/27.12MHZ/10PF/10PPM/20PP |
| X3S032000BC1HA-CHPZ | HSX321S | HELE加高 | HSX321S/32MHZ/12PF/10PPM/10PPM@- |
| X3S016000DI1H-HW | HSX321S | HELE加高 | HSX321S/16MHZ/18PF/20PPM/20PPM@- |
| X3S012000FI1H-HV | HSX321S | HELE加高 | HSX321S/12MHZ/18PF/30PPM/30PPM@- |
| X3S025000D81H-HU | HSX321S | HELE加高 | HSX321S/25MHZ/8PF/20PPM/20PPM@-4 |
| X3S026000B91H-NZ | HSX321S | HELE加高 | HSX321S/26MHZ/9PF/10PPM/10PPM@-3 |
| X3S012000BK1H | HSX321S | HELE加高 | SMD Crystal Resonators 12MHz ±10ppm SMD-3225_4P RoHS |
| X3S025000BK1H | HSX321S | HELE加高 | SMD Crystal Resonators 25MHz ±10ppm SMD-3225_4P RoHS |
| X3S038400B91H-HU | HSX321S | HELE加高 | SMD Crystal Resonators 38.4MHz ±10ppm SMD-3225_4P RoHS |
| X3S037400B91H-Z | HSX321S | HELE加高 | SMD Crystal Resonators 37.4MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000B91HA-R | HSX321S | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000BK1H | HSX321S | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000BG1HA-Z | HSX321S | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S040000BA1H-R | HSX321S | HELE加高 | SMD Crystal Resonators 40MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000B91H-DEPV | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S037400BA1H-Z | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S019200BZ1H-CHZ | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S013000BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S026000B71HA-R | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S027120DC1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S01431AFK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225-4P RoHS |
| X3S026000BB1H-CHZ | HSX321S | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS |
| X3S016384DI1H-W | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S040000BC1H-HZ | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S040000MB1H-HPZ | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S024000BK1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S027000BK1HA-Z | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S013560BK1H-V | HSX321S | HELE加高 | SMD Crystal Resonators 13.56MHz ±10ppm SMD-3225_4P RoHS |
| X3S016000B81H-DHU | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S012000BA1H-HU | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S027000DK1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S012000BA1HA-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S032000BC1HZ-NU | HSX321S | HELE加高 | SMD Crystal Resonators 32MHz ±10ppm SMD-3225_4P RoHS |
| X3S025000FC1H-HV | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S016000DC1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S024000D81H-X | HSX321S | 石英晶体 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S040000BF1H-Z | HSX321S | HELE加高 | SMD Crystal Resonators 40MHz ±10ppm SMD-3225-4P RoHS |
| X3S024000B91H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S040000FA1H | HSX321S | HELE加高 | SMD Crystal Resonators 40MHz ±30ppm SMD-3225_4P RoHS |
| X3S040000B81H-R | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S011059DK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S012000BC1H-HV | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S025000BA1H-R | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S012000DC1H-V | HSX321S | HELE加高 | SMD Crystal Resonators 12MHz ±20ppm SMD-3225_4P RoHS |
| X3S048000BA1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S027000BA1H-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S024000BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S016000BC1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S024000BC1HA-V | HSX321S | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-3225_4P RoHS |
| X3S020000BF1HA-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S016000DC1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S026000BG1S-HU | HSX321S | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS |
| X3S024000BK1H-Z | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225-4P RoHS |
| X3S024000DC1H-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225_4P RoHS |
| X3S025000DC1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S025000BA1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S012000BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators 12MHz ±10ppm SMD-3225_4P RoHS |
| X3S026000B71HZ-HPR | HSX321S | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225-4P RoHS |
| X3S02863ADK1HA-X | HSX321S | HELE加高 | SMD Crystal Resonators 28.63636MHz ±20ppm SMD-3225_4P RoHS |
| X3S032000B91H-HU | HSX321S | HELE加高 | SMD Crystal Resonators SMD_3225-4P RoHS |
| X3S026000BC1H-NR | HSX321S | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS |
| X3S013000BA1HA-U | HSX321S | HELE加高 | SMD Crystal Resonators 13MHz ±10ppm SMD-3225_4P RoHS |
| X3S016000B91H-X | HSX321S | HELE加高 | SMD Crystal Resonators 16MHz ±10ppm SMD-3225_4P RoHS |
| X1H027000DK1H-HV | HSX321S | HELE加高 | SMD Crystal Resonators SMD_5032-4P RoHS |
| X3S026000B71HZ-NHPZ | HSX321S | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-3225_4P RoHS |
| X3S012000DK1HA-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S026000BZ1HZ-HU | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S027000BK1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S030000BK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S026000B81H-NCHZ | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S013560DA1H-HU | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S024000DC1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S028375DK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S050000FK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S012000FK1H-HV | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S032000BA1H-R | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S012000DK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S020000BI1H-HZ | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S030000BA1H-S | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S030000BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S026000B71HZ-NCHPR | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S011059FK1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S032000LK1H-Z | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S032000BG1H-Z | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S036000BG1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S027000FC1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S012000BI1H-R | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S012000DG1H-H | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S030000BA1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3Z01474ADK1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S020000BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3Z02863ADK1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S02863ADA1H-W | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S010000BK1H-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD-3225 RoHS |
| X3S008000FA1H-X | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S027000BK1H | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S011059BA1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S012800DF1H-V | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
| X3S008000BK1H-U | HSX321S | HELE加高 | SMD Crystal Resonators SMD,3.2x2.5mm RoHS |
