550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振
频率：384MHZ
尺寸：7.0×5.0mm
550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振，尺寸7.0×5.0mm，频率384MHZ，支持输出LVDS，电压2.5V，频率稳定性20ppm，欧美有源晶振，思佳讯差分晶振，Skyworks oscillator，LVDS输出晶振，LVDS差分晶体振荡器，7050mm压控晶振，六脚压控振荡器，VCXO晶体振荡器，差分石英振荡器，差分贴片晶振，差分有源晶振，高频差分晶振，高品质差分晶振，低功耗差分晶振，低损耗差分晶振，低电压差分晶振，低抖动差分晶振，低相位差分晶振，低耗能差分晶振，罗拉模块专用差分晶振，无人机差分晶振，光学模块差分晶振，医疗设备差分晶振，测试测量差分晶振，数据恢复差分晶振，室外基站专用差分晶振，具有高品质低抖动的特点.
振荡器产品被广泛用于各个领域之中，适用于罗拉模块，无人机，光学模块，医疗设备，测试测量，数据恢复，室外基站等应用.550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振.
订购热线：0755-2783-7683
550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振，尺寸7.0×5.0mm，频率384MHZ，支持输出LVDS，电压2.5V，频率稳定性20ppm，欧美有源晶振，思佳讯差分晶振，Skyworks oscillator，LVDS输出晶振，LVDS差分晶体振荡器，7050mm压控晶振，六脚压控振荡器，VCXO晶体振荡器，差分石英振荡器，差分贴片晶振，差分有源晶振，高频差分晶振，高品质差分晶振，低功耗差分晶振，低损耗差分晶振，低电压差分晶振，低抖动差分晶振，低相位差分晶振，低耗能差分晶振，罗拉模块专用差分晶振，无人机差分晶振，光学模块差分晶振，医疗设备差分晶振，测试测量差分晶振，数据恢复差分晶振，室外基站专用差分晶振，具有高品质低抖动的特点.
振荡器产品被广泛用于各个领域之中，适用于罗拉模块，无人机，光学模块，医疗设备，测试测量，数据恢复，室外基站等应用.550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振.
550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振 参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | |||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | |||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
|
120 108 99 90 |
130 117 108 98 |
mA | |||||||||||||||
| tristate mode | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | V | ||||||||||||||||||
| VIL | 0.5 | V | |||||||||||||||||||
| Operating Temperature Range | TA | –40 | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Control Voltage Tuning Slope1,2,3 | KV | 10 to 90% of V DD |
|
33 45 90 135 180 356 |
|
ppm/V | |||||||||||||||
| Control Voltage Linearity4 | LVC | BSL | –5 | ±1 | +5 | % | |||||||||||||||
| Incremental | –10 | ±5 | +10 | % | |||||||||||||||||
| Modulation Bandwidth | BW | 9.3 | 10.0 | 10.7 | kHz | ||||||||||||||||
| VC Input Impedance | Z VC | 500 | kΩ | ||||||||||||||||||
| Nominal Control Voltage | VCNOM | @ fO | V DD/2 | V | |||||||||||||||||
| Control Voltage Tuning Range | VC | 0 | V DD | V | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| Nominal Frequency1,2,3 | fO | LVDS/CML/LVPECL |
|
384 |
|
MHz | |||||||||||||||
| CMOS | 10 | 160 | MHz | ||||||||||||||||||
| Temperature Stability1,4 | TA = –40 to +85 ºC |
–20 –50 –100 |
|
+20 +50 +100 |
ppm | ||||||||||||||||
| Absolute Pull Range1,4 | APR | ±12 | ±375 | ppm | |||||||||||||||||
| Aging | Frequency drift over first year. | ±3 | ppm | ||||||||||||||||||
| Frequency drift over 15 year life. | ±10 | ||||||||||||||||||||
| Power up Time5 | tOSC | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | |||||||||||||||
| LVPECL Output Option1 | VO | mid-level | V DD – 1.42 | V DD – 1.25 | V | ||||||||||||||||
| VOD | swing (diff) | 1.1 | 1.9 | VPP | |||||||||||||||||
| VSE | swing (single-ended) | 0.55 | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | |||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | ||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | — | V DD – 1.30 | — | V | |||||||||||||||
| 1.8 V option mid-level | — | V DD – 0.36 | — | V | |||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | ||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | VPP | |||||||||||||||||
| CMOS Output Option3 | V OH | I OH= 32 mA | 0.8 x V DD | — | V DD | V | |||||||||||||||
| VOL | I OL= 32 mA | — | — | 0.4 | V | ||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||
| CMOS with CL= 15 pF | — | 1 | — | ns | |||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL: V DD – 1.3 V (diff) LVDS: 1.25 V (diff) CMOS: V DD/2 |
45 | — | 55 | % | |||||||||||||||

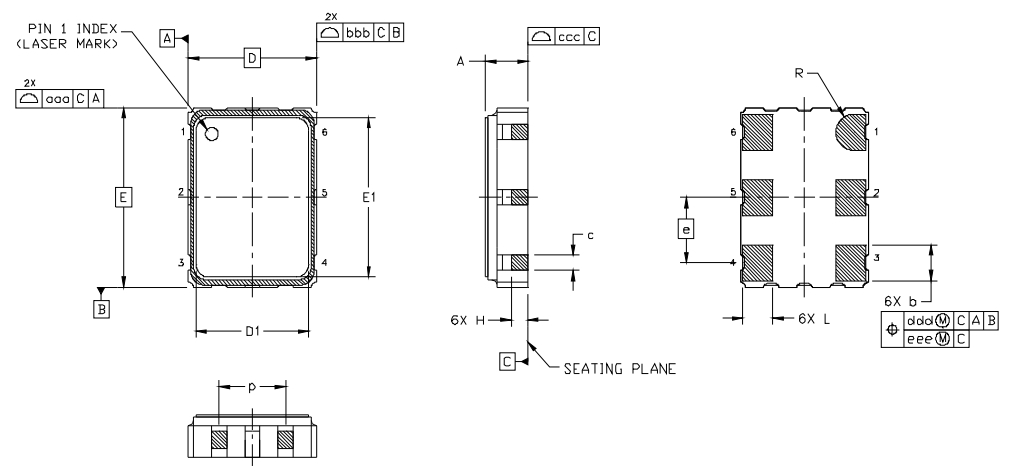

550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振 尺寸图
550FJ384M000DGR,Si550差分振荡器,思佳讯LORA罗拉模块晶振

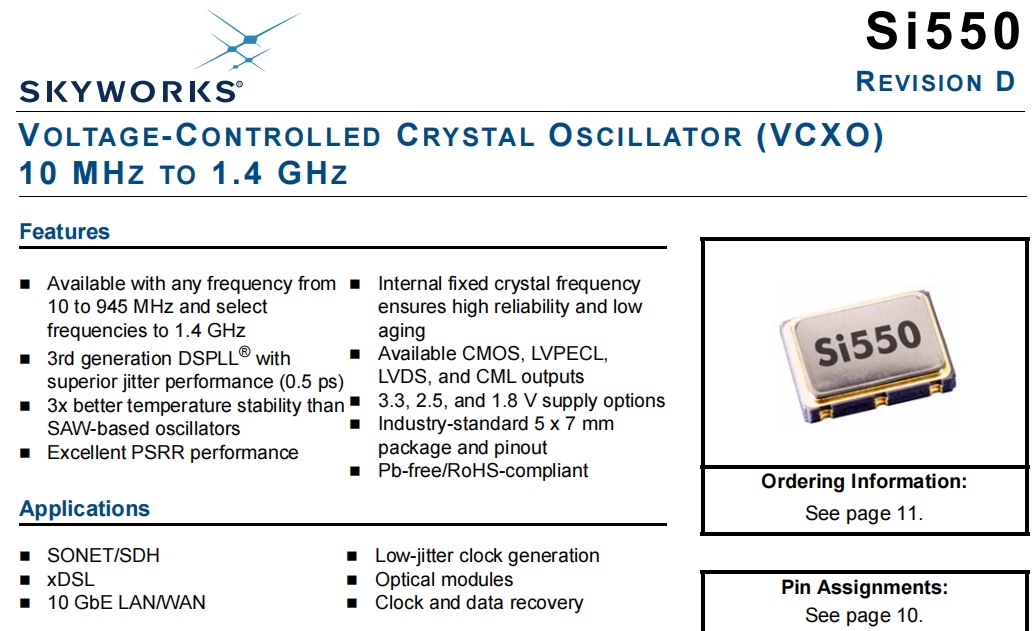

产品特性：
可用于以下任意频率10至945 MHz，然后选择
频率至1.4 GHz
第三代DSPLL®卓越的抖动性能（0.5ps）
温度稳定性比SAW振荡器
出色的PSRR性能
内部固定晶体频率
确保高可靠性和低成本变老
可用的CMOS、LVPECL、LVDS晶振和CML输出
3.3、2.5和1.8 V电源选项
行业标准5x7mm包装和引脚
无铅/符合RoHS
| Mfr Part # | Mfr | Description | Series | Frequency | Output | Voltage - Supply |
| 550AH000254DGR | Skyworks有源晶振 | XTAL OSC VCXO 669.3216MHZ LVPECL | Si550 | 669.3216 MHz | LVPECL | 3.3V |
| 550AH400M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 400.0000MHZ LVPECL | Si550 | 400 MHz | LVPECL | 3.3V |
| 550AH500M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 500.0000MHZ LVPECL | Si550 | 500 MHz | LVPECL | 3.3V |
| 550AH622M080DGR | Skyworks有源晶振 | XTAL OSC VCXO 622.0800MHZ LVPECL | Si550 | 622.08 MHz | LVPECL | 3.3V |
| 550AH693M483DGR | Skyworks有源晶振 | XTAL OSC VCXO 693.4830MHZ LVPECL | Si550 | 693.483 MHz | LVPECL | 3.3V |
| 550AH707M352DGR | Skyworks有源晶振 | XTAL OSC VCXO 707.3520MHZ LVPECL | Si550 | 707.352 MHz | LVPECL | 3.3V |
| 550AH737M280DGR | Skyworks有源晶振 | XTAL OSC VCXO 737.2800MHZ LVPECL | Si550 | 737.28 MHz | LVPECL | 3.3V |
| 550AJ000127DGR | Skyworks有源晶振 | XTAL OSC VCXO 644.53125MHZ LVPEC | Si550 | 644.53125 MHz | LVPECL | 3.3V |
| 550AJ000134DGR | Skyworks有源晶振 | XTAL OSC VCXO 693.482991MHZ LVPE | Si550 | 693.482991 MHz | LVPECL | 3.3V |
| 550AJ000274DGR | Skyworks有源晶振 | XTAL OSC VCXO 322.265625MHZ LVPE | Si550 | 322.265625 MHz | LVPECL | 3.3V |
| 550AJ322M266DGR | Skyworks有源晶振 | XTAL OSC VCXO 322.2660MHZ LVPECL | Si550 | 322.266 MHz | LVPECL | 3.3V |
| 550AJ340M480DGR | Skyworks有源晶振 | XTAL OSC VCXO 340.4800MHZ LVPECL | Si550 | 340.48 MHz | LVPECL | 3.3V |
| 550AJ409M600DGR | Skyworks有源晶振 | XTAL OSC VCXO 409.6000MHZ LVPECL | Si550 | 409.6 MHz | LVPECL | 3.3V |
| 550AJ448M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 448.0000MHZ LVPECL | Si550 | 448 MHz | LVPECL | 3.3V |
| 550AJ491M520DGR | Skyworks有源晶振 | XTAL OSC VCXO 491.5200MHZ LVPECL | Si550 | 491.52 MHz | LVPECL | 3.3V |
| 550AJ600M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 600.0000MHZ LVPECL | Si550 | 600 MHz | LVPECL | 3.3V |
| 550AJ622M080DGR | Skyworks有源晶振 | XTAL OSC VCXO 622.0800MHZ LVPECL | Si550 | 622.08 MHz | LVPECL | 3.3V |
| 550AJ672M162DGR | Skyworks有源晶振 | XTAL OSC VCXO 672.1620MHZ LVPECL | Si550 | 672.162 MHz | LVPECL | 3.3V |
| 550AM000127DGR | Skyworks有源晶振 | XTAL OSC VCXO 644.53125MHZ LVPEC | Si550 | 644.53125 MHz | LVPECL | 3.3V |
| 550AM000310DGR | Skyworks有源晶振 | XTAL OSC VCXO 698.812334MHZ LVPE | Si550 | 698.812334 MHz | LVPECL | 3.3V |
| 550AM250M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVPECL | Si550 | 250 MHz | LVPECL | 3.3V |
| 550AM340M480DGR | Skyworks晶振 | XTAL OSC VCXO 340.4800MHZ LVPECL | Si550 | 340.48 MHz | LVPECL | 3.3V |
| 550AM476M280DGR | Skyworks有源晶振 | XTAL OSC VCXO 476.2800MHZ LVPECL | Si550 | 476.28 MHz | LVPECL | 3.3V |
| 550AM480M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 480.0000MHZ LVPECL | Si550 | 480 MHz | LVPECL | 3.3V |
| 550AM595M350DGR | Skyworks有源晶振 | XTAL OSC VCXO 595.3500MHZ LVPECL | Si550 | 595.35 MHz | LVPECL | 3.3V |
| 550AM640M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 640.0000MHZ LVPECL | Si550 | 640 MHz | LVPECL | 3.3V |
| 550AM714M420DGR | Skyworks有源晶振 | XTAL OSC VCXO 714.4200MHZ LVPECL | Si550 | 714.42 MHz | LVPECL | 3.3V |
| 550AM768M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 768.0000MHZ LVPECL | Si550 | 768 MHz | LVPECL | 3.3V |
| 550AM768M848DGR | Skyworks有源晶振 | XTAL OSC VCXO 768.8480MHZ LVPECL | Si550 | 768.848 MHz | LVPECL | 3.3V |
| 550BE300M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 300.0000MHZ LVDS | Si550 | 300 MHz | LVDS | 3.3V |
| 550BE307M200DGR | Skyworks有源晶振 | XTAL OSC VCXO 307.2000MHZ LVDS | Si550 | 307.2 MHz | LVDS | 3.3V |
| 550BE360M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 360.0000MHZ LVDS | Si550 | 360 MHz | LVDS | 3.3V |
| 550BE400M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 400.0000MHZ LVDS | Si550 | 400 MHz | LVDS | 3.3V |
| 550BE486M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 486.0000MHZ LVDS | Si550 | 486 MHz | LVDS | 3.3V |
| 550BG240M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 240.0000MHZ LVDS | Si550 | 240 MHz | LVDS | 3.3V |
| 550BH240M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 240.0000MHZ LVDS | Si550 | 240 MHz | LVDS | 3.3V |
| 550BH307M200DGR | Skyworks有源晶振 | XTAL OSC VCXO 307.2000MHZ LVDS | Si550 | 307.2 MHz | LVDS | 3.3V |
| 550BM233M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 233.0000MHZ LVDS | Si550 | 233 MHz | LVDS | 3.3V |
| 550BM250M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 250.0000MHZ LVDS | Si550 | 250 MHz | LVDS | 3.3V |
| 550BM338M600DGR | Skyworks有源晶振 | XTAL OSC VCXO 338.6000MHZ LVDS | Si550 | 338.6 MHz | LVDS | 3.3V |
| 550BM466M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 466.0000MHZ LVDS | Si550 | 466 MHz | LVDS | 3.3V |
| 550BM640M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 640.0000MHZ LVDS | Si550 | 640 MHz | LVDS | 3.3V |
| 550FJ270M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 270.0000MHZ LVDS | Si550 | 270 MHz | LVDS | 2.5V |
| 550FJ379M200DGR | Skyworks有源晶振 | XTAL OSC VCXO 379.2000MHZ LVDS | Si550 | 379.2 MHz | LVDS | 2.5V |
| 550FJ384M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 384.0000MHZ LVDS | Si550 | 384 MHz | LVDS | 2.5V |
| 550FJ420M280DGR | Skyworks有源晶振 | XTAL OSC VCXO 420.2800MHZ LVDS | Si550 | 420.28 MHz | LVDS | 2.5V |
| 550FJ425M600DGR | Skyworks有源晶振 | XTAL OSC VCXO 425.6000MHZ LVDS | Si550 | 425.6 MHz | LVDS | 2.5V |
| 550FJ451M584DGR | Skyworks有源晶振 | XTAL OSC VCXO 451.5840MHZ LVDS | Si550 | 451.584 MHz | LVDS | 2.5V |
| 550FJ516M096DGR | Skyworks有源晶振 | XTAL OSC VCXO 516.0960MHZ LVDS | Si550 | 516.096 MHz | LVDS | 2.5V |
| 550ME000127DGR | Skyworks有源晶振 | XTAL OSC VCXO 644.53125MHZ LVPEC | Si550 | 644.53125 MHz | LVPECL | 3.3V |
| 550ME000131DGR | Skyworks有源晶振 | XTAL OSC VCXO 669.32658MHZ LVPEC | Si550 | 669.32658 MHz | LVPECL | 3.3V |
| 550ME000190DGR | Skyworks有源晶振 | XTAL OSC VCXO 716.5732MHZ LVPECL | Si550 | 716.5732 MHz | LVPECL | 3.3V |
| 550ME000191DGR | Skyworks有源晶振 | XTAL OSC VCXO 748.0709MHZ LVPECL | Si550 | 748.0709 MHz | LVPECL | 3.3V |
| 550ME000192DGR | Skyworks有源晶振 | XTAL OSC VCXO 779.5686MHZ LVPECL | Si550 | 779.5686 MHz | LVPECL | 3.3V |
| 550ME000193DGR | Skyworks有源晶振 | XTAL OSC VCXO 742.4348MHZ LVPECL | Si550 | 742.4348 MHz | LVPECL | 3.3V |
| 550ME000194DGR | Skyworks有源晶振 | XTAL OSC VCXO 775.0693MHZ LVPECL | Si550 | 775.0693 MHz | LVPECL | 3.3V |
| 550ME000195DGR | Skyworks有源晶振 | XTAL OSC VCXO 807.7038MHZ LVPECL | Si550 | 807.7038 MHz | LVPECL | 3.3V |
| 550ME000215DGR | Skyworks有源晶振 | XTAL OSC VCXO 665.7437MHZ LVPECL | Si550 | 665.7437 MHz | LVPECL | 3.3V |
| 550ME240M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 240.0000MHZ LVPECL | Si550 | 240 MHz | LVPECL | 3.3V |
| 550ME368M640DGR | Skyworks有源晶振 | XTAL OSC VCXO 368.6400MHZ LVPECL | Si550 | 368.64 MHz | LVPECL | 3.3V |
| 550ME480M000DGR | Skyworks有源晶振 | XTAL OSC VCXO 480.0000MHZ LVPECL | Si550 | 480 MHz | LVPECL | 3.3V |
