Si500S无线网络晶振,500SAAB24M0000ACF低功率晶振,Skyworks单端输出硅振荡器

频率：24MHz

尺寸：5.0x3.2mm

Si500S无线网络晶振,500SAAB24M0000ACF低功率晶振,Skyworks单端输出硅振荡器，进口晶振，Skyworks思佳讯晶振，型号：Si500S，编码为：500SAAB24M0000ACF，频率为：24MHz，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，石英晶振，有源晶振，CMOS晶体振荡器，单端输出硅振荡器，具有超小型，轻薄型，无石英，MEMS-free，和PLL-free全硅振荡器，任何输出频率从0.9到200MHz，短交货时间，优秀的温度稳定性（±20 ppm），高度可靠的启动和操作，高免疫冲击和振动，低抖动： <1.5 ps rms，0到85°C操作包括10年老化在热环境，足迹兼容工业标准3.2 x 5.0 mm XOs，CMOS和SSTL版本可用，驱动程序停止，三状态，或断电操作，RoHS兼容，1.8V，2.5V，或3.3 V选项，低功率，超过10倍更好的配合率比竞争晶体解决方案。该石英晶振被广泛用于通讯设备，无线网络，蓝牙模块，物联网，汽车电子，医疗设备，安防设备，导航仪，数码电子等应用。

订购热线：0755-2783-7683

Si500S无线网络晶振,500SAAB24M0000ACF低功率晶振,Skyworks单端输出硅振荡器 参数表

Parameters

Condition

Min

Typ

Max

Units

Frequency Range

MHz

Frequency Stability

Temperature stability,
0 to +70 °C

—

±10

—

ppm

Temperature stability,
0 to +85 °C

—

±20

—

ppm

Total stability,
0 to +70 °C operation1

—

±150

ppm

Total stability,
0 to +85 °C operation2

±250

ppm

Operating Temperature

Commercial

—

°C

Extended commercial

—

°C

Storage Temperature

–55

+125

°C

Supply Voltage

1.8 V option

1.71

1.98

2.5 V option

2.25

—

2.75

3.3 V option

2.97

—

3.63

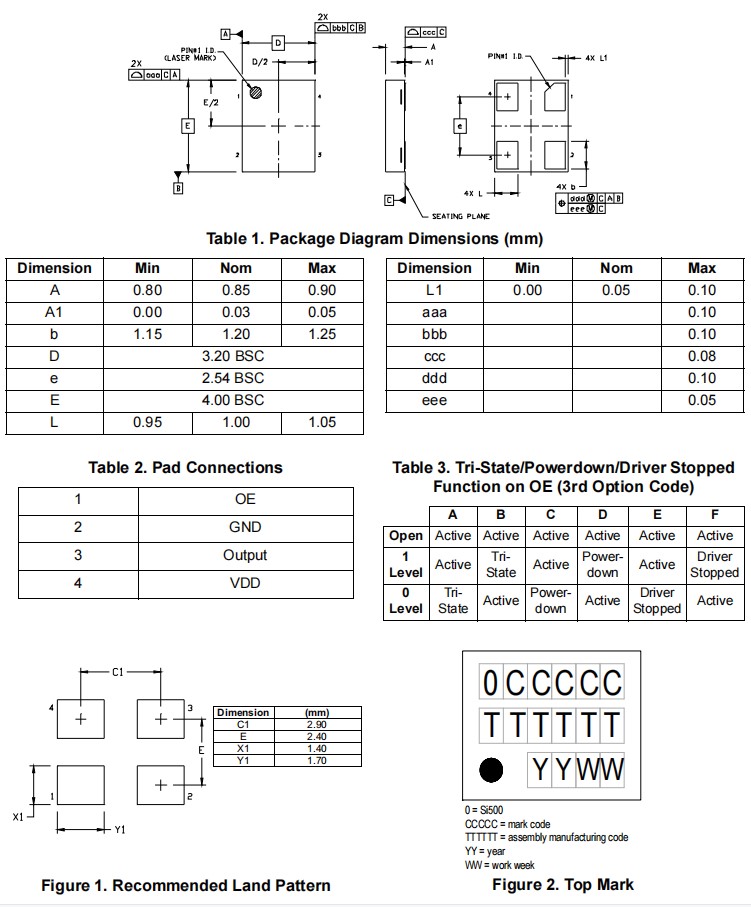

Si500S无线网络晶振,500SAAB24M0000ACF低功率晶振,Skyworks单端输出硅振荡器 尺寸图

Si500S无线网络晶振,500SAAB24M0000ACF低功率晶振,Skyworks单端输出硅振荡器

产品特点：

无石英、无MEMS和无PLL的全硅振荡器
0.9至200 MHz的任何输出频率
交付周期短
优异的温度稳定性（±20 ppm）
高度可靠的启动和运行
高度抗冲击和振动
低抖动：＜1.5 ps rms
0至85°C的操作包括在高温环境中老化10年
占地面积与行业标准3.2 x 5.0 mm XO兼容贴片石英晶振
提供CMOS和SSTL版本
驱动器停止、三态或断电操作
符合RoHS
1.8V、2.5V或3.3V选项
低功率
匹配率是竞争水晶解决方案的10倍以上

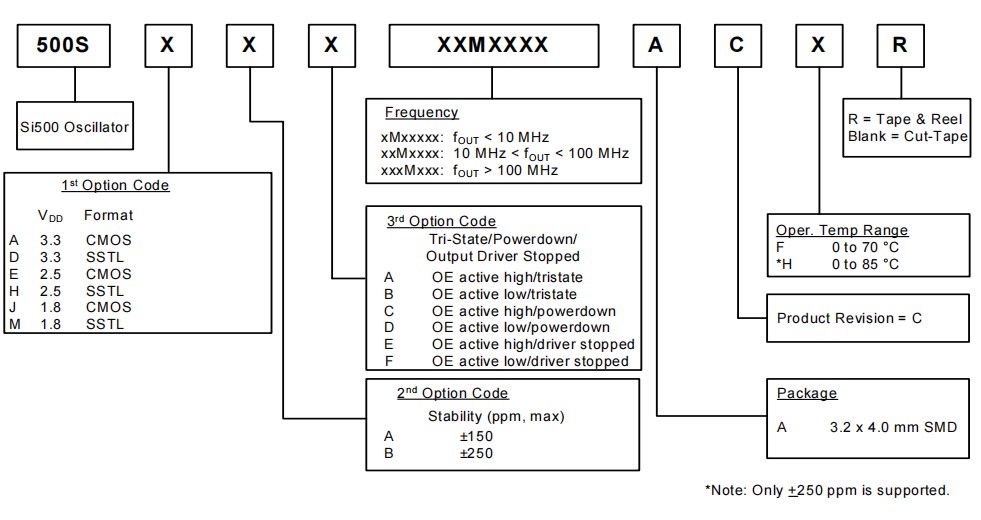

Si500S支持多种选项，包括频率、输出格式、电源电压和三态/断电/输出驱动器停止模式。特定的设备配置在装运时被编程到Si500S中。使用下图指定了配置。Skyworks解决方案提供了一个基于web的零件号实用程序，可用于简化零件号配置。

晶振编码	品牌	系列	频率	输出	电压
500SAAB24M0000ACFR	Skyworks晶振	Si500S	24 MHz	CMOS	3.3V
500SJAE93M6000ACF	Skyworks晶振	Si500S	93.6 MHz	CMOS	1.8V
500SABA11M2896ACH	Skyworks晶振	Si500S	11.2896 MHz	CMOS	3.3V
500SDBB75M4975ACHR	Skyworks晶振	Si500S	75.4975 MHz	SSTL	3.3V
500SABA18M4320ACH	Skyworks晶振	Si500S	18.432 MHz	CMOS	3.3V
500SJAE93M6000ACFR	Skyworks晶振	Si500S	93.6 MHz	CMOS	1.8V
500SABA75M4975ACHR	Skyworks晶振	Si500S	75.4975 MHz	CMOS	3.3V
500SAAB24M0000ACF	Skyworks晶振	Si500S	24 MHz	CMOS	3.3V
500SDBB75M4975ACH	Skyworks晶振	Si500S	75.4975 MHz	SSTL	3.3V
500SABA75M4975ACH	Skyworks晶振	Si500S	75.4975 MHz	CMOS	3.3V
500SABA18M4320ACHR	Skyworks晶振	Si500S	18.432 MHz	CMOS	3.3V
500SABA11M2896ACHR	Skyworks晶振	Si500S	11.2896 MHz	CMOS	3.3V
500SABB1M00000ACH	Skyworks晶振	Si500S	1 MHz	CMOS	3.3V
500SAAF122M800ACF	Skyworks晶振	Si500S	122.8 MHz	CMOS	3.3V
500SABB1M00000ACHR	Skyworks晶振	Si500S	1 MHz	CMOS	3.3V
500SJAA24M0000ACFR	Skyworks晶振	Si500S	24 MHz	CMOS	1.8V
500SJAA24M0000ACF	Skyworks晶振	Si500S	24 MHz	CMOS	1.8V
500SAAF122M800ACFR	Skyworks晶振	Si500S	122.8 MHz	CMOS	3.3V
500SABA18M4320ACF	Skyworks晶振	Si500S	18.432 MHz	CMOS	3.3V
500SABA11M2896ACF	Skyworks晶振	Si500S	11.2896 MHz	CMOS	3.3V
500SAAB44M2368ACF	Skyworks晶振	Si500S	44.2368 MHz	CMOS	3.3V
500SJBB50M0000ACH	Skyworks晶振	Si500S	50 MHz	CMOS	1.8V
500SAAA70M0000ACF	Skyworks晶振	Si500S	70 MHz	CMOS	3.3V
500SAAA72M0000ACF	Skyworks晶振	Si500S	72 MHz	CMOS	3.3V
500SAAB48M0000ACF	Skyworks晶振	Si500S	48 MHz	CMOS	3.3V
500SAAB4M00000ACF	Skyworks晶振	Si500S	4 MHz	CMOS	3.3V
500SAAB72M0000ACF	Skyworks晶振	Si500S	72 MHz	CMOS	3.3V
500SABA16M0000ACH	Skyworks晶振	Si500S	16 MHz	CMOS	3.3V
500SABA4M91520ACH	Skyworks晶振	Si500S	4.9152 MHz	CMOS	3.3V
500SABA72M0000ACH	Skyworks晶振	Si500S	72 MHz	CMOS	3.3V
500SABB13M0000ACH	Skyworks晶振	Si500S	13 MHz	CMOS	3.3V
500SABE72M0000ACH	Skyworks晶振	Si500S	72 MHz	CMOS	3.3V
500SJAC72M0000ACF	Skyworks晶振	Si500S	72 MHz	CMOS	1.8V
500SABB100M000ACHR	Skyworks晶振	Si500S	100 MHz	CMOS	3.3V
500SABB10M0000ACH	Skyworks晶振	Si500S	10 MHz	CMOS	3.3V
500SABB10M0000ACHR	进口晶振	Si500S	10 MHz	CMOS	3.3V
500SABB125M000ACH	Skyworks晶振	Si500S	125 MHz	CMOS	3.3V
500SABB125M000ACHR	Skyworks晶振	Si500S	125 MHz	CMOS	3.3V
500SABB16M0000ACH	Skyworks晶振	Si500S	16 MHz	CMOS	3.3V
500SABB16M0000ACHR	Skyworks晶振	Si500S	16 MHz	CMOS	3.3V
500SABB20M0000ACH	Skyworks晶振	Si500S	20 MHz	CMOS	3.3V
500SABB20M0000ACHR	Skyworks晶振	Si500S	20 MHz	CMOS	3.3V
500SABB27M0000ACH	Skyworks晶振	Si500S	27 MHz	CMOS	3.3V
500SABB27M0000ACHR	Skyworks晶振	Si500S	27 MHz	CMOS	3.3V
500SABB4M09600ACH	Skyworks晶振	Si500S	4.096 MHz	CMOS	3.3V
500SABB4M09600ACHR	Skyworks晶振	Si500S	4.096 MHz	CMOS	3.3V
500SABB4M91200ACH	Skyworks晶振	Si500S	4.912 MHz	CMOS	3.3V
500SABB4M91200ACHR	Skyworks晶振	Si500S	4.912 MHz	CMOS	3.3V
500SABC148M500ACH	Skyworks晶振	Si500S	148.5 MHz	CMOS	3.3V
500SABC148M500ACHR	Skyworks晶振	Si500S	148.5 MHz	CMOS	3.3V
500SABC1M84320ACH	Skyworks晶振	Si500S	1.8432 MHz	CMOS	3.3V
500SABC1M84320ACHR	Skyworks晶振	Si500S	1.8432 MHz	CMOS	3.3V
500SABC49M1520ACH	Skyworks晶振	Si500S	49.152 MHz	CMOS	3.3V
500SABC49M1520ACHR	Skyworks晶振	Si500S	49.152 MHz	CMOS	3.3V
500SABD10M0000ACH	Skyworks晶振	Si500S	10 MHz	CMOS	3.3V
500SABD10M0000ACHR	Skyworks晶振	Si500S	10 MHz	CMOS	3.3V
500SABD148M500ACH	Skyworks晶振	Si500S	148.5 MHz	CMOS	3.3V
500SABD148M500ACHR	Skyworks晶振	Si500S	148.5 MHz	CMOS	3.3V
500SDAA125M000ACF	Skyworks晶振	Si500S	125 MHz	SSTL	3.3V
500SDAA125M000ACFR	Skyworks晶振	Si500S	125 MHz	SSTL	3.3V
500SDAA2M04800ACF	Skyworks晶振	Si500S	2.048 MHz	SSTL	3.3V
500SDAA2M04800ACFR	Skyworks晶振	Si500S	2.048 MHz	SSTL	3.3V
500SDAB25M0000ACF	Skyworks晶振	Si500S	25 MHz	SSTL	3.3V
500SDAB25M0000ACFR	Skyworks晶振	Si500S	25 MHz	SSTL	3.3V
500SDAB32M7680ACF	Skyworks晶振	Si500S	32.768 MHz	SSTL	3.3V
500SDAB32M7680ACFR	Skyworks晶振	Si500S	32.768 MHz	SSTL	3.3V
500SDAB50M0000ACF	Skyworks晶振	Si500S	50 MHz	SSTL	3.3V
500SDAB50M0000ACFR	Skyworks晶振	Si500S	50 MHz	SSTL	3.3V
500SDAB66M6600ACF	Skyworks晶振	Si500S	66.66 MHz	SSTL	3.3V
500SDAB66M6600ACFR	Skyworks晶振	Si500S	66.66 MHz	SSTL	3.3V
500SDBA16M0000ACH	Skyworks晶振	Si500S	16 MHz	SSTL	3.3V
500SDBA16M0000ACHR	Skyworks晶振	Si500S	16 MHz	SSTL	3.3V
500SDBB10M0000ACH	Skyworks晶振	Si500S	10 MHz	SSTL	3.3V
500SDBB10M0000ACHR	Skyworks晶振	Si500S	10 MHz	SSTL	3.3V
500SDBB16M0000ACH	Skyworks晶振	Si500S	16 MHz	SSTL	3.3V
500SDBB16M0000ACHR	Skyworks晶振	Si500S	16 MHz	SSTL	3.3V
500SDBB25M0000ACH	Skyworks晶振	Si500S	25 MHz	SSTL	3.3V
500SDBB25M0000ACHR	Skyworks晶振	Si500S	25 MHz	SSTL	3.3V
500SDBE13M3300ACH	Skyworks晶振	Si500S	13.33 MHz	SSTL	3.3V
