编码X1E000021052716是一款高品质的贴片石英晶振用于智能交通灯控制器
编码X1E000021052716是一款高品质的贴片石英晶振用于智能交通灯控制器，敢于打破偏见，敢于破釜沉舟的日本爱普生晶振公司，致力于帮助广大用户解决在晶体行业所遇到的问题，同时又能够以高于用户满意度为最大标准，开发众多高品质的石英晶体，十分符合当下电子产品的市场，并迎来新的机会，专注加专业使得爱普生公司拥有如此伟大的成就。
                                                                                                                                                               产品编码
|
 尺寸
|
 型号
|
 频率
|
 负载
|
 Freq.tol. @+25°C
|
 Freq.tol./Temp.range
|
 Temperature range
|
 ESR [Max]
|
| X1E000021046816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 18 pF | +/-10 ppm | +/-15 ppm | -20 to +70 °C | ≤ 40 Ω |
| X1E000021046916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 18.432000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 60 Ω |
| X1E000021047716 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 31.250000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 40 Ω |
| X1E000021048116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 30.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C | ≤ 40 Ω |
| X1E000021048316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021049616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 16 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021050216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.120000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 40 Ω |
| X1E000021050316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 9 pF | +/-15 ppm | +/-25 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021050616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 18 pF | +/-10 ppm | +/-20 ppm | -40 to +105 °C | ≤ 40 Ω |
| X1E000021051516 |
3.2x2.5mm石英晶振 |
TSX-3225 | 26.000000 MHz | 8 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C | ≤ 40 Ω |
| X1E000021051816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +85 °C | ≤ 40 Ω |

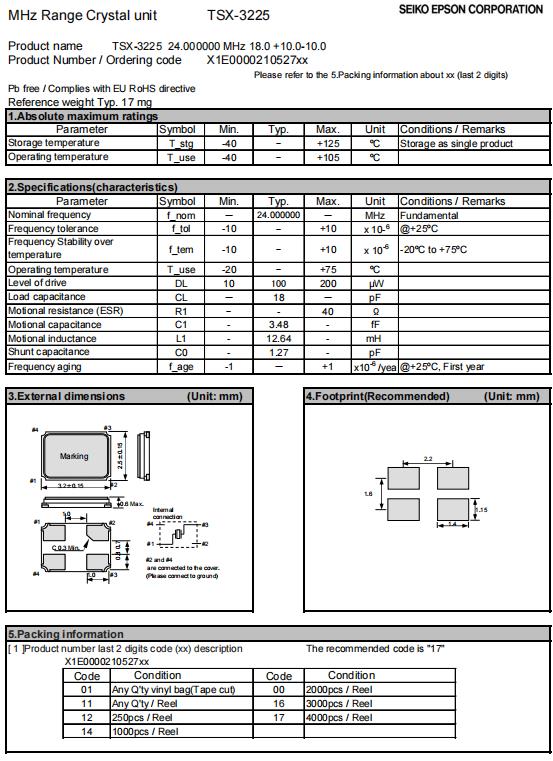

| X1E000021052716 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 40 Ω |
| X1E000021056016 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 16 pF | +/-10 ppm | +/-15 ppm | -30 to +85 °C | ≤ 40 Ω |
| X1E000021057016 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 18 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021057416 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.635300 MHz | 20 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C | ≤ 40 Ω |
| X1E000021057816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 8 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021057916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 15 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C | ≤ 40 Ω |
| X1E000021058116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 10 pF | +/-15 ppm | +/-20 ppm | -40 to +85 °C | ≤ 60 Ω |
| X1E000021058216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 12 pF | +/-30 ppm | +/-50 ppm | -40 to +85 °C | ≤ 60 Ω |
编码X1E000021052716是一款高品质的贴片石英晶振用于智能交通灯控制器，爱普生晶振以音叉型石英晶体谐振器,（32.768KHZ）系列出名,目前爱普生品牌遍布全世界,而千赫兹的晶体应用范围也比较广阔,所有的时记产品都需要用上KHZ系列晶体,该系列产品具有小型,薄型石英晶体谐振器,特别适用于有小型化要求的市场领域.
