爱普生SMD晶振专用于血压计Q22FA2380190016

2022-10-14 14:14:40

爱普生SMD晶振专用于血压计Q22FA2380190016,经过几十年的努力奋斗,爱普生公司取得相当不错的成就,秉持着专业和敬业的精神,持续为晶体行业创造巨大的价值,并坚持把最好的品质给每一位用户,这种追求优良品质的企业,更是每一位用户的最理想之选,同时又推出了FA-238晶振,编码Q22FA2380190016,无源晶振频率26.000000兆赫,尺寸(LxWxH)3.2 x 2.5 x 0.7 mm,客户负载电容10pf,频率公差+ / -15 ppm,Fo / temp。特征公差+ / -30 ppm,温度范围-40至+85°C,具备良好的可靠性能,适合用于血压计,投影机,智能家居,电子产品等领域。

产品编码 尺寸 型号 频率 负载 Freq.tol. @+25°C Freq.tol./Temp.range Temperature range ESR [Max]
Q22FA2380188716 3.2 x 2.5 x 0.7mm FA-238 50.000000 MHz 8 pF +/-15 ppm +/-30 ppm -40 to +85 °C ≤ 40 Ω
Q22FA2380188816 3.2 x 2.5 x 0.7mm FA-238 25.000000 MHz 8 pF +/-30 ppm +/-30 ppm -40 to +105 °C ≤ 50 Ω
Q22FA2380189216 3.2 x 2.5 x 0.7mm FA-238 50.000000 MHz 12 pF +/-20 ppm +/-30 ppm -40 to +85 °C ≤ 40 Ω
Q22FA2380189616 3.2 x 2.5 x 0.7mm FA-238 26.000000 MHz 12 pF +/-15 ppm +/-30 ppm -40 to +105 °C ≤ 50 Ω
Q22FA2380189816 3.2 x 2.5 x 0.7mm FA-238 25.000000 MHz 7 pF +/-15 ppm +/-30 ppm -20 to +70 °C ≤ 50 Ω
Q22FA2380190016 3.2 x 2.5 x 0.7mm FA-238 26.000000 MHz 10 pF +/-15 ppm +/-30 ppm -40 to +85 °C ≤ 50 Ω
Q22FA2380190116 3.2 x 2.5 x 0.7mm FA-238 27.000000 MHz 12 pF +/-20 ppm +/-30 ppm -40 to +85 °C ≤ 50 Ω
Q22FA2380190216 3.2 x 2.5 x 0.7mm FA-238 26.000000 MHz 10 pF +/-15 ppm +/-30 ppm -20 to +70 °C ≤ 50 Ω
Q22FA2380190316 3.2 x 2.5 x 0.7mm FA-238 50.000000 MHz 10 pF +/-15 ppm +/-30 ppm -20 to +70 °C ≤ 40 Ω
Q22FA2380190516 3.2x2.5mm石英晶振
FA-238 16.384000 MHz 8 pF +/-15 ppm +/-15 ppm -20 to +70 °C ≤ 80 Ω
Q22FA2380190816 3.2 x 2.5 x 0.7mm FA-238 48.000000 MHz 15 pF +/-50 ppm +/-30 ppm -20 to +70 °C ≤ 40 Ω
Q22FA2380191116 3.2 x 2.5 x 0.7mm FA-238 16.000000 MHz 16 pF +/-50 ppm +/-20 ppm -20 to +70 °C ≤ 80 Ω
Q22FA2380191316 3.2 x 2.5 x 0.7mm FA-238 16.000000 MHz 7 pF +/-15 ppm +/-30 ppm -20 to +70 °C ≤ 80 Ω
Q22FA2380191416 3.2 x 2.5 x 0.7mm FA-238 28.636360 MHz 20 pF +/-20 ppm +/-30 ppm -40 to +85 °C ≤ 50 Ω
Q22FA2380191716 3.2 x 2.5 x 0.7mm FA-238 30.212412 MHz 10 pF +/-50 ppm +/-30 ppm -20 to +70 °C ≤ 40 Ω
Q22FA2380191916 3.2 x 2.5 x 0.7mm FA-238 26.000000 MHz 10 pF +/-15 ppm +/-30 ppm -40 to +105 °C ≤ 50 Ω
Q22FA2380192016 3.2 x 2.5 x 0.7mm FA-238 19.200000 MHz 12 pF +/-30 ppm +/-30 ppm -40 to +105 °C ≤ 80 Ω
Q22FA2380192116 3.2 x 2.5 x 0.7mm FA-238 20.000000 MHz 10 pF +/-30 ppm +/-30 ppm -40 to +105 °C ≤ 60 Ω
Q22FA2380192316 3.2 x 2.5 x 0.7mm FA-238 24.000000 MHz 18 pF +/-50 ppm +/-30 ppm -40 to +85 °C ≤ 60 Ω
Q22FA2380192516 3.2 x 2.5 x 0.7mm FA-238 25.000000 MHz 9 pF +/-15 ppm +/-30 ppm -20 to +70 °C ≤ 50 Ω
爱普生SMD晶振专用于血压计Q22FA2380190016,目前晶振产品在技术开发上的主要趋势体现在更高的基频、更好的相位噪声和相位抖动参数等指标,日本爱普生晶振利用自身的优势推出了新一代的石英晶体谐振器产品FA-238晶振.

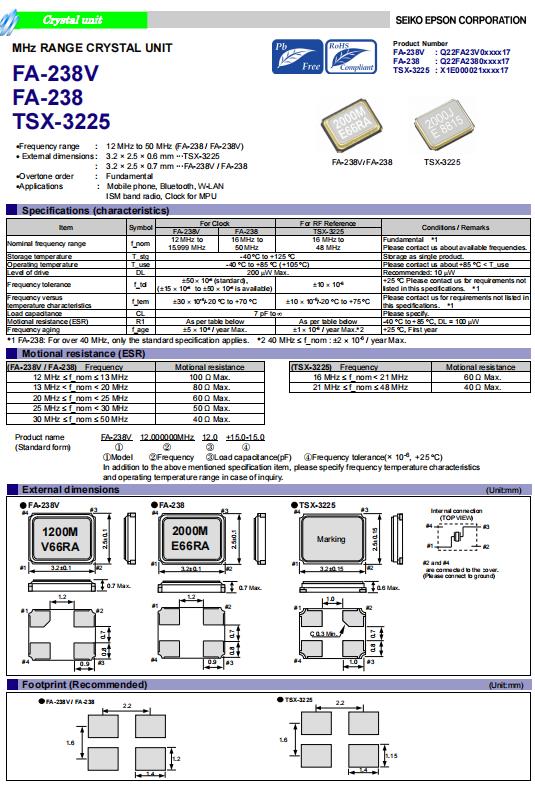

FA-238V FA-238 TSX-3225对于贴片晶振而言,在短短几年时间内,从最初的封装尺寸8045mm,逐渐过度到7050mm、6035mm、5032mm、3.2*2.5mm、 2.5*2.0mm、 2.0*1.6mm,每一次小型化晶振发展,都带来从更加自动化的生产工艺,进而推动整个产业链的革新和升级.
