CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃，尺寸为5032mm,频率为10MHZ,工作温度-30~+85℃，日本京瓷晶振，进口晶振，无源SMD晶振，水晶振动子，音叉晶体，SMD晶体，5032mm贴片晶振，数字电子晶振，消费品专用晶振，汽车音响专用晶振，CX5032GB20000H0PESZZ无源晶体，CX5032GB16000H0HPQZ1贴片晶体.

SMD晶振产品主要应用范围：数字电子，消费品，汽车音响及配件等领域。CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃.

CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃，尺寸为5032mm,频率为10MHZ,工作温度-30~+85℃，日本京瓷晶振，进口晶振，无源SMD晶振，水晶振动子，音叉晶体，SMD晶体，5032mm贴片晶振，数字电子晶振，消费品专用晶振，汽车音响专用晶振，CX5032GB20000H0PESZZ无源晶体，CX5032GB16000H0HPQZ1贴片晶体.

SMD晶振产品主要应用范围：数字电子，消费品，汽车音响及配件等领域。CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃.

CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃参数表

Item		Symbol	Specification					Units		Remarks
FrequencyRange		f_nom	7372.8 to 54000					kHz
OvertoneOrder		OT	Fundamental					―
LoadCapacitance		CL	8		12			pF
FrequencyTolerance		f_tol	±20					× 10-6		25°C±3°C
MotionalSeriesResistance		R1	Table 1					ohm
DriveLevel		DL	Table 2					W
OperatingTemp.Range		T_use	-10 to +70					°C
StorageTemp.Range		T_stg	-40 to +85					°C
FrequencyTemp.Characteristics		f_tem	±30					× 10-6		Freq. deviation from the value at 25°C

FrequencyRange

MotionalSeriesResistance

FrequencyRange

LevelofDrive

7372.8≤f_nom<9500kHz

300Ω max.

7372.8≤f_nom<16000kHz

10μW (500μW max.)

9500≤f_nom<10000kHz

200Ω max.

16000≤f_nom<25000kHz

10μW (300μW max.)

10000≤f_nom<14000kHz

150Ω max.

25000≤f_nom≤54000kHz

10μW (100μW max.)

14000≤f_nom<20000kHz

100Ω max.

20000≤f_nom<30000kHz

70Ω max.

30000≤f_nom≤54000kHz

50Ω max.

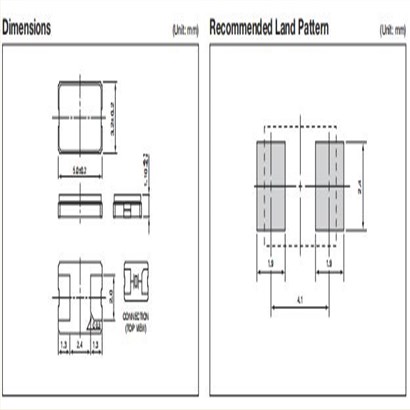

CX5032GB10000H0PESZZ-5032mm-10MHZ-汽车音响--30~+85℃尺寸图

CX5032GB10000H0PESZZ晶振特点：

•水晶单位的消费产品
•小而低调(T=1.1mm max.)
(5.0×3.2×1.0毫米)
•陶瓷封装
•回流兼容

更多相关日本进口京瓷晶振型号

日产晶振原厂编码	厂家	型号	系列	频率	工作温度
ST2012SB32768C0HPWBB	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	kHz Crystal (Tuning Fork)	32.768kHz	-40°C ~ 85°C
CX5032GA08000H0PST02	AVX Corp/Kyocera Corp	CX5032GA, Kyocera	MHz Crystal	8MHz	-40°C ~ 125°C
CX5032GB10000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-10°C ~ 70°C
CX5032GB16000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX5032GB20000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	20MHz	-10°C ~ 70°C
CX5032GB12000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX5032GB27000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX5032GB14318H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.31818MHz	-10°C ~ 70°C
CX2520SB24000D0PESZZ	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX5032GB16000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	8MHz	-40°C ~ 85°C
CX5032GB10000H0HPQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX5032GB14745H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX5032GB24576H0PESZZ	AVX Corp/Kyocera京瓷贴片晶振	CX5032GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520SB13560D0GEJCC	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
ST2012SB32768E0HPWBB	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	kHz Crystal (Tuning Fork)	32.768kHz	-40°C ~ 85°C
ST2012SB32768Z0HPWB4	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	kHz Crystal (Tuning Fork)	32.768kHz	-40°C ~ 85°C
CX5032GB08000H0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	8MHz	-10°C ~ 70°C
CX5032GB12000H0PESZZ	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	12MHz	-10°C ~ 70°C
ST2012SB32768H5WZZAP	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	kHz Crystal (Tuning Fork)	32.768kHz	-25°C ~ 75°C
CX5032SA08000H0PSVZ1	AVX Corp/Kyocera Corp	CX5032SA, Kyocera	MHz Crystal	8MHz	-40°C ~ 125°C
ST2012SB32768H5HPWAA	AVX Corp/Kyocera Corp	ST2012SB, Kyocera	kHz Crystal (Tuning Fork)	32.768kHz	-40°C ~ 85°C
CX5032GB19200P0HEQZ1	AVX Corp/Kyocera Corp	CX5032GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX2520SB13560D0GEJZ1	AVX Corp/Kyocera Corp	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
