6G以太网晶振,32SMX(A)无源晶体,32M100-10(A),日本SMI晶振

产品简介

6G以太网晶振,32SMX(A)无源晶体,32M100-10(A),日本SMI晶振，尺寸3.2x2.5mm，频率100MHZ，进口无源晶振，无源谐振器，水晶振动子，石英贴片晶体，SMD无源晶振，四脚贴片晶振，进口无源晶振，3225mm贴片晶振，无铅环保晶振，进口石英晶振，100MHZ无源晶振，低损耗无源晶振，高性能贴片晶振，高精度晶振，高品质贴片晶振，平板电脑专用晶振，智能手机晶振，蓝牙晶振，音响设备晶振，可穿戴设备专用晶振，仪器仪表晶振，工业应用晶振，小型设备晶振，产品具高性能高品质的特点.

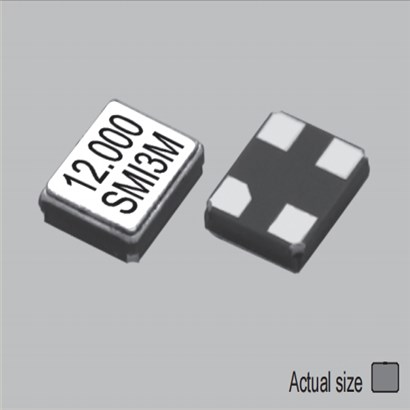

3225贴片晶振外观使用金属材料封装的,具有高稳定性,高可靠性的石英晶体,晶振外观本身使用金属封装,充分的密封性能,可确保其高可靠性,采用编带包装,外包装采用朔胶盘,可在自动贴片机上对应自动贴装等优势.6G以太网晶振,32SMX(A)无源晶体,32M100-10(A),日本SMI晶振.

产品详情

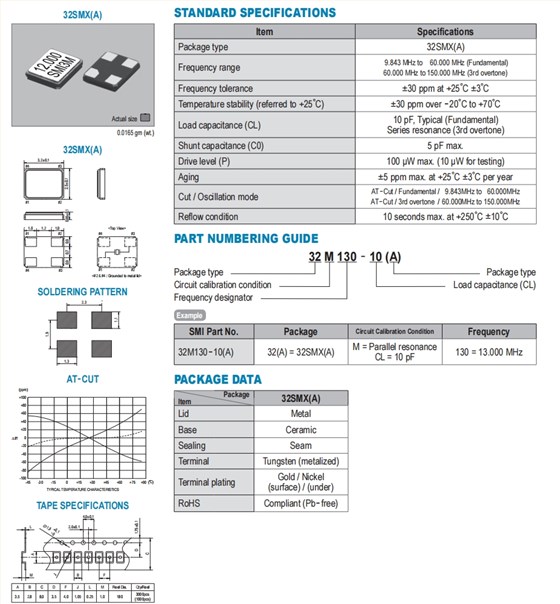

6G以太网晶振,32SMX(A)无源晶体,32M100-10(A),日本SMI晶振参数表

Item					Specifications

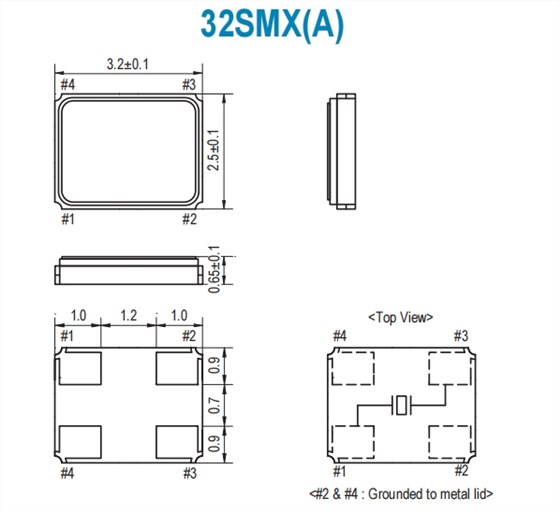

Package type					32SMX(A)
Frequency range					100.000 MHz (Fundamental) 60.000 MHz to 150.000 MHz (3rd overtone)

Frequency tolerance					±30 ppm at +25°C±3°C

Temperature stability (referred to +25°C)					±30 ppm over-20°Cto +70°C

Load capacitance (CL)					10 pF, Typical (Fundamental) Series resonance (3rd overtone)


Shunt capacitance (C0)					5 pF max.

Drive level (P)					100 μW max. (10 μWfor testing)

Aging					±5 ppm max. at +25°C±3°Cper year

Cut / Oscillation mode					AT-Cut / Fundamental /9.843MHz to60.000MHz AT-Cut / 3rd overtone / 60.000MHz to 150.000MHz

Reflow condition					10 seconds max. at +250°C±10°C
