适合5G通信的SPXO振荡器编码曝光X1G005221000300，随着中国电子产业的快速发展,诞生了无数的5G通信，物联网产品，无线蓝牙耳机,可穿戴智能等一些常见的电子产品，科技带来创新，创新带来进步，新型的智能电子产品逐渐成为了市场的主流方案。在这个市场中智能电子产品主板上需要用到晶振也越来越多,就好比这款有源晶振,型号为SG3225EEN具有超小型封装和高精度特性,对于5G通信来说十分友好，十分合适,选择一款合适电子产品晶振其对频率精度,稳定性和体积要求较高,因此基于这些需求统一电子为您推荐一款常用于5G通信的产品，编码是X1G005221000300爱普生晶振。

Product Number	进口晶振型号	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.	I [Max]	Symmetry
X1G005221000100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000200	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000300	SG3225EEN	125.003125 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000400	SG3225EEN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000500	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000700	SG3225EEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221000800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221001300	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-100 ppm	≤ 60.0 mA	45 to 55 %
X1G005221001400	SG3225EEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-100 ppm	≤ 60.0 mA	45 to 55 %
X1G005221001800	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221001900	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221002100	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221002300	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221002400	SG3225EEN	166.015625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221002800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003000	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003100	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003200	SG3225EEN	160.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003300	SG3225EEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003400	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003600	SG3225EEN	54.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003700	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-100 ppm	≤ 60.0 mA	45 to 55 %
X1G005221003800	SG3225EEN	25.000625 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %

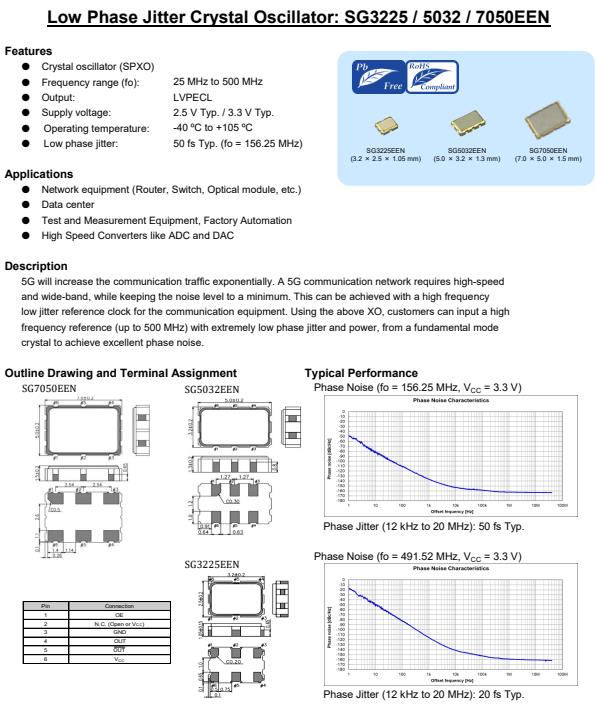

爱普生的这款SPXO贴片晶振X1G005221000300晶振,型号SG3225EEN，频率范围:25mhz ~ 500mhz,输出:LVPECL,电源电压:2.5 V/ 3.3 V典型,工作温度:-40℃~ +105℃,低相位抖动:50 fs(fo = 156.25 MHz),具有非常高的稳定性,非常适用于对设计面积敏感的智能穿戴设备设计,SG3225EEN晶振其小体积,高精度,低功耗的特性以及优良的耐热性与耐环境特性,成为智能穿戴设备时钟的最佳之选,此外SG3225EEN晶振金属外壳封装使得产品在封装时能发挥比陶瓷谐振器外壳更好的耐冲击性,大大提高了智能穿戴设备的环境适应性以及抗摔性。

Product Number	进口晶振型号	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.	I [Max]	Symmetry
X1G005221003900	SG3225EEN	170.016000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221004200	SG3225EEN	163.387607 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221004300	SG3225EEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221004400	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221004800	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-100 ppm	≤ 60.0 mA	45 to 55 %
X1G005221005100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221005400	SG3225EEN	146.370000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221005500	SG3225EEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221005600	SG3225EEN	155.520000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100100	SG3225EEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100200	SG3225EEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100300	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100500	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 105 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100700	SG3225EEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm	≤ 60.0 mA	45 to 55 %
X1G005221100800	SG3225EEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %
X1G005221101000	SG3225EEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-25 ppm	≤ 60.0 mA	45 to 55 %

适合5G通信的SPXO振荡器编码曝光X1G005221000300网络设备(路由器、交换机、光模块等),数据中心,测试和测量设备，工厂自动化,高速转换器，如ADC和DAC

EPSON晶振描述
5G将成倍增加通信流量。5G通信网络要求高速,还有宽频带，同时把噪音降到最低。这可以通过高频率来实现,用于通信设备的低抖动基准时钟。使用上述XO，客户可以输入一个高频率参考(高达500 MHz)，具有极低的相位抖动和功率，从基本模式晶体实现优良的相位噪声。
