编码X1G004451000200是一款低损耗的GPS定位器有源晶振

2022-09-27 16:09:01

编码X1G004451000200是一款低损耗的GPS定位器有源晶振,爱普生公司作为全球技术领先的领导者,致力于帮助用户解决在晶体行业所遇到的问题,以此为世界创造价值,并以自身的科研成果,回报于社会,同时又利用其高效、紧凑和精确的技术和数字技术来连接人、物和信息,共同创造可持续发展和丰富社区,爱普生晶振推出了高质量SG5032CAN晶振,编码X1G004451000200,频率16.000000兆赫,输出WaveCMOS,电源电压1.62 ~ 3.63 V,尺寸(LxWxH)5.00 x 3.20 x 1.10 mm,操作温度-40至+85°C,频率公差±50ppm,额外的OptionsN /OSC TypeClock OSC,具备低损耗,低电压,高性能的特点,常常被用于GPS定位器,无人机,无线模块,航空电子等行业。

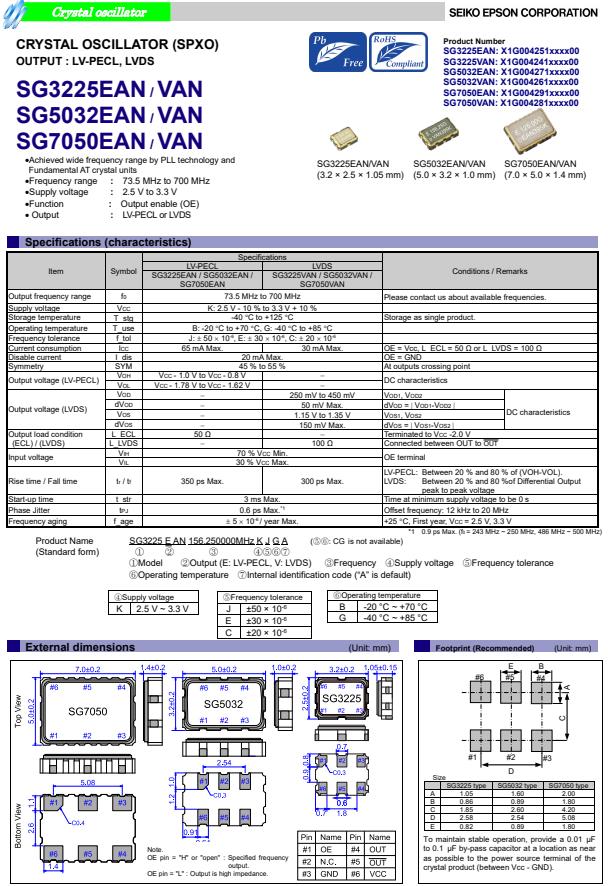

Product Number Model Frequency LxWxH Output Wave Supply Voltage Ope Temperature Freq. Tol.
X1G004261003300 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261003400 SG5032VAN 312.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261004300 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-50 ppm
X1G004261006200 SG5032VAN 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G004261006700 SG5032VAN 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS晶振
2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G004261006900 SG5032VAN 150.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G004261007100 SG5032VAN 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G004261010200 SG5032VAN 250.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261010700 SG5032VAN 153.600000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261011400 SG5032VAN 78.125000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261011900 SG5032VAN 120.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261012100 SG5032VAN 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261012500 SG5032VAN 148.351600 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261012600 SG5032VAN 133.333300 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261012800 SG5032VAN 250.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261012900 SG5032VAN 135.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261013100 SG5032VAN 322.265625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261013300 SG5032VAN 230.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004261013500 SG5032VAN 148.351600 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261013600 SG5032VAN 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261013800 SG5032VAN 148.351600 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C +/-20 ppm
X1G004261014100 SG5032VAN 161.132812 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004261014300 SG5032VAN 625.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C +/-30 ppm
X1G004451000100 SG5032CAN 12.288000 MHz 5.00 x 3.20 x 1.10 mm CMOS 1.620 to 3.630 V -40 to 85 °C +/-50 ppm
X1G004451000200 SG5032CAN 16.000000 MHz 5.00 x 3.20 x 1.10 mm CMOS 1.620 to 3.630 V -40 to 85 °C +/-50 ppm
爱普生拓优科梦(Epson — yocom)将进一步究极用精微加工发挥“石英”材料的优越性能的“QMEMS”技术,创造出更小、更高性能或全新功能的有源晶振元器件;同时,融合爱普生集团的半导体与软件技术增添便于使用、能让顾客更体验到利用价值的“解决方案”.

GPS定位器

SG5032EAN 11

编码X1G004451000200是一款低损耗的GPS定位器有源晶振,石英晶振荡器体是一种各向异性晶体。 它由以特定方位角切割的薄片制成,然后在晶片的相应表面上涂有银。 安装一对金属块作为极板,构成石英晶体振荡器。 石英晶体可用作振荡电路的原因在于其压电效应。
