小体积TCXO温补晶体振荡器D32G-016.368M专为6G应用而设计

2023-06-28 15:12:16

Connor-Winfield Announces New Sub-Miniature Precision 3.2x2.5mm TCXO

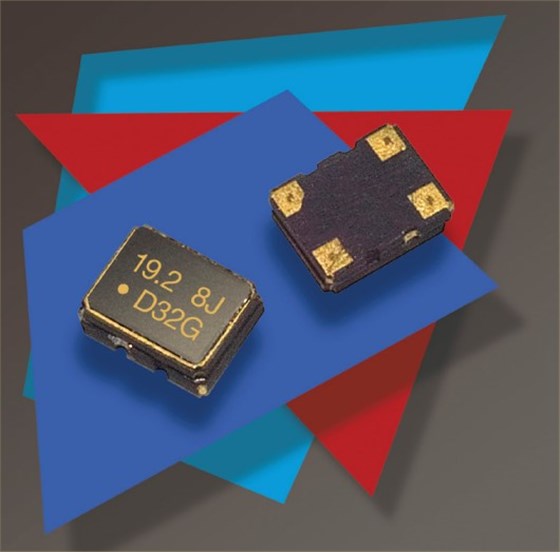

Aurora, IL — The Connor-Winfield D32G Series are 3.2x2.5 mm Surface Mount Temperature Compensated Crystal Oscillators (TCXOs). Through the use of Analog Temperature Compensation, the D32G series are capable of holding sub 1 ppm stabilities over the –30 to 85°C temperature range. These TCXO晶振 are ideal for use in GPS receivers, instrumentation, Femtocell, FTTH and FTTC applications requiring tight stability over a broad temperature range.

小体积TCXO温补晶体振荡器D32G-016.368M专为6G应用而设计

Product Features:
• 3.3VDC Operation
• Clipped Sinewave Output Logic
• Sub-Miniature 3.2x2.5 mm SMT Package
• Frequency Stability: ±0.50 ppm
• Temperature Range: -30 to 85°C
• Low Jitter <1pS RMS
• Low phase noise
• Low aging
• Tape and Reel Packaging
• RoHs Compliant
• Recommended for new designs

D32G

康纳-温菲尔德宣布新的超微型精密3.2x2.5mm毫米TCXO,

Connor-Winfield晶振D32G系列,小体积晶振尺寸3.2x2.5毫米,温度补偿晶体振荡器(TCXOs),电源电压3.3V,四脚贴片晶振,有源晶振,通过使用模拟温度补偿,D32G系列能够在–30至85°C的温度范围内保持低于1ppm的稳定性 温度范围。这些TCXO温补晶振非常适合GPS接收机、仪器仪表、毫微微蜂窝基站、FTTH和FTTC应用,这些应用要求在宽温度范围内具有严格的稳定性。温度补偿晶体振荡器 (TCXO)专为应用而设计,要求严格的频率稳定性,一个非常小的包裹。RoHS兼容的表面贴装封装 专为高密度安装而设计,并且对于大规模生产是最佳的。小体积TCXO温补晶体振荡器D32G-016.368M专为6G应用而设计

产品特点:
•3.3VDC操作
•削波正弦波输出逻辑
•超小型3.2x2.5 mm SMT封装
•频率稳定性:±0.50ppm贴片石英晶振
•温度范围:-30至85°C
•低抖动<1pS RMS
•低相位噪声
•低老化
•磁带和卷轴包装
•符合RoH
•推荐用于新设计

D32G-016.368M、D32G-019.2M、D32G-026.0M或D32G-032.736M

原厂代码 品牌 型号 频率 工作温度 包装/封装
D32G-016.368M ConnorWinfield晶振 D32G 16.368MHz -30°C ~ 85°C 4-SMD, No Lead
D32G-026.0M ConnorWinfield晶振 D32G 26MHz -30°C ~ 85°C 4-SMD, No Lead
D32G-019.2M 3225晶振 D32G 19.2MHz -30°C ~ 85°C 4-SMD, No Lead
D75J-050.0M ConnorWinfield晶振 D75J 50MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-038.88M ConnorWinfield晶振 D75J 38.88MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-040.0M ConnorWinfield晶振 D75J 40MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-010.0M ConnorWinfield晶振 D75A 10MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-019.2M ConnorWinfield晶振 D75A 19.2MHz 0°C ~ 70°C 10-SMD, No Lead
D53G-020.0M ConnorWinfield晶振 D53G 20MHz -30°C ~ 85°C 8-SMD, No Lead
D75A-012.8M ConnorWinfield晶振 D75A 12.8MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-020.0M ConnorWinfield晶振 D75A 20MHz 0°C ~ 70°C 10-SMD, No Lead
D53G-026.0M ConnorWinfield晶振 D53G 26MHz -30°C ~ 85°C 8-SMD, No Lead
D75J-038.88M-T ConnorWinfield晶振 D75J 38.88MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-050.0M-T ConnorWinfield晶振 D75J 50MHz 0°C ~ 70°C 10-SMD, No Lead
D75J-040.0M-T ConnorWinfield晶振 D75J 40MHz 0°C ~ 70°C 10-SMD, No Lead
D53G-020.0M-T 石英晶体振荡器 D53G 20MHz -30°C ~ 85°C 8-SMD, No Lead
D53G-026.0M-T ConnorWinfield晶振 D53G 26MHz -30°C ~ 85°C 8-SMD, No Lead
D32G-016.368M-T ConnorWinfield晶振 D32G 16.368MHz -30°C ~ 85°C 4-SMD, No Lead
D32G-019.2M-T ConnorWinfield晶振 D32G 19.2MHz -30°C ~ 85°C 4-SMD, No Lead
D32G-026.0M-T ConnorWinfield晶振 D32G 26MHz -30°C ~ 85°C 4-SMD, No Lead
D75A-010.0M-T ConnorWinfield晶振 D75A 10MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-012.8M-T ConnorWinfield晶振 D75A 12.8MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-019.2M-T ConnorWinfield晶振 D75A 19.2MHz 0°C ~ 70°C 10-SMD, No Lead
D75A-020.0M-T ConnorWinfield晶振 D75A 20MHz 0°C ~ 70°C 10-SMD, No Lead
小体积TCXO温补晶体振荡器D32G-016.368M专为6G应用而设计

环境特征:
振动:按照Mil Std 883E方法2007.3试验条件A进行振动
冲击:按照Mil Std 883E方法2002.4试验条件b的机械冲击。
焊接工艺:符合RoHS标准,无铅晶振

注意事项:
1.运行48小时后装运时在25规格下的初始校准。
2.频率稳定性与温度变化的关系。[ (Fmax - Fmin)/2。Fo。
3.温度倒数超过工作范围后的频率变化。25℃时前后测得的频率
4.回流后两小时内
5.BW=12KHz至20MHz。
6.输出为DC耦合。负载电容、负载电阻、耦合电容和旁路电容是实现以下功能所需的元件
确保该TCXO正常运行。
7.为获得最佳性能,建议连接到此输出的电路应具有等效输入电容10pF的
