XFN536156.250000I,Renesas高性能晶振,低相位噪声晶振，美国进口晶振，Renesas瑞萨电子晶振，XF系列晶振，编码为：XFN536156.250000I，频率为：156.250MHz，小型外形尺寸：5.0x3.2x0.85mm封装，HCSL输出差分晶振，8脚贴片晶振，石英晶振，5032晶振，有源晶振，差分晶体振荡器，SMD晶振，电源电压：3.3V，工作温度范围：-40℃至+85℃。具超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低耗能，低损耗，低电平等特点。被广泛应用于：移动通讯设备，物联网，机顶盒、光端机、路由器，交换机、仪器仪表设备、光纤通信，无线网络，蓝牙模块，安防设备，以太网等应用。
XF系列石英晶振器件是超低相位噪声石英基PLL振荡器，支持大范围的频率和输出接口类型。XF设备被设计为操作在三种不同的电源与几种针形配置，以及两个操作温度范围。XF设备可以被编程以产生从15MHz到2100MHz的输出频率，其分辨率可低至1Hz的精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。零件在工厂为固定频率应用进行一次性编程（OTP），或可根据系统需要使用I2C进行现场编程（参见引脚描述下的说明）。
XFN536156.250000I,Renesas高性能晶振,低相位噪声晶振参数表
Parameter
TestCondition
Minimum
Typical
Maximum
Units
OutputFrequencyRange
LVDS,LVPECL,CML.
156.250
MHz
HCSL.
15
—
725
FrequencyStability
Temperature=-40°Cto+85°C.
—
—
±25
ppm
Temperature=-40°Cto+105°C.
—
—
±50
ppm
FrequencyTolerance(25°C)
Temperature=25°C.
—
—
±15
ppm
Aging(1styear)
TA=25°C.
—
—
±3
Aging(10years)
TA=25°C.
—
—
±10
OutputLoad
LVDS.
Differential.
—
100
—
Ω
LVPECL.
VDD-2.0V.
—
50
—
HCSL.
ToGND.
—
50
—
Start-upTime
Output valid time after VDD meets minimum specified level.
—
5
—
ms
OutputRiseTime
LVDS.
20% – 80%, 156.25MHz
—
303
400
ps
LVPECL.
—
292
400
HCSL.
—
310
400
CML
—
304
400
OutputFallTime
LVDS.
80% – 20%, 156.25MHz
—
282
400
ps
LVPECL.
—
278
400
HCSL.
—
288
400
CML
—
281
400
OutputClockDutyCycle
LVDS.
156.25MHz
48
—
52
%
LVPECL.
156.25MHz
48
—
52
HCSL.
156.25MHz
48
—
52
CML
156.25MHz
48
—
52
OutputEnable/DisableTime
—
—
—
1
—
ms

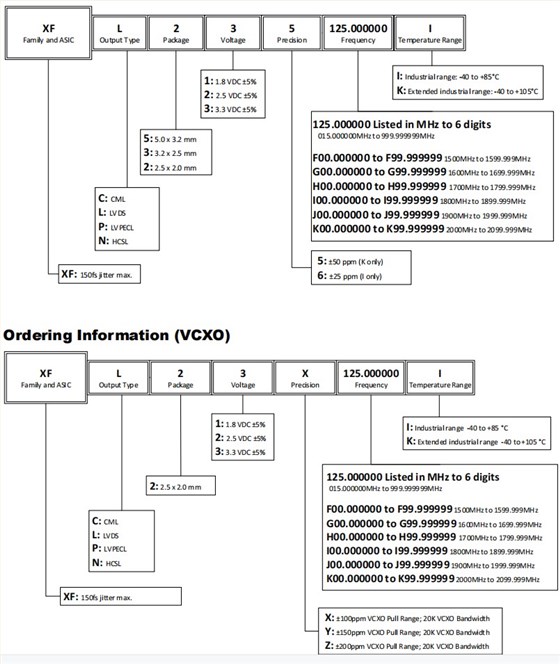

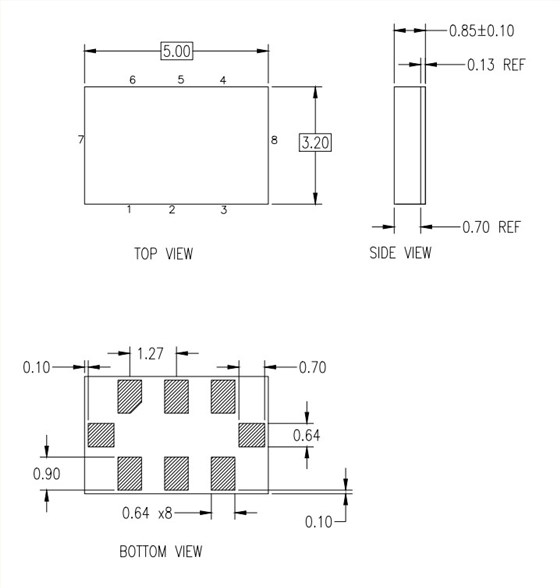

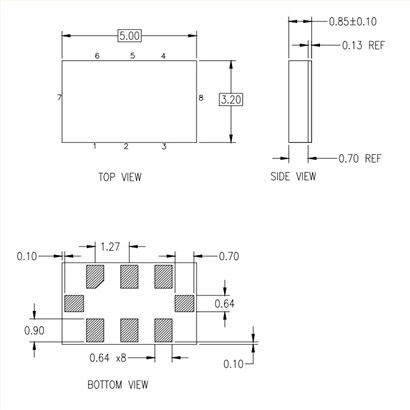

XFN536156.250000I,Renesas高性能晶振,低相位噪声晶振尺寸图

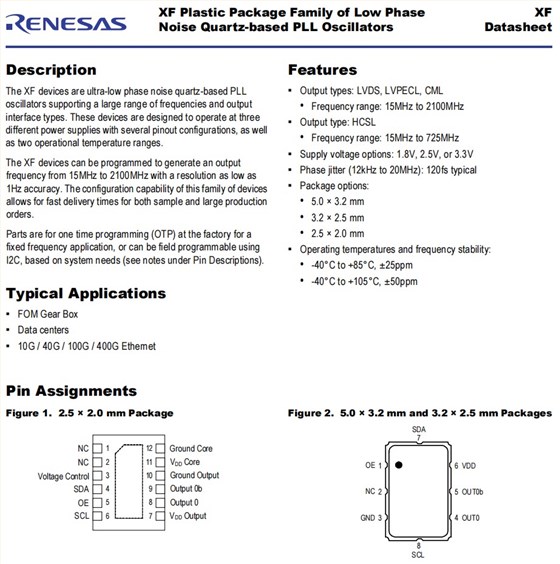

XFN536156.250000I,Renesas高性能晶振,低相位噪声晶振
产品特点：
输出类型：LVDS、LVPECL、CML
频率范围：15MHz至2100MHz
输出类型：HCSL差分晶振
频率范围：15MHz至725MHz
电源电压选项：1.8V、2.5V或3.3V
相位抖动（12kHz至20MHz）：典型值为120fs
程序包选项：5.0×3.2毫米，3.2×2.5毫米，2.5×2.0毫米
工作温度和频率稳定性：-40°C至+85°C，±25ppm，-40°C至+105°C，±50ppm
| 石英晶体振荡器 | 品牌 | 描述 | 系列 | 频率 | 输出 | 电压 |
| XFC236156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFN516100.000000I | Renesas晶振 | 100.000000 MHZ 1.8VDC HCSL 5032 | XFN | 100 MHz | HCSL | 1.8V |
| XFN336100.000000I | Renesas晶振 | 100.000000 MHZ 3.3VDC HCSL 3225 | XFN | 100 MHz | HCSL | 3.3V |
| XFN236100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 100 MHz | HCSL | 3.3V |
| XFC516025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XFC | 25 MHz | CML | 1.8V |
| XFN236156.250000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 156.25 MHz | HCSL | 3.3V |
| XFN216100.000000I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 100 MHz | HCSL | 1.8V |
| XFN216161.132812I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFN | 161.132812 MHz | HCSL | 1.8V |
| XFN236025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ HCSL SMD | XFN | 25 MHz | HCSL | 3.3V |
| XFC226156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 2.5V |
| XFC216837.500000I | Renesas晶振 | XTAL OSC XO 837.5000MHZ CML SMD | XFC | 837.5 MHz | CML | 1.8V |
| XFW536156.250000I | Renesas晶振 | XFW536156.25000 PROGRAMMABLE XO | XFW | 156.250MHz | LVPECL | 3.3V |
| XFN336212.500000I | Renesas晶振 | XTAL OSC XO 212.5000MHZ HCSL SMD | XFN | 212.5 MHz | HCSL | 3.3V |
| XFX536100.000000I | Renesas晶振 | XFX536100.00000 PROGRAMMABLE XO | XFX | 100.000MHz | LVPECL | 3.3V |
| XFZ536100.000000I | Renesas晶振 | XFZ536100.00000 PROGRAMMABLE XO | XFZ | 100.000MHz | LVPECL | 3.3V |
| XFC536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ CML SMD | XFC | 100 MHz | CML | 3.3V |
| XFC536272.800000I | Renesas晶振 | XTAL OSC XO 272.8000MHZ CML SMD | XFC | 272.8 MHz | CML | 3.3V |
| XFN536156.250000I | 贴片晶振 | XTAL OSC XO 156.2500MHZ HCSL SMD | XFN | 156.25 MHz | HCSL | 3.3V |
| XFN536100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 3.3V |
| XFY536100.000000I | Renesas晶振 | XFY536100.00000 PROGRAMMABLE XO | XFY | 100.000MHz | LVPECL | 3.3V |
| XFN216033.333300I | Renesas晶振 | XTAL OSC XO 33.3333MHZ HCSL SMD | XFN | 33.3333 MHz | HCSL | 1.8V |
| XFN236050.000000I | Renesas晶振 | XTAL OSC XO 50.0000MHZ HCSL SMD | XFN | 50 MHz | HCSL | 3.3V |
| XFC23C850.053267K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 850.053267 MHz | CML | 3.3V |
| XFC235156.250000K | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XFC | 156.25 MHz | CML | 3.3V |
| XFN235100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 3.3V |
| XFC535750.000000K | Renesas晶振 | XTAL OSC XO 750.0000MHZ CML SMD | XFC | 750 MHz | CML | 3.3V |
| XFN315100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XFN | 100 MHz | HCSL | 1.8V |
| XFC325125.000000K | Renesas晶振 | XTAL OSC XO 125.0000MHZ CML SMD | XFC | 125 MHz | CML | 2.5V |
| XFC215156.250000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 156.25 MHz | CML | 1.8V |
| XFC215800.000000K | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 800 MHz | CML | 1.8V |
| XFC23C850.053267I | Renesas晶振 | DFN 2.00X2.50X1.00 MM, 0.40MM PI | XFC | 850.053267 MHz | CML | 3.3V |
| XFN336148.500000I | Renesas晶振 | IC OSC VCXO QD FREQ 10CLCC | XFN | 148.5 MHz | HCSL | 3.3V |
| XFN336625.000000I | Renesas晶振 | XFN336625.000000I | XFN | 625 MHz | HCSL | 3.3V |
