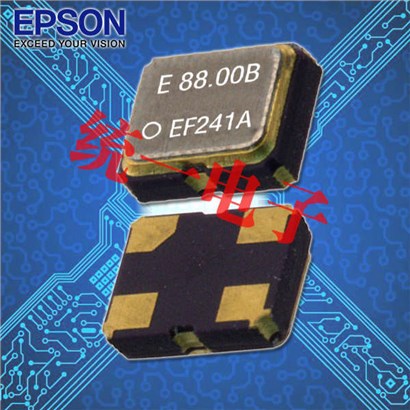

SG-210STF/X1G0041710028/19.2MHZ/CMOS/2520mm

SG-210STF/X1G0041710028/19.2MHZ/CMOS/2520mm，尺寸为2520mm,频率为19.2MHZ,支持输出CMOS，电压1.6~3.6V,频率公差50ppm,工作温度-40~+85 °C，SPXO振荡器,爱普生晶振,EPSON晶振,进口有源晶振,有源贴片晶振，进口石英晶体振荡器，低电压晶振，低抖动晶振，小型设备晶振，仪器仪表专用晶振，智能家居晶振，X1G0041710027有源振荡器，X1G0041710034振荡器。

有源振荡器产品主要应用范围：智能家居，小型设备，仪器仪表等领域，还可以应用无线模块，罗拉模块等。SG-210STF/X1G0041710028/19.2MHZ/CMOS/2520mm.

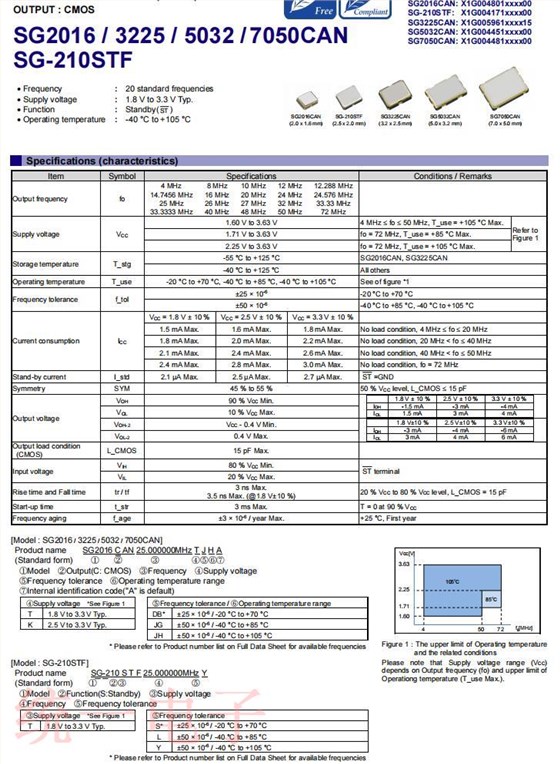

SG-210STF/X1G0041710028/19.2MHZ/CMOS/2520mm参数表

项目

符号

规格说明

条件

输出频率范围

4 MHz
14.7456 MHz
25 MHz
33.3333 MHz

8 MHz
16 MHz
26 MHz
40 MHz

10 MHz
20 MHz
27 MHz
48 MHz

12 MHz
24 MHz
32 MHz
50 MHz

12.288 MHz
24.576 MHz
33.33 MHz
72 MHz

电源电压

VCC

1.60 V to 3.63 V

4 MHz≤fo≤50 MHz, T_use = +105 °C Max .

Refer to
Figure 1

1.71 V to 3.63 V

fo = 72 MHz, T_use = +85 °C Max.

2.25 V to 3.63 V

fo = 72 MHz, T_use = + 105 °C Max.

储存温度

T_stg

-55 °C to +125 °C

SG2016CAN, SG3225CAN

-40 °C to +125 °C

All others

工作温度

T_use

-20 °C to +70 °C, -40 °C to +85 °C, -40 °C to + 105 °C

See of figure *1

频率公差

f_tol

±25 × 10-6

-20 °C to +70 °C

±50 × 10-6

-40 °C to +85 °C, -40 °C to + 105 °C

电流消耗

ICC

VCC= 1.8 V ± 10 %

VCC= 2.5 V ± 10 %

VCC= 3.3 V ± 10 %

1.5 mA Max.

1.6 mA Max.

1.8 mA Max.

No load condition, 4 MHz≤fo≤20 MHz

1.8 mA Max.

2.0 mA Max.

2.2 mA Max.

No load condition, 20 MHz < fo≤40 MHz

2.1 mA Max.

2.4 mA Max.

2.6 mA Max.

No load condition, 40 MHz < fo≤50 MHz

2.4 mA Max.

2.8 mA Max.

3.0 mA Max.

No load condition, fo = 72 MHz

待机电流

I_std

2.1 µA Max.

2.5 µA Max.

2.7 µA Max.

ST =GND

占空比

SYM

45 % to 55 %

50 % VCClevel , L_CMOS≤15 pF

输出电压

VOH

90 % VCCMin .

1.8 V ± 10 %

2.5 V ± 10 %

3.3 V ± 10 %

VOL

10 % VCCMax.

IOH

- 1.5 mA

-3 mA

-4 mA

IOL

1.5 mA

3 mA

4 mA

VOH-2

VCC- 0.4 V Min .

1.8 V± 10 %

2.5 V± 10 %

3.3 V± 10 %

VOL-2

0.4 V Max.

IOH

-3 mA

-4 mA

-6 mA

IOL

3 mA

4 mA

6 mA

输出负载状态
(CMOS)

L_CMOS

15 pF Max.

输入电压

VIH

80 % VCCMin .

ST terminal

VIL

20 % VCCMax.

上升时间和下降时间

tr / tf

3 ns Max.
3.5 ns Max . (@1.8 V± 10 %)

20 % VCCto 80 % VCClevel, L_CMOS = 15 pF

振荡启动时间

t_str

3 ms Max.

T = 0 at 90 % VCC

频率老化

f_age

±3 × 10-6/ year Max.

+25 °C, First year

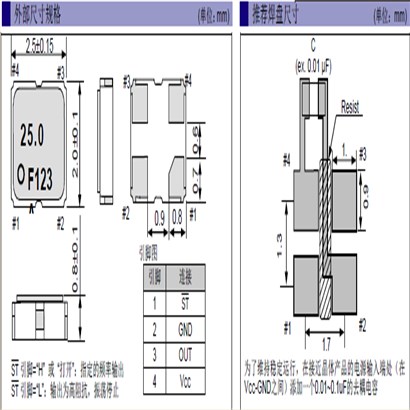

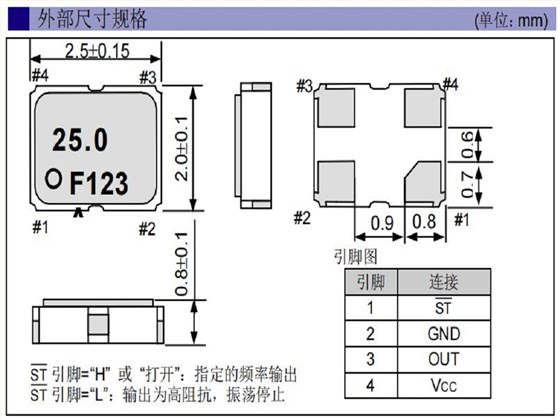

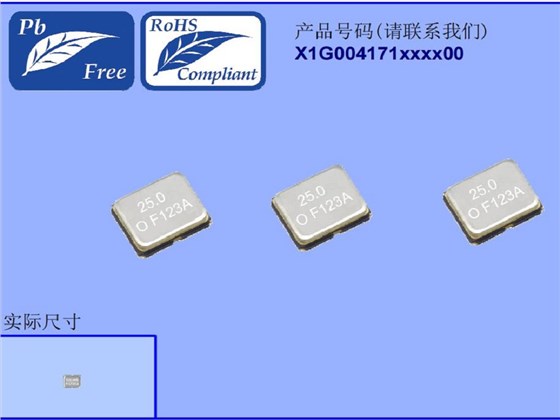

SG-210STF/X1G0041710028/19.2MHZ/CMOS/2520mm 尺寸图X1G0041710028晶振特点：

频率范围：1MHZ~75MHZ
电源电压：1.6V~3.6V
功能：待机
外部尺寸规格：2.5*2.0*0.8mm
工作温度范围：-40 to 85 °C

更多相关日本进口爱普生EPSON晶振型号

编码	品牌	型号	频率	尺寸	输出方式
X1G0041710002	爱普生晶振	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710005	爱普生晶振	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710006	爱普生晶振	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710007	爱普生晶振	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710008	爱普生晶振	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710009	爱普生晶振	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710010	爱普生晶振	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710011	爱普生晶振	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710012	爱普生晶振	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710013	爱普生晶振	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710014	爱普生晶振	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710015	爱普生晶振	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710016	爱普生晶振	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710017	爱普生晶振	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710018	爱普生晶振	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710019	爱普生晶振	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710020	爱普生晶振	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710021	爱普生晶振	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710022	爱普生晶振	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710023	爱普生晶振	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710024	爱普生晶振	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710025	爱普生晶振	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710026	爱普生晶振	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710027	爱普生晶振	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710028	爱普生晶振	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710029	爱普生晶振	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710030	爱普生晶振	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710031	爱普生晶振	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710032	爱普生晶振	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710033	爱普生晶振	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710034	爱普生晶振	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710035	爱普生晶振	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710036	爱普生晶振	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710037	爱普生晶振	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710038	爱普生晶振	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710039	爱普生晶振	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710040	爱普生晶振	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710041	爱普生晶振	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710042	爱普生晶振	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710043	爱普生晶振	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710044	爱普生晶振	SG-210STF	38.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710045	爱普生晶振	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710046	爱普生晶振	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710047	爱普生晶振	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710048	爱普生晶振	SG-210STF	52.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710049	爱普生晶振	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710052	爱普生晶振	SG-210STF	8.192000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710055	爱普生晶振	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710059	爱普生晶振	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710069	爱普生晶振	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710075	爱普生晶振	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710077	爱普生晶振	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710078	爱普生晶振	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710079	爱普生晶振	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710080	爱普生晶振	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710081	爱普生晶振	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710083	爱普生晶振	SG-210STF	1.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710084	爱普生SPXO贴片晶振	SG-210STF	1.228800 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710085	爱普生晶振	SG-210STF	1.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710086	爱普生晶振	SG-210STF	1.536000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710087	爱普生晶振	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710088	爱普生晶振	SG-210STF	2.457600 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710089	爱普生晶振	SG-210STF	2.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710090	爱普生晶振	SG-210STF	3.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710091	爱普生晶振	SG-210STF	3.072000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710092	爱普生晶振	SG-210STF	3.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710093	爱普生晶振	SG-210STF	3.579545 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710094	爱普生晶振	SG-210STF	4.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710095	爱普生晶振	SG-210STF	4.800000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710096	爱普生晶振	SG-210STF	4.915200 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710097	爱普生晶振	SG-210STF	5.644800 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710098	爱普生晶振	SG-210STF	6.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710099	爱普生晶振	SG-210STF	6.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710100	爱普生晶振	SG-210STF	6.750000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710101	爱普生晶振	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710102	爱普生晶振	SG-210STF	7.159090 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710103	爱普生晶振	SG-210STF	7.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710104	爱普生晶振	SG-210STF	8.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710105	爱普生晶振	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710106	爱普生晶振	SG-210STF	9.600000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710107	爱普生晶振	SG-210STF	9.830400 MHz	2.50 x 2.00 x 0.90 mm	CMOS
X1G0041710108	爱普生晶振	SG-210STF	15.625000 MHz	2.50 x 2.00 x 0.90 mm	CMOS
