SG-211SEE,2520mm,X1G0036410008,汽车氛围灯控制器

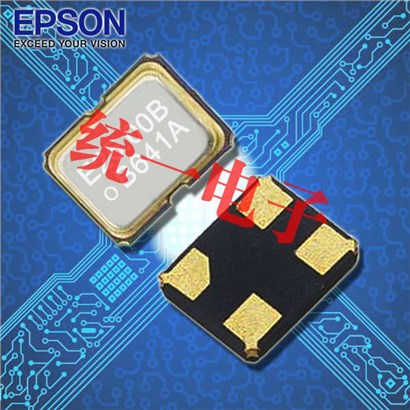

32MHZ,SG-210STF32.0000ML3,EPSON,汽车氛围灯控制器,北美编码SG-210STF32.0000ML3是一款贴片型的有源振荡器，爱普生晶振,有源晶振,SPXO振荡器,石英晶体振荡器,日本进口晶振,2520有源贴片晶振，尺寸为2520mm，频率为32MHZ，电压1.6~3.6V，频率稳定度50ppm，输出为CMOS，采用高超的生产技术结合优异的原料精心打磨而成，产品具备良好的稳定性能以及可靠性能，比较适合用于汽车氛围灯控制器,汽车电子中控，汽车音响控制器等应用领域.

爱普生已经建立了一个原始的垂直整合制造模型的最佳手段持续为客户创造新的价值,并决定使用这个模型来驱动前面提到的四个关键领域的创新.这意味着从头开始创建产品:创建我们自己的独特的核心技术和设备,使用这些作为基地的规划和设计提供独特价值的产品,生产或制造的艺术和科学,我们积累了多年的专业知识,然后生产晶振,进口石英晶振,石英晶体振荡器,压控振荡器, 32.768K钟表晶振,温补晶振等出售给我们的客户.32MHZ,SG-210STF32.0000ML3,EPSON,汽车氛围灯控制器.

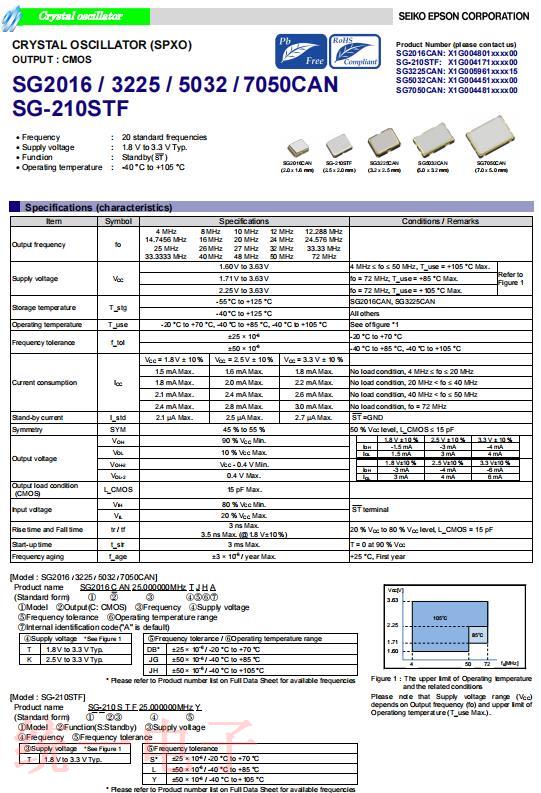

32MHZ,SG-210STF32.0000ML3,EPSON,汽车氛围灯控制器参数表

项目

符号

规格说明

条件

输出频率范围

4 MHz
14.7456 MHz
25 MHz
33.3333 MHz

8 MHz
16 MHz
26 MHz
40 MHz

10 MHz
20 MHz
27 MHz
48 MHz

12 MHz
24 MHz
32 MHz
50 MHz

12.288 MHz
24.576 MHz
33.33 MHz
72 MHz

电源电压

VCC

1.60 V to 3.63 V

4 MHz≤fo≤50 MHz, T_use = +105 °C Max .

Refer to
Figure 1

1.71 V to 3.63 V

fo = 72 MHz, T_use = +85 °C Max.

2.25 V to 3.63 V

fo = 72 MHz, T_use = + 105 °C Max.

储存温度

T_stg

-55 °C to +125 °C

SG2016CAN, SG3225CAN

-40 °C to +125 °C

All others

工作温度

T_use

-20 °C to +70 °C, -40 °C to +85 °C, -40 °C to + 105 °C

See of figure *1

频率公差

f_tol

±25 × 10-6

-20 °C to +70 °C

±50 × 10-6

-40 °C to +85 °C, -40 °C to + 105 °C

电流消耗

ICC

VCC= 1.8 V ± 10 %

VCC= 2.5 V ± 10 %

VCC= 3.3 V ± 10 %

1.5 mA Max.

1.6 mA Max.

1.8 mA Max.

No load condition, 4 MHz≤fo≤20 MHz

1.8 mA Max.

2.0 mA Max.

2.2 mA Max.

No load condition, 20 MHz < fo≤40 MHz

2.1 mA Max.

2.4 mA Max.

2.6 mA Max.

No load condition, 40 MHz < fo≤50 MHz

2.4 mA Max.

2.8 mA Max.

3.0 mA Max.

No load condition, fo = 72 MHz

待机电流

I_std

2.1 µA Max.

2.5 µA Max.

2.7 µA Max.

ST =GND

占空比

SYM

45 % to 55 %

50 % VCClevel , L_CMOS≤15 pF

输出电压

VOH

90 % VCCMin .

1.8 V ± 10 %

2.5 V ± 10 %

3.3 V ± 10 %

VOL

10 % VCCMax.

IOH

- 1.5 mA

-3 mA

-4 mA

IOL

1.5 mA

3 mA

4 mA

VOH-2

VCC- 0.4 V Min .

1.8 V± 10 %

2.5 V± 10 %

3.3 V± 10 %

VOL-2

0.4 V Max.

IOH

-3 mA

-4 mA

-6 mA

IOL

3 mA

4 mA

6 mA

输出负载状态
(CMOS)

L_CMOS

15 pF Max.

输入电压

VIH

80 % VCCMin .

ST terminal

VIL

20 % VCCMax.

上升时间和下降时间

tr / tf

3 ns Max.
3.5 ns Max . (@1.8 V± 10 %)

20 % VCCto 80 % VCClevel, L_CMOS = 15 pF

振荡启动时间

t_str

3 ms Max.

T = 0 at 90 % VCC

频率老化

f_age

±3 × 10-6/ year Max.

+25 °C, First year

Connection

Function

terminal

function

Oscillator circuit

Output

HIGH or "open"

Oscillation

Specified frequency: Enable

LOW

Oscillation stop

High impedance: Disable

GND

Ground

OUT

Clock output

VCC

Power supply

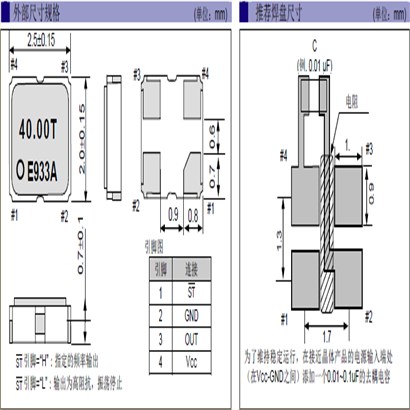

32MHZ,SG-210STF32.0000ML3,EPSON,汽车氛围灯控制器尺寸图

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0041710252	爱普生有源晶振	SG-210STF	60.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710253	爱普生有源晶振	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710254	爱普生有源晶振	SG-210STF	15.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710256	爱普生有源晶振	SG-210STF	13.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710257	爱普生有源晶振	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710262	爱普生有源晶振	SG-210STF	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710263	爱普生有源晶振	SG-210STF	18.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710264	爱普生有源晶振	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710266	爱普生有源晶振	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710268	爱普生有源晶振	SG-210STF	2.048000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710269	爱普生有源晶振	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710278	爱普生有源晶振	SG-210STF	13.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710279	爱普生有源晶振	SG-210STF	15.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710280	爱普生有源晶振	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710281	爱普生有源晶振	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710282	爱普生有源晶振	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710283	爱普生有源晶振	SG-210STF	45.158000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710284	爱普生有源晶振	SG-210STF	49.152000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710287	爱普生有源晶振	SG-210STF	44.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710288	爱普生有源晶振	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710293	爱普生有源晶振	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710294	爱普生有源晶振	SG-210STF	2.457600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710297	爱普生有源晶振	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710298	爱普生有源晶振	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710299	爱普生有源晶振	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710300	爱普生有源晶振	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710304	爱普生有源晶振	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710097	爱普生有源晶振	SG-210STF	5.644800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710098	爱普生有源晶振	SG-210STF	6.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710099	爱普生有源晶振	SG-210STF	6.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710100	爱普生有源晶振	SG-210STF	6.750000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710101	爱普生有源晶振	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710102	爱普生有源晶振	SG-210STF	7.159090 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710103	爱普生有源晶振	SG-210STF	7.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710104	爱普生有源晶振	SG-210STF	8.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710105	爱普生有源晶振	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710106	爱普生有源晶振	SG-210STF	9.600000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710107	爱普生有源晶振	SG-210STF	9.830400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710108	爱普生有源晶振	SG-210STF	15.625000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710109	爱普生有源晶振	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710110	爱普生有源晶振	SG-210STF	16.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710111	爱普生有源晶振	SG-210STF	16.650000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710112	爱普生有源晶振	SG-210STF	16.666500 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710113	爱普生有源晶振	SG-210STF	18.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710114	爱普生有源晶振	SG-210STF	19.440000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710115	爱普生有源晶振	SG-210STF	19.660800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710116	爱普生晶振	SG-210STF	31.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710117	爱普生晶振	SG-210STF	32.768000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710118	爱普生晶振	SG-210STF	33.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710119	爱普生晶振	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710120	爱普生晶振	SG-210STF	33.333300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710121	爱普生晶振	SG-210STF	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710122	爱普生晶振	SG-210STF	66.667000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710124	爱普生晶振	SG-210STF	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710125	爱普生晶振	SG-210STF	74.176000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710126	爱普生晶振	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710127	爱普生晶振	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710128	爱普生晶振	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710136	爱普生晶振	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710140	爱普生晶振	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710141	爱普生晶振	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710144	爱普生晶振	SG-210STF	33.330000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710146	爱普生晶振	SG-210STF	6.780000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710147	爱普生晶振	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710151	爱普生晶振	SG-210STF	66.670000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710152	爱普生晶振	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710153	爱普生晶振	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710154	爱普生晶振	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710155	爱普生晶振	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710156	爱普生晶振	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710159	爱普生晶振	SG-210STF	9.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710162	爱普生晶振	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710163	爱普生晶振	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710164	爱普生晶振	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710165	爱普生晶振	SG-210STF	14.318000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710188	爱普生晶振	SG-210STF	37.125000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710189	爱普生晶振	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710192	爱普生晶振	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710193	爱普生晶振	SG-210STF	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710195	爱普生晶振	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710196	爱普生晶振	SG-210STF	66.660000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710197	爱普生晶振	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710198	爱普生晶振	SG-210STF	16.384000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710199	爱普生晶振	SG-210STF	66.666700 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.600 V	-40 to 105 °C
X1G0041710201	爱普生晶振	SG-210STF	48.896000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710202	爱普生晶振	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710203	爱普生晶振	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710204	爱普生晶振	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710205	爱普生晶振	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710206	爱普生晶振	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710209	爱普生晶振	SG-210STF	2.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710220	爱普生晶振	SG-210STF	33.333333 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710221	爱普生晶振	SG-210STF	66.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710222	爱普生晶振	SG-210STF	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.710 to 3.600 V	-40 to 85 °C
X1G0041710223	爱普生晶振	SG-210STF	7.680000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710225	EPSON晶振	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710226	爱普生晶振	SG-210STF	28.636300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710227	爱普生晶振	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710228	爱普生晶振	SG-210STF	45.158400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710229	爱普生晶振	SG-210STF	30.720000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710232	爱普生晶振	SG-210STF	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.600 V	-40 to 105 °C
X1G0041710238	爱普生晶振	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710239	爱普生晶振	SG-210STF	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.600 V	-40 to 105 °C
X1G0041710241	爱普生晶振	SG-210STF	25.006250 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710242	爱普生晶振	SG-210STF	32.768000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710244	爱普生晶振	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710245	爱普生晶振	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-20 to 70 °C
X1G0041710250	爱普生晶振	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 105 °C
X1G0041710251	爱普生晶振	SG-210STF	66.666600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 3.600 V	-40 to 105 °C
