X1E0003510064\FA2016AN\30MHZ\2016mm\无线蓝牙\10pF

X1E0003510064\FA2016AN\30MHZ\2016mm\无线蓝牙\10pF，尺寸为2016mm,频率为30MHZ,负载电容10pF,EPSON晶振，日本进口晶振，进口爱普生晶振，石英晶振，SMD晶体，无源晶振，石英SMD晶振，无源石英晶振，石英晶体谐振器，小体积晶振，30MHZ无源晶体，高品质晶振，蓝牙晶振，移动电话晶振，无线-局域网专用晶振，MPU时钟专用晶振.

SMD晶振产品主要应用范围：移动电话，蓝牙，无线-局域网，ISM频段电台广播，MPU时钟等领域.X1E0003510064\FA2016AN\30MHZ\2016mm\无线蓝牙\10pF.

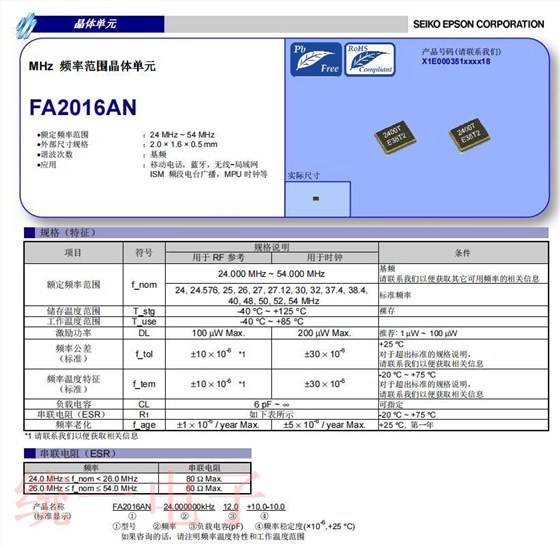

X1E0003510064\FA2016AN\30MHZ\2016mm\无线蓝牙\10pF参数表

项目

符号

规格说明

条件

用于RF参考

用于时钟

额定频率范围

f_nom

24.000 MHz ~ 54.000 MHz

基频
请联系我们以便获取其它可用频率的相关信息

24, 24.576, 25, 26, 27, 27. 12, 30, 32, 37.4, 38.4,
40, 48, 50, 52, 54 MHz

标准频率

储存温度范围

T_stg

-40°C ~ +125°C

裸存

工作温度范围

T_use

-40°C ~ +85°C

激励功率

100µW Max.

200µW Max.

推荐:1µW ~ 100µW

频率公差
(标准)

f_tol

±10×10-6*1

±30×10-6

+25°C
对于超出标准的规格说明，
请联系我们以便获取相关信息

频率温度特征
(标准)

f_tem

±10×10-6*1

±30×10-6

-20°C ~ +75°C
对于超出标准的规格说明，
请联系我们以便获取相关信息

负载电容

6 pF ~∞

可指定

串联电阻(ESR)

如下表所示

-20°C ~ +75°C

频率老化

f_age

±1×10-6/ year Max.

±5×10-6/ year Max.

+25°C,第一年

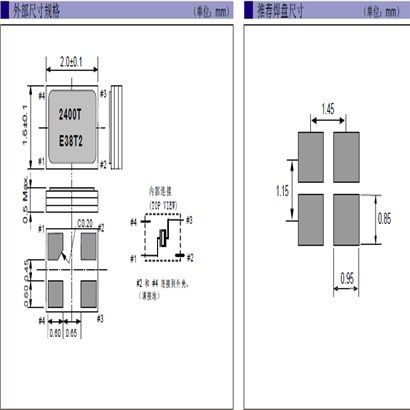

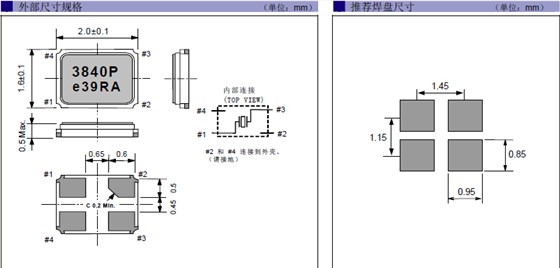

X1E0003510064\FA2016AN\30MHZ\2016mm\无线蓝牙\10pF 尺寸图

X1E0003510064晶振特点

.额定频率范围：：24MHz~54MHz

.外部尺寸规格：2.0×1.6×0.5mm

.谐波次数：基频

更多相关日本EPSON晶振型号

编码	尺寸	型号	频率	负载	频率 @+25°C	工作温度
X1E0003510001	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
X1E0003510002	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
X1E0003510006	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-20 ppm	-20 to +75 °C
X1E0003510014	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0003510015	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510016	2 x 1.6 x 0.5mm	FA2016AN	24.576000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510017	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
X1E0003510018	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm	-20 to +85 °C
X1E0003510019	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	10 pF	+/-30 ppm	-20 to +70 °C
X1E0003510020	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm	-30 to +70 °C
X1E0003510021	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-30 ppm	-30 to +75 °C
X1E0003510022	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
X1E0003510023	2 x 1.6 x 0.5mm	FA2016AN	37.400000 MHz	9 pF	+/-10 ppm	-30 to +85 °C
X1E0003510024	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0003510025	2 x 1.6 x 0.5mm	FA2016AN	40.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0003510026	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	8 pF	+/-30 ppm	-30 to +85 °C
X1E0003510027	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510028	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
X1E0003510029	2 x 1.6 x 0.5mm	FA2016AN	52.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510030	2 x 1.6 x 0.5mm	FA2016AN	54.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0003510033	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
X1E0003510038	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm	-20 to +85 °C
X1E0003510044	2 x 1.6 x 0.5mm	FA2016AN	49.152000 MHz	6 pF	+/-20 ppm	-20 to +70 °C
X1E0003510049	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0003510050	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0003510052	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-20 ppm	-20 to +95 °C
X1E0003510059	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	16 pF	+/-30 ppm	-40 to +85 °C
X1E0003510060	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0003510062	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510063	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
X1E0003510064	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0003510065	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
X1E0003510066	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	6 pF	+/-20 ppm	-20 to +75 °C
X1E0003510067	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0003510068	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm	-20 to +70 °C
X1E0003510069	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	6 pF	+/-10 ppm	-40 to +105 °C
X1E0003510070	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
X1E0003510071	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	8 pF	+/-30 ppm	-30 to +85 °C
X1E0003510073	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm	-40 to +105 °C
X1E0003510074	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0003510075	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-10 ppm	-30 to +85 °C
