SWS144,SWS14412D48B-32.768K,Suntsu测量仪器晶振

产品简介

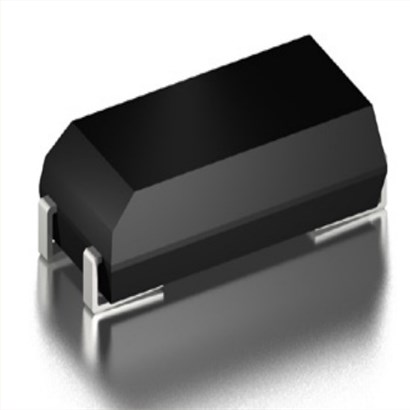

SWS144,SWS14412D48B-32.768K,Suntsu测量仪器晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SWS144，编码为：SWS14412D48B-32.768K，频率为：32.768KHz，负载电容：12.5pF，频率稳定性：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：10.4mmx4.06mm陶瓷SMD封装，陶瓷谐振器，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，手表晶体，无铅晶振，SMD石英晶体。具有小体积，轻薄型，高性能，高品质，耐热及耐环境特点。应用于：实时时钟晶振，仪器仪表设备晶振，数字显示晶振，测试和测量设备，无线应用等。

产品详情

20180421171456_6296统一

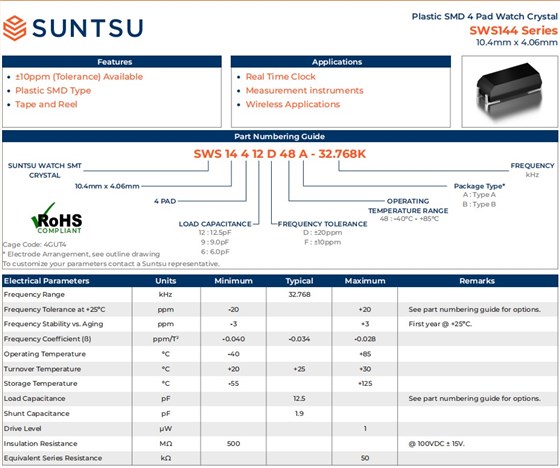

SWS144,SWS14412D48B-32.768K,Suntsu测量仪器晶振,参数表

Electrical Parameters	Minimum	Typical	Maximum	Units	Remarks
Frequency Range		32.768		kHz
Frequency Tolerance at +25ºC	-20		+20	ppm	See part numbering guide for options.
Frequency Stability vs. Aging	-3		+3	ppm	First year @ +25ºC.
Frequency Coefficient (?)	-0.040	-0.034	-0.028	ppm/T2
Operating Temperature	-40		+85	°C
Turnover Temperature	+20	+25	+30	°C
Storage Temperature	-55		+125	°C
Load Capacitance		12.5		pF	See part numbering guide for options.
Shunt Capacitance		1.9		pF
Drive Level			1	µW
Insulation Resistance	500			MΩ	@ 100VDC ± 15V.
Equivalent Series Resistance			50	kΩ

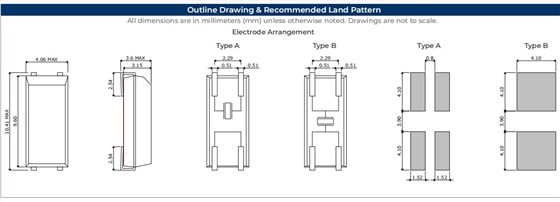

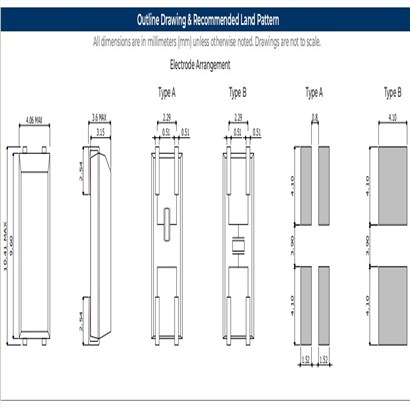

SWS144,SWS14412D48B-32.768K,Suntsu测量仪器晶振,尺寸图

晶振编码	型号	频率	负载	频率稳定度	工作温度
SWS11212D16-32.768K	SWS112	32.768K	12.5pF	±20ppm	-10℃ - +60℃
SWS11212D48-32.768K	SWS112	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS1127D48-32.768K	SWS112	32.768K	7pF	±20ppm	-40℃ - +85℃
SWS1129D16-32.768K	SWS112	32.768K	9pF	±20ppm	-10℃ - +60℃
SWS1129D48-32.768K	SWS112	32.768K	9pF	±20ppm	-40℃ - +85℃
SWS14412D48A-32.768K	SWS144	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS14412D48B-32.768K	SWS144	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS1446D48A-32.768K	SWS144	32.768K	6pF	±20ppm	-40℃ - +85℃
SWS1446D48B-32.768K	SWS144	32.768K	6pF	±20ppm	-40℃ - +85℃
SWS1449D48A-32.768K	SWS144	32.768K	9pF	±20ppm	-40℃ - +85℃
SWS21212D48-32.768K	SWS212	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS2129F48-32.768K	SWS212	32.768K	9pF	±10ppm	-40℃ - +85℃
SWS31212D16-32.768K	SWS312	32.768K	12.5pF	±20ppm	-10℃ - +60℃
SWS31212D48-32.768K	SWS312	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS3126D16-32.768K	SWS312	32.768K	6pF	±20ppm	-10℃ - +60℃
SWS3126D48-32.768K	SWS312	32.768K	6pF	±20ppm	-40℃ - +85℃
SWS3127D16-32.768K	SWS312	32.768K	7pF	±20ppm	-10℃ - +60℃
SWS3127D48-32.768K	SWS312	32.768K	7pF	±20ppm	-40℃ - +85℃
SWS3129D16-32.768K	SWS312	32.768K	9pF	±20ppm	-10℃ - +60℃
SWS3129D48-32.768K	SWS312	32.768K	9pF	±20ppm	-40℃ - +85℃
SWS41212D16-32.768K	SWS412	32.768K	12.5pF	±20ppm	-10℃ - +60℃
SWS41212D48-32.768K	SWS412	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS51212D16-32.768K	SWS512	32.768K	12.5pF	±20ppm	-10℃ - +60℃
SWS5127D16-32.768K	SWS512	32.768K	7pF	±20ppm	-10℃ - +60℃
SWS5129D16-32.768K	SWS512	32.768K	9pF	±20ppm	-10℃ - +60℃
SWS61412D48-32.768K	SWS614	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS83412D16-32.768K	SWS834	32.768K	12.5pF	±20ppm	-10℃ - +60℃
SWS83412D48-32.768K	SWS834	32.768K	12.5pF	±20ppm	-40℃ - +85℃
SWS8346D16-32.768K	SWS834	32.768K	6pF	±20ppm	-10℃ - +60℃
SWS8346D48-32.768K	SWS834	32.768K	6pF	±20ppm	-40℃ - +85℃
SWS8347D16-32.768K	SWS834	32.768K	7pF	±20ppm	-10℃ - +60℃
SWS8347D48-32.768K	SWS834	32.768K	7pF	±20ppm	-40℃ - +85℃
SWS8349D16-32.768K	SWS834	32.768K	9pF	±20ppm	-10℃ - +60℃
SWS8349D48-32.768K	SWS834	32.768K	9pF	±20ppm	-40℃ - +85℃
