QTC5B19.2000FCT3E30R,QTC5B,5032mm,19.2M,Quarztechnik无线晶振，德国进口晶振，Quarztechnik晶振，夸克无源晶振，型号：QTC5B，编码为：QTC5B19.2000FCT3E30R，频率为：19.200MHz，是一款小体积晶振，尺寸：5.0x3.2mm，陶瓷封装和金属盖确保高可靠性，两脚贴片晶振，石英晶振，5032晶振，无源晶振，石英晶体谐振器，SMD晶振，无铅晶振，具有紧密的公差和稳定性，超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。高度低，适用于薄型设备，高密度应用，汽车电子晶振，调制解调器、通信和测试设备，MCIA，无线应用，汽车应用，通讯设备，无线网络，智能家居等。

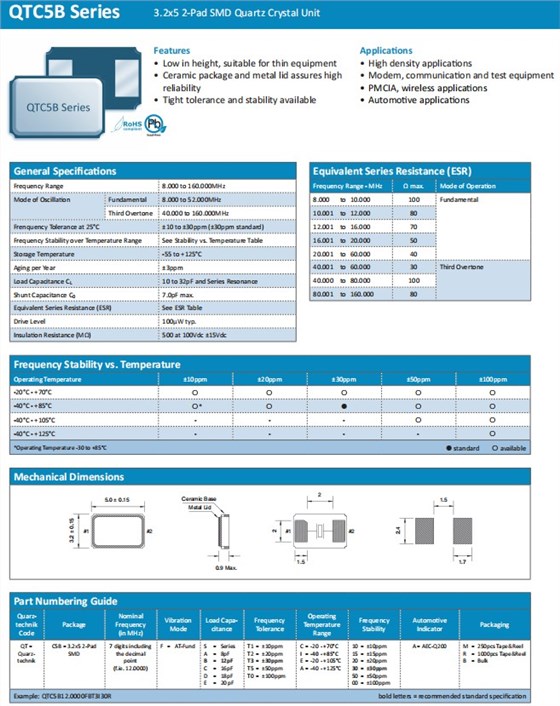

QTC5B19.2000FCT3E30R,QTC5B,5032mm,19.2M,Quarztechnik无线晶振参数表
| Frequency Range | 19.200 MHz | |
| Mode of Oscillation | Fundamental | 8.000 to 52.000MHz |
| Third Overtone | 40.000 to 160.000MHz | |
| Frenquency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | |
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | |
| Storage Temperature | -55 to +125°C | |
| Aging per Year | ±3ppm max. | |
| Load Capacitance CL | 10 to 32pF and Series Resonance | |
| Shunt Capacitance C0 | 7.0pF max. | |
| Equivalent Series Resistance (ESR) | See ESR Table | |
| Drive Level | 100μW max. | |
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc |
|

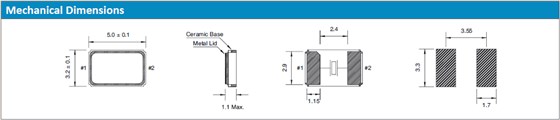

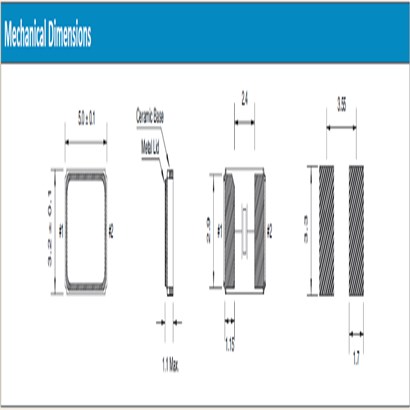

QTC5B19.2000FCT3E30R,QTC5B,5032mm,19.2M,Quarztechnik无线晶振,尺寸图

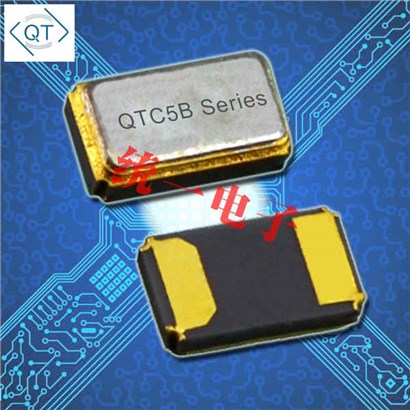

QTC5B19.2000FCT3E30R,QTC5B,5032mm,19.2M,Quarztechnik无线晶振
产品特点：
外形尺寸：5.0x3.2mm石英晶振
频率范围：8.000MHz~160.000MHz
高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性
应用程序：
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用
汽车应用
| 进口晶振 | 频率 | 负载电容 | 精度 | 稳定性 | 工作温度范围 |
| QTC7A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A10.0000FDT1I20M | 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.31818FDT1I20M | 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A19.6608FDT1I20M | 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A8.00000FDT1I20M | 8.0 MHz谐振器 | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.2880FDT1I20M | 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A15.3600FDT1I20M | 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A18.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A24.5760FDT1I20M | 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A30.0000FDT1I20M | 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A40.0000FDT1I20M | 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A48.0000FDT1I20M | 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3216.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3218.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3220.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3224.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3225.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3227.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
