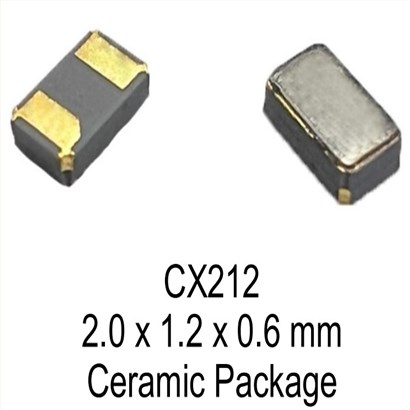

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX212系列晶振，编码为：CX212Z-A2C590-32.768D12.5，频率为：32.768K晶振，小体积晶振尺寸：2.0x1.2x0.6mm封装，两脚贴片晶振，石英晶体，2012晶振，手表晶体，SMD晶振，无源晶振，石英晶体谐振器，微型低剖面表面贴装水晶表，包装是自动表面安装的理想选择，组装和回流实践，磁带和卷轴包装。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。石英晶振，被广泛应用于：钟表电子，时钟晶振，仪器仪表设备，智能手机，平板电脑，通讯设备，无线蓝牙，智能门锁，智能水电表，计时器晶振，数字显示，电视机等应用。

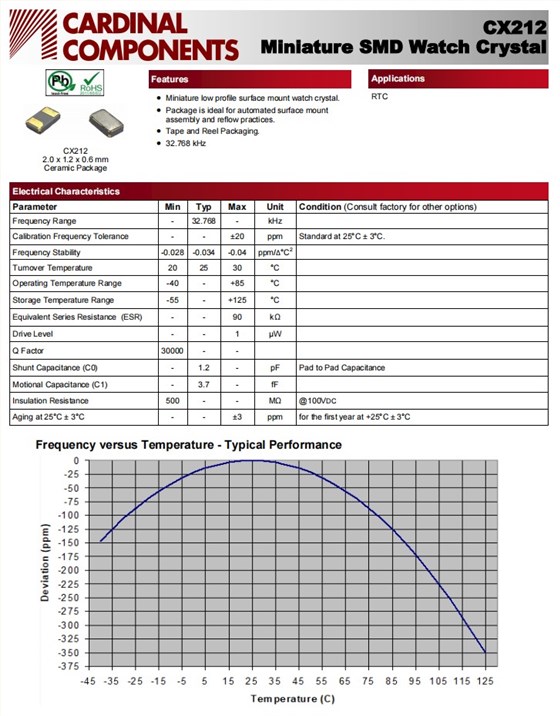

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体参数表
Parameter
Min
Typ
Max
Unit
Condition(Consult factory for other options)
Frequency Range
-
32.768
-
kHz
Calibration Frequency Tolerance
-
-
±20
ppm
Standard at 25°C ± 3°C.
Frequency Stability
-0.028
-0.034
-0.04
ppm/Δ°C2
Turnover Temperature
20
25
30
°C
Operating Temperature Range
-40
-
+85
°C
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance(ESR)
-
-
90
kΩ
Drive Level
-
-
1
µW
Q Factor
30000
-
-
Shunt Capacitance (C0)
-
1.2
-
pF
Pad to Pad Capacitance
Motional Capacitance (C1)
-
3.7
-
fF
Insulation Resistance
500
-
-
MΩ
@100VDC
Aging at 25°C ± 3°C
-
-
±3
ppm
for the first year at +25°C ± 3°C

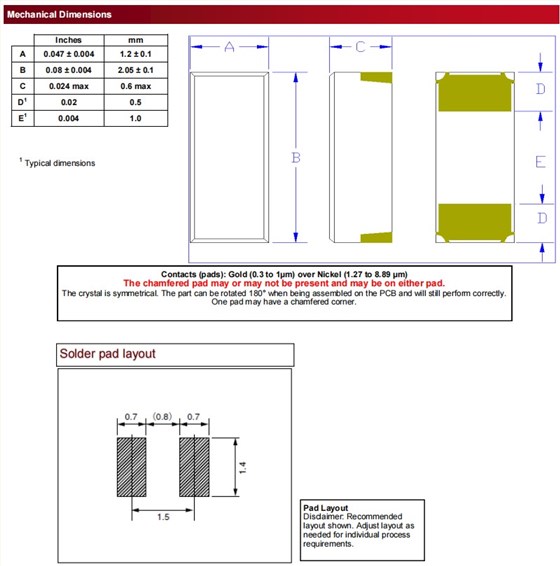

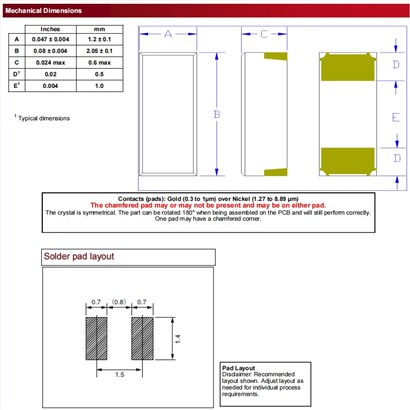

Cardinal实时时钟晶振,CX212Z-A2C590-32.768D12.5,手表晶体尺寸图
| 晶振编码 | 厂家 | 型号 | 系列 | 频率 | 频率稳定度 |
| CTF6-A2C5-32.768KD12.5 | Cardinal晶振 | CTF6 | kHz Crystal (Tuning Fork) | 32.768kHz | - |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz | ±50ppm |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CX532 | MHz Crystal | 12.288MHz | ±30ppm |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 16MHz | ±30ppm |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz | ±50ppm |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CX325 | MHz Crystal | 20MHz | ±50ppm |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CX635A | MHz Crystal | 18.432MHz | ±50ppm |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 12MHz | ±30ppm |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 27MHz | ±50ppm |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz | ±50ppm |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CX5 | MHz Crystal | 24.576MHz | ±50ppm |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz | ±50ppm |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz | ±50ppm |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz | ±50ppm |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz | ±50ppm |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz | ±50ppm |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CX532 | MHz Crystal | 19.6608MHz | ±30ppm |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 33MHz | ±30ppm |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 27MHz | ±30ppm |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 20MHz | ±30ppm |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CX532 | MHz Crystal | 14.7456MHz | ±30ppm |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 12MHz | ±30ppm |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 50MHz | ±30ppm |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 30MHz | ±30ppm |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 27MHz | ±30ppm |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±50ppm |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±30ppm |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 20MHz | ±30ppm |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz | ±50ppm |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz | ±50ppm |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 8MHz | ±30ppm |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz | ±50ppm |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz | ±50ppm |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz | ±50ppm |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz | ±50ppm |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CX635B | MHz Crystal | 14.31818MHz | ±50ppm |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CX532 | MHz Crystal | 18.432MHz | ±30ppm |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±30ppm |
