6G通讯模块晶振,433-26.0M-3GNTTS,奥斯康利低抖动振荡器

产品简介

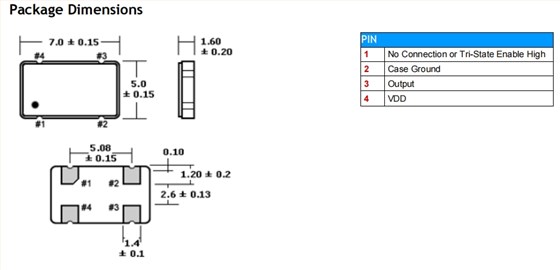

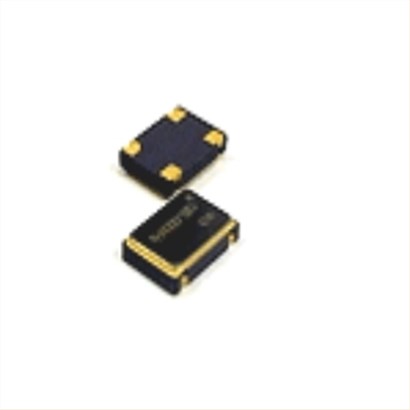

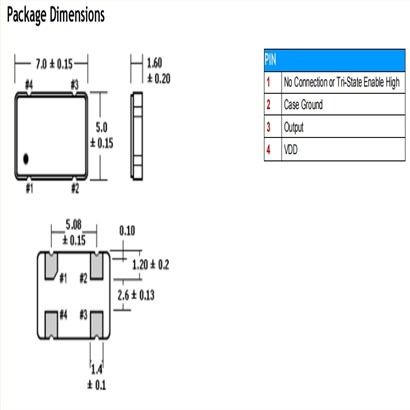

6G通讯模块晶振,433-26.0M-3GNTTS,奥斯康利低抖动振荡器，尺寸7.0×5.0mm，频率26MHZ，Oscilent有源振荡器，有源贴片晶振，四脚贴片晶振，石英晶体振荡器，7050mm有源晶振，时钟晶体振荡器，OSC贴片晶振，绿色环保晶振，低抖动有源晶振，低功耗有源晶振，低电压有源晶振，智能家居专用晶振，仪器设备晶振，测试测量专用晶振，路由器专用晶振，6G通讯模块专用晶振，无线应用专用晶振，具有低抖动低电压的特点。

有源晶振产品非常适合用于智能家居，仪器设备，测试测量振，路由器，6G通讯模块，无线应用等领域。6G通讯模块晶振,433-26.0M-3GNTTS,奥斯康利低抖动振荡器.

产品详情

有源晶振产品非常适合用于智能家居，仪器设备，测试测量振，路由器，6G通讯模块，无线应用等领域。6G通讯模块晶振,433-26.0M-3GNTTS,奥斯康利低抖动振荡器.6G通讯模块晶振,433-26.0M-3GNTTS,奥斯康利低抖动振荡器 参数表

Parameter	Conditions	Characteristics		Units
Output Logic	-	HCMOS / TTL Output		-
Input Voltage (VDD)	-	3.3±10%	5.0±10%	VDC
Frequency Range (fO)	-	26		MHz
Operating	-	0 ~ +70 (Std.) / -40 ~ 85 (Option)		°C
Temperature (TOPR)
Storage Temperature	TSTG	-55 ~ +125		°C
(TSTG)
Frequency Stability	a + b + c + d	±25, ±50, ±100 max.		PPM
	(a) Frequency Tolerance	Inclusive of Overall Stability		-
	(b) Temperature Stability	Inclusive of Overall Stability (Operating		-
		Temperature)
	(c) Input Voltage Stability	Inclusive of Overall Stability (VDD ±10%)		-
	(d) Load Stability	Inclusive of Overall Stability (RL ±5%)		-
Input Current (IDD)	-	12 ~ 60 max.	25 ~ 100 max.	mA
Aging	@ 25°C	±5 max.		PPM/Y
Rise Time (TR) / Fall	-	8 max. (0.4V to 2.4V w/ TTL, 20% ~ 80%		nS
Time (TF)		/ HCMOS)
PIN 1 Tri-State	-	Option		-
Output Voltage High	TTL Load	2.4 min		VDC
"1" VOH	HCMOS Load	2.7 min.	VDD-0.5 min.
Output Voltage Low	TTL Load	0.4 max.		VDC
"0" VOL	HCMOS Load	0.5 max.
Duty Cycle	-	50 ±10 (Std.) / 50 ±5 (Option)		%
Start-Up Time (TS)	1~ 35 MHz	4 max.		mS
	35 ~ 125.000 MHz	10 max.
Jitter	(Bandwidth 12Khz ~ 20Mhz)	±1		ps RMS
