WX501系列小体积尺寸5032mm晶振,WX5011A0050.000000,CMOS晶体振荡器,ECERA四脚贴片晶振

2022-07-15 16:54:17 统一电子

亚陶晶振WX501 XO系列是具有极低抖动性能的高性能CMOS晶体振荡器系列。WX501系列小体积尺寸5.0x3.2mm、PLL CMOS晶体振荡器，它支持各种选项，包括更宽的频率范围、2.5/3.3电压、各种稳定性和不同的封装尺寸。它旨在满足通信系统和其他高性能设备的时钟源规范。

特征：
非常低的相位抖动-1.0ps RMS
更厚的晶体以提高可靠性
工业温度范围
无铅且符合RoHS标准
应用：
网络系统
服务器和存储系统
专业视频设备
测试和测量
FPGA/ASIC时钟生成

WX501系列小体积尺寸5032mm晶振,WX5011A0050.000000,CMOS晶体振荡器,ECERA四脚贴片晶振

FN3270028 Diodes Incorporated SaRonix-eCera™ FN 32.768MHz ±25ppm -40°C ~ 85°C
FN3600001 Diodes Incorporated SaRonix-eCera™ FN 36MHz ±25ppm -40°C ~ 85°C
FN3600019 Diodes Incorporated SaRonix-eCera™ FN 36MHz ±25ppm -40°C ~ 85°C
FN3710001 Diodes Incorporated SaRonix-eCera™ FN 37.125MHz ±25ppm -40°C ~ 85°C
FN3840008 Diodes Incorporated SaRonix-eCera™ FN 38.4MHz ±20ppm -20°C ~ 70°C
FN4000162 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±20ppm -20°C ~ 70°C
FN4800077 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±25ppm -40°C ~ 85°C
FN5000118 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±25ppm -40°C ~ 85°C
FN6660075 Diodes Incorporated SaRonix-eCera™ FN 66.67MHz ±25ppm -40°C ~ 85°C
FN6660076 Diodes Incorporated SaRonix-eCera™ FN 66.66MHz ±25ppm -40°C ~ 85°C
FNA620051 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -20°C ~ 70°C
FND330009 Diodes Incorporated SaRonix-eCera™ FN 133.33MHz ±50ppm -20°C ~ 70°C
SXF000007 Diodes Incorporated SaRonix-eCera™ SX 150MHz ±50ppm -20°C ~ 70°C
SXF550007 Diodes Incorporated SaRonix-eCera™ SX 155.52MHz ±50ppm -20°C ~ 70°C
SXF620007 Diodes Incorporated SaRonix-eCera™ SX 156.25MHz ±50ppm -20°C ~ 70°C
UM2600002 Diodes Incorporated SaRonix-eCera™ UM 26MHz ±50ppm -30°C ~ 85°C
NX3261E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
FN6660077 Diodes Incorporated SaRonix-eCera™ FN 66.666MHz ±25ppm -20°C ~ 70°C
FN6660079 Diodes Incorporated SaRonix-eCera™ FN 66.667MHz ±50ppm -20°C ~ 70°C
FN6660080 Diodes Incorporated SaRonix-eCera™ FN 66.667MHz ±50ppm -40°C ~ 85°C
FN7000003 Diodes Incorporated SaRonix-eCera™ FN 70MHz ±50ppm -40°C ~ 85°C
FN7200004 Diodes Incorporated SaRonix-eCera™ FN 72MHz ±50ppm -20°C ~ 70°C
FN7400001 Diodes Incorporated SaRonix-eCera™ FN 74MHz ±50ppm -20°C ~ 70°C
FN7420006 Diodes Incorporated SaRonix-eCera™ FN 74.25MHz ±50ppm -20°C ~ 70°C
FN7500038 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±50ppm -20°C ~ 70°C
FN7500039 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C

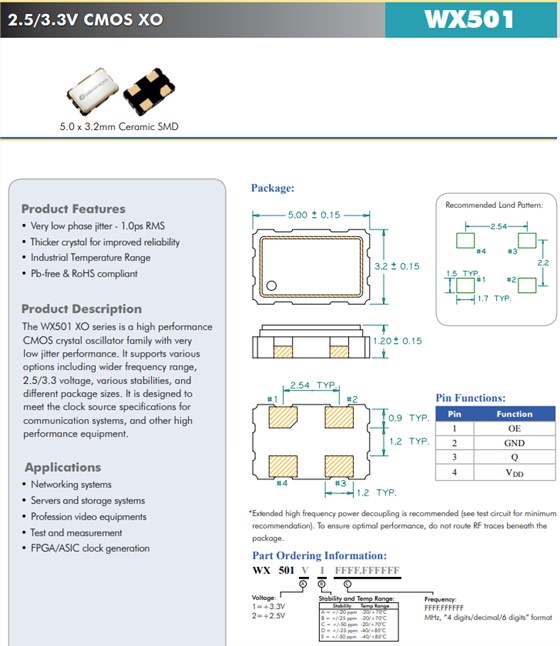

QQ截图20220715093814

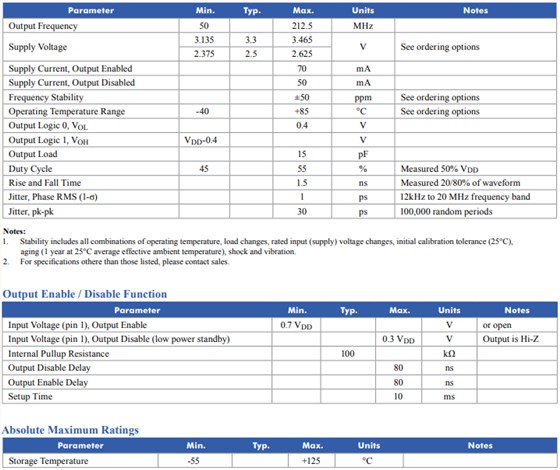

QQ截图20220715093854

FN7500045 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±50ppm -40°C ~ 85°C
FN7500046 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FN7770021 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±50ppm -40°C ~ 85°C
FN7770022 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±50ppm -40°C ~ 85°C
FN7770023 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±50ppm -20°C ~ 70°C
FN7770024 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±25ppm -20°C ~ 70°C
FN7770025 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±50ppm -20°C ~ 70°C
FN7770026 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±25ppm -20°C ~ 70°C
NX5061E0156.250000 Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -40°C ~ 85°C
YNWMAX153 Diodes Incorporated SaRonix-eCera™ YN 153.6MHz ±35ppm -40°C ~ 85°C
NX3232E0156.250000 Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -40°C ~ 85°C
SXF000005 Diodes Incorporated SaRonix-eCera™ SX 150MHz ±50ppm -40°C ~ 85°C
SXF550009 Diodes Incorporated SaRonix-eCera™ SX 155.52MHz ±50ppm -40°C ~ 85°C
SXF620003 Diodes Incorporated SaRonix-eCera™ SX 156.25MHz ±50ppm -40°C ~ 85°C
FDC500016 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±20ppm -20°C ~ 70°C
FDC500019 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±20ppm -20°C ~ 70°C
UM2600001 Diodes Incorporated SaRonix-eCera™ UM 26MHz ±20ppm -30°C ~ 85°C
FRSONT077 Diodes Incorporated SaRonix-eCera™ FR 77.76MHz ±50ppm -40°C ~ 85°C
SXF550011 Diodes Incorporated SaRonix-eCera™ SX 155.52MHz ±20ppm -20°C ~ 70°C
FN6660081 Diodes Incorporated SaRonix-eCera™ FN 66.667MHz ±25ppm -40°C ~ 85°C
FN7410004 Diodes Incorporated SaRonix-eCera™ FN 74.175MHz ±25ppm -40°C ~ 85°C
FN7420007 Diodes Incorporated SaRonix-eCera™ FN 74.25MHz ±25ppm -40°C ~ 85°C
FN7770028 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±25ppm -40°C ~ 85°C
FN7770029 Diodes Incorporated SaRonix-eCera™ FN 77.76MHz ±20ppm -20°C ~ 70°C
FN8000056 Diodes Incorporated SaRonix-eCera™ FN 80MHz ±50ppm -40°C ~ 85°C


Product Parameters

Subfamily General XO
Product Series WX5
Compliance(Only Automotive supports PPAP) Standard
Freq Range (MHz) 50 to 212.5
Jitter RMS (ps) <1
Stability (PPM) 20to50
Package Size (mm) 5.0 x 3.2
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 3.3, 2.5
Pads 4

WX501系列小体积尺寸5032mm晶振,WX5011A0050.000000,CMOS晶体振荡器,ECERA四脚贴片晶振

产品参数：

类别 XO将军
产品系列 WX5
合规性（仅汽车支持PPAP）标准
频率范围 (MHz) 50至212.5
抖动均方根 (ps) <1
稳定性 (PPM) 20到50PPM
包装尺寸 5.0x3.2mm有源晶振

包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 3.3V, 2.5V
垫 4脚

FN8000059 Diodes Incorporated SaRonix-eCera™ FN 80MHz ±50ppm -20°C ~ 70°C
FN8330020 Diodes Incorporated SaRonix-eCera™ FN 83.33MHz ±50ppm -40°C ~ 85°C
FN8500004 Diodes Incorporated SaRonix-eCera™ FN 85MHz ±50ppm -20°C ~ 70°C
FN9000013 Diodes Incorporated SaRonix-eCera™ FN 90MHz ±50ppm -20°C ~ 70°C
FN9600006 Diodes Incorporated SaRonix-eCera™ FN 96MHz ±25ppm -20°C ~ 70°C
FN9830014 Diodes Incorporated SaRonix-eCera™ FN 98.304MHz ±50ppm -20°C ~ 70°C
FNA000068 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000070 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -20°C ~ 70°C
FNA000071 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000072 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -20°C ~ 70°C
FNA000073 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA620047 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -20°C ~ 70°C
FNA620048 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±25ppm -20°C ~ 70°C
FNA620049 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -40°C ~ 85°C
FNA620050 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±25ppm -20°C ~ 70°C
FNA620052 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -40°C ~ 85°C
FNA800007 Diodes Incorporated SaRonix-eCera™ FN 108MHz ±50ppm -20°C ~ 70°C
FNA800008 Diodes Incorporated SaRonix-eCera™ FN 108MHz ±25ppm -20°C ~ 70°C
FNC500106 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±25ppm -20°C ~ 70°C
FNC500126 Diodes Incorporated SaRonix-eCera™ FN 125.001MHz ±25ppm -20°C ~ 70°C
FNC500128 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -20°C ~ 70°C
FNC500130 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500132 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±25ppm -20°C ~ 70°C
FNC500138 Diodes Incorporated SaRonix-eCera™ FN 125.003MHz ±25ppm -20°C ~ 70°C
FNC510001 Diodes Incorporated SaRonix-eCera™ FN 125.12Mhz ±50ppm -40°C ~ 85°C

WX501系列小体积尺寸5032mm晶振,WX5011A0050.000000,CMOS晶体振荡器,ECERA四脚贴片晶振

WX501 标准 CMOS 3.32.5 20~50 50至212.5 <1 4 - 2.5V/3.3V、5.0x3.2mm、PLL CMOS晶体振荡器
WX502 标准 PECL 3.32.5 20~50 50至212.5 <1 6 - 2.5V/3.3V、5.0x3.2mm、PLL LVPECL晶体振荡器
WX503 标准 LVDS 3.32.5 20~50 50至212.5 <1 6 - 2.5V/3.3V、5.0x3.2mm、PLL LVDS晶体振荡器
WX701 标准 CMOS 3.32.5 20~50 50至212.5 <1 4 - 2.5V/3.3V, 7.0x5.0mm, PLL CMOS晶体振荡器
WX702 标准PECL3.32.5 20~50 50至212.5 <1 6 - 2.5V/3.3V、7.0x5.0mm、PLL LVPECL晶体振荡器

FNC700004 Diodes Incorporated SaRonix-eCera™ FN 127MHz ±50ppm -20°C ~ 70°C
FND300015 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±25ppm -20°C ~ 70°C
FND300017 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±50ppm -20°C ~ 70°C
FND300020 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±50ppm -40°C ~ 85°C
FND330007 Diodes Incorporated SaRonix-eCera™ FN 133.333MHz ±50ppm -20°C ~ 70°C
PBF000008 Diodes Incorporated SaRonix-eCera™ PB 150MHz ±50ppm -20°C ~ 70°C
PBF550004 Diodes Incorporated SaRonix-eCera™ PB 155.52MHz ±50ppm -20°C ~ 70°C
PBF930003 Diodes Incorporated SaRonix-eCera™ PB 159.375MHz ±50ppm -20°C ~ 70°C
PBG110003 Diodes Incorporated SaRonix-eCera™ PB 161.133MHz ±50ppm -20°C ~ 70°C
PD5000002 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm -20°C ~ 70°C
PD5000004 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm -20°C ~ 70°C
PD6250003 Diodes Incorporated SaRonix-eCera™ PD 62.5MHz ±50ppm -20°C ~ 70°C
PD7500001 Diodes Incorporated SaRonix-eCera™ PD 75MHz ±50ppm -20°C ~ 70°C
PD7770001 Diodes Incorporated SaRonix-eCera™ PD 77.76MHz ±50ppm -20°C ~ 70°C
PDA620003 Diodes Incorporated SaRonix-eCera™ PD 106.25MHz ±50ppm -20°C ~ 70°C
PDC500003 Diodes Incorporated SaRonix-eCera™ PD 125MHz ±50ppm -20°C ~ 70°C
PDF000003 Diodes Incorporated SaRonix-eCera™ PD 150MHz ±50ppm -20°C ~ 70°C
PDF550003 Diodes Incorporated SaRonix-eCera™ PD 155.52MHz ±50ppm -20°C ~ 70°C
PDF620003 Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -20°C ~ 70°C
PDF930002 Diodes Incorporated SaRonix-eCera™ PD 159.375MHz ±50ppm -20°C ~ 70°C
PDG110003 Diodes Incorporated SaRonix-eCera™ PD 161.133MHz ±50ppm -20°C ~ 70°C
PXA620006 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -20°C ~ 70°C
PXA620008 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -20°C ~ 70°C
PXF000010 Diodes Incorporated SaRonix-eCera™ PX 150MHz ±50ppm -20°C ~ 70°C
PXF000011 Diodes Incorporated SaRonix-eCera™ PX 150MHz ±50ppm -20°C ~ 70°C

DIODES百利通亚陶晶振所生产的石英晶振,贴片晶振,石英晶体振荡器,压电石英晶体元器件、压电石英晶体、有源晶体广泛应用于智能设备,汽车电子,无线通讯,网络通信,精密仪器,GPS卫星,网络控制器,全球GPS定位系统等领域.工程、销售、仓储和物流办事处设在台北,香港、曼彻斯特、上海、深圳、中国、韩国、慕尼黑、德国、以及世界各地的支持办事处.WX501系列小体积尺寸5032mm晶振,WX5011A0050.000000,CMOS晶体振荡器,ECERA四脚贴片晶振
