无人机专用节省PCB空间的TCXO晶振TYETBLSANF-38.400000

2023-04-12 14:30:55

无人机专用节省PCB空间的TCXO晶振TYETBLSANF-38.400000,The small form factor of Taitien’s TY series with package size as small as 2.5 x 2.0 x 0.7mm3 can save the PCB space. It is the best fit for equipment miniaturization design. Its frequency stability can reach as low as ±0.5ppm under an operation temperature between -40°C and +85°C.

With a frequency range from 9.5MHz to 60MHz, such as TY-J type. It can cover most of the RF, wireless communication and drone applications requirements. Both voltage controlled and standard TCXO options are supported in the TY series. Standard frequencies include 16.369MHz, 19.2MHz, 26MHz, 38.4MHz, 48MHz, 50MHz and 60MHz with a wide range supply voltage from 1.8V to 3.3V. TY series is best fit for GNSS and satellite communication applications.

泰艺晶振公司发布TY系列外形尺寸小,封装尺寸小至2.5 x 2.0 x 0.7mm的进口TCXO晶振,节省PCB空间。最适合设备小型化设计。在-40°C至+85°C的工作温度下,其频率稳定性可低至±0.5ppm。

TYKTALSANF-26.000000 11

无人机专用节省PCB空间的TCXO晶振TYETBLSANF-38.400000,频率范围从9.5MHz到60MHz,如TY-J型。它可以覆盖大部分射频、无线通信和无人机应用需求。TY系列支持电压控制和标准TCXO温补晶振选项。标准频率为16.369MHz、19.2MHz、26MHz、38.4MHz、48MHz、50MHz、60MHz,供电电压范围为1.8V ~ 3.3V。TY系列最适合GNSS和卫星通信应用。

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Type 类型 Frequency 频率 Voltage - Supply电压
VTEUALJANF-30.720000 Taitien VT VCXO 30.72MHz 3.3V
VTEUALJANF-30.720000 Taitien VT VCXO 30.72MHz 3.3V
VTEUALJANF-30.720000 Taitien VT VCXO 30.72MHz 3.3V
VTEUPCJANF-38.880000 Taitien VT VCXO 38.88MHz 3.3V
VTEUPCJANF-38.880000 Taitien VT VCXO 38.88MHz 3.3V
VTEUPCJANF-38.880000 Taitien VT VCXO 38.88MHz 3.3V
TXETADSANF-26.000000 Taitien TX TCXO 26MHz 2.8 V ~ 3.3 V
TXETADSANF-26.000000 Taitien TX TCXO 26MHz 2.8 V ~ 3.3 V
TXETADSANF-26.000000 Taitien TX TCXO 26MHz 2.8 V ~ 3.3 V
TYETBCSANF-32.000000 Taitien TY TCXO 32MHz 2.8 V ~ 3.3 V
TYETBCSANF-32.000000 Taitien TY TCXO 32MHz 2.8 V ~ 3.3 V
TYETBCSANF-32.000000 Taitien TY TCXO 32MHz 2.8 V ~ 3.3 V
TXETALSANF-10.000000 Taitien TX TCXO 10MHz 2.8 V ~ 3.3 V
TXETALSANF-10.000000 Taitien TX TCXO 10MHz 2.8 V ~ 3.3 V
TXETALSANF-10.000000 Taitien TX TCXO 10MHz 2.8 V ~ 3.3 V
TYETBLSANF-38.400000 Taitien TY TCXO 38.4MHz 2.8 V ~ 3.3 V
TYETBLSANF-38.400000 Taitien TY TCXO 38.4MHz 2.8 V ~ 3.3 V
TYETBLSANF-38.400000 Taitien TY TCXO 38.4MHz 2.8 V ~ 3.3 V
TXETADSANF-16.369000 Taitien TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TXETADSANF-16.369000 Taitien TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TXETADSANF-16.369000 Taitien TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TXETALSANF-16.369000 Taitien TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TXETALSANF-16.369000 Taitien TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TXETALSANF-16.369000 TAITIEN晶振 TX TCXO 16.369MHz 2.8 V ~ 3.3 V
TYEAPCSANF-16.367667 Taitien TY VCTCXO 16.367667MHz 2.8 V ~ 3.3 V
TYEAPCSANF-16.367667 Taitien TY VCTCXO 16.367667MHz 2.8 V ~ 3.3 V
TYEAPCSANF-16.367667 Taitien TY VCTCXO 16.367667MHz 2.8 V ~ 3.3 V
TYEAPCSANF-40.000000 Taitien TY VCTCXO 40MHz 2.8 V ~ 3.3 V
TYEAPCSANF-40.000000 Taitien TY VCTCXO 40MHz 2.8 V ~ 3.3 V
TYEAPCSANF-40.000000 Taitien TY VCTCXO 40MHz 2.8 V ~ 3.3 V

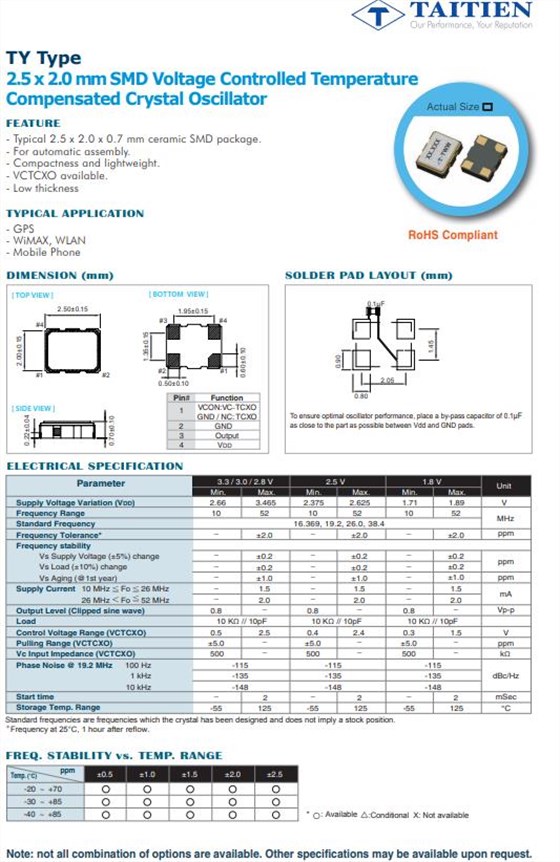

TYETBLSANF-38.400000是一款典型的2.5 x 2.0 x 0.7 mm陶瓷SMD封装的TCXO温补晶振,有源晶振,OSC晶振,具备高质量低抖动的特点,用于自动装配。-体积小、重量轻。VCTCXO可用。-厚度低,通过无铅认证.

应用程序:全球定位系统- WiMAX, WLAN-流动电话.
